USB, Ethernet, HDMI, Audio, Black, 18.20 x 22.20 x 8.50 cm, 1200 g
Key Features
- Supports single 5K and dual 4K UHD HDR @ 60 Hz video via two HDMI 2.0 ports
- Power Delivery 3.0 up to 65WDC
- 130WAC Power Adapter
- 1 USB 3.2 Gen 1 Type-C upstream facing port
- 1M USB-C detachable host cable (C/M to C/M) with (C/F to A/M) tethered adapter
- 1 USB 3.2 Gen 1 Type-C downstream facing port
- 3 USB 3.2 Gen 1 Type-A downstream facing ports
- 1 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out port

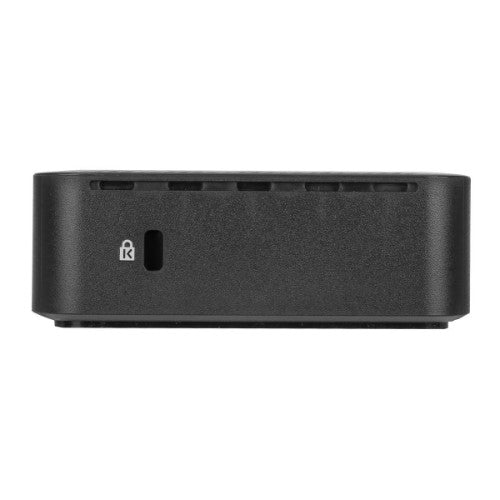

- Integrated lock slot accommodates standard security locks to safeguard equipment
Description
Create a convenient, productive workstation with the Universal USB-C DV4K Docking Station with 65W Power Delivery. Sleek and powerful this dock packs the necessary ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, including Windows, MacOS, Ubuntu, Android and Chrome.
Enjoy crisp, clear 4K video while supporting a connection up to two monitors. With two HDMI 2.0 ports, you’re able to support two monitors (3840x2160 p60). Plus connect all your favorite accessories with a combination of USB-A (3x USB 3.2 Gen 1 Type-A ports) and USB-C (1x 3.2 Gen 1 Type-C), plus Ethernet and audio ports.
Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2.0 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
65 W |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| HD type |
4K Ultra HD |
| VESA mounting |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
20 V |
| Output current |
5 A |
| Power supply |
100 W |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android |
| Weight & dimensions |
|---|
| Width |
222 mm |
| Depth |
182 mm |
| Height |
85 mm |
| Weight |
1.2 kg |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, USB Type-A to USB Type-C |
