2,4 GHz, 5 GHz, USB , LAN/WAN, 1.35 kg
Description

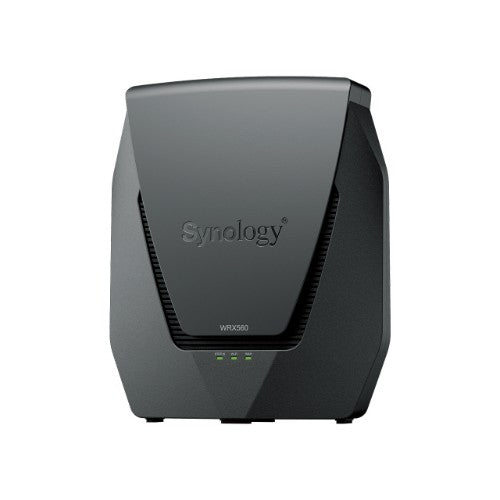

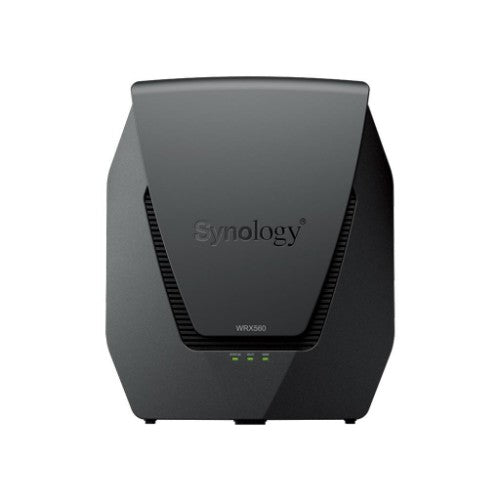

Synology WRX560 is a featured-packed high performance router designed for busy households and home offices. Take advantage of mesh network capability for seamless whole-house coverage. Support for 3 Gbps wireless speeds and up to 150 connected devices ensures fast, unterrupted internet connectivity, even in busy network environments. Powered by our constantly evolving Synology Router Manager OS, the WRX560 is designed to make securing and managing your network simple.
Specification:
•CPU Frequency: Quad core 1.4Ghz
•RAM : DDR4 512 MB
•LAN port : 3 x Gigabit LAN
•WAN port : Gigabit (RJ-45) x 1, 1 x 2.5Gbe configurable WAN/LAN
•External port : USB 3.2 x1 Gen1 (Type-A) (5V,1.5A power output)
•Wireless standards : IEEE 802.11 ac/n/a 5Ghz,IEEE 802.11 b/g/n 2.4Ghz,simultaneous dual-band
•Frequency and data rate:2.4Ghz: 600Mbps(256-QAM supported),5Ghz:4800Mbps
•Wireless security: WEP/WPA/WPA2-Persona
Specifications
| Ethernet LAN features |
|---|
| Ethernet WAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| DSL features |
|---|
| DSL WAN |
No |
| Mobile network |
|---|
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Protocols |
|---|
| DMZ support |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Performance |
|---|
| Processor frequency |
1.4 MHz |
| Built-in processor |
Yes |
| Internal memory |
512 MB |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2400 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) |
600 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Network |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Static route |
Yes |
| Policy-based routing |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA2-Enterprise, WPA3-Enterprise |
| DMZ support |
Yes |
| Design |
|---|
| LED indicators |
Power, WPS |
| Product colour |
Black |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Other features |
|---|
| Internal memory |
512 MB |
| Antenna |
|---|
| Antenna design |
Internal |
| Features |
|---|
| Processor frequency |
1.4 MHz |
| Built-in processor |
Yes |
| Internal memory |
512 MB |
| Internal memory type |
DDR4 |
| Number of simultaneously connected devices (max) |
150 |
| Power |
|---|
| Power source type |
AC |
| Power consumption (typical) |
10.8 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
233 mm |
| Weight |
1.35 kg |
| Height |
66 mm |
| Depth |
194 mm |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UKCA |
