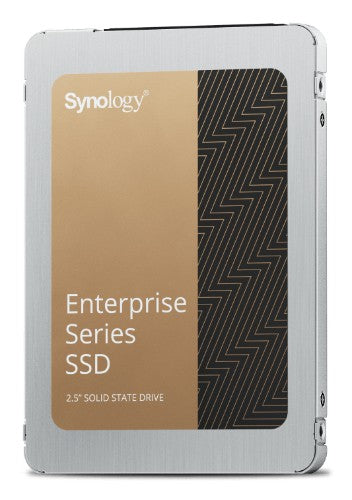

Synology SAT5221-960G internal solid state drive 960 GB 2.5" Serial ATA III

960 GB, 2.5", SATA 6 Gb/s, 500 MB/s read/write, 90k IOPS 4kb Read, 1700TB TBW, 0 - 70°C

Key Features

• Performance
• Endurance
• Analytics
• Updates

Description

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Stable high performance for demanding environments
Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.

Enterprise-grade endurance and reliability
Up to 10,000 TBW
Built to withstand 24/7 intensive workloads with endurance up to 10,000 TBW.

End-to-end data protection
Data integrity and consistency are safeguarded over the entire data transfer path.

Power loss protection circuit design
Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

Better analytics
Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.

Timely notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.

Optimal use
Easy monitoring allows you to make optimal use of each SSD.

One-click firmware upgrades
Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.

Purpose-built for Synology systems
Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.

Specifications

Features
Interface	Serial ATA III
Component for	NAS
SSD capacity	960 GB
NVMe	No
Sequential read speed (ATTO)	500 MB/s
Sequential write speed (ATTO)	500 MB/s
Data transfer rate	6 Gbit/s
Random read (4KB)	90000 IOPS
Random write (4KB)	30000 IOPS
Hardware encryption	No
TBW rating	1700
SSD form factor	2.5"
Power
Power consumption (write)	4 W
Power consumption (read)	3.5 W
Power consumption (idle)	1.2 W
Performance
Interface	Serial ATA III
Component for	NAS
SSD capacity	960 GB
NVMe	No
Sequential read speed (ATTO)	500 MB/s
Sequential write speed (ATTO)	500 MB/s
Data transfer rate	6 Gbit/s
Random read (4KB)	90000 IOPS
Random write (4KB)	30000 IOPS
Hardware encryption	No
TBW rating	1700
Design
SSD form factor	2.5"
Weight & dimensions
Width	69.8 mm
Depth	100 mm
Height	7 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
SSD form factor	2.5"
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)
