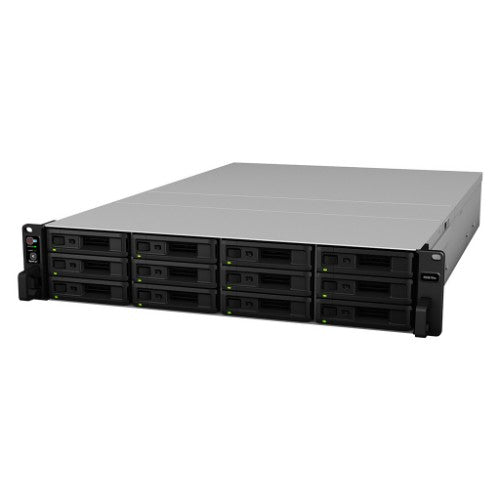

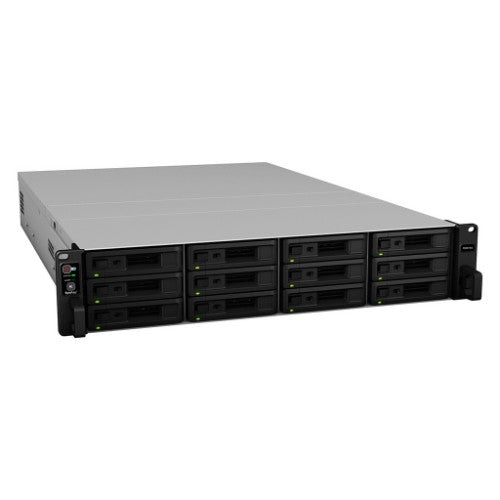

Synology RackStation RS3618xs NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 DiskStation Manager Black

RackStation RS3618xs, Intel Xeon D-1521 2.4 GHz, 8 GB DDR4, 12x 2.5/3.5" SATA HDD/SSD, 4x RJ-45 1GbE LAN, 2x USB 3.0, 2x Gen3 x8, 500 W PSU, 88x430.5x692 mm

Key Features

• quad-core up to 2.7GHz
• 8GB DDR4 ECC UDIMM, up to 64GB
• 4 x 1GbE port, optional 10GbE NIC support
• Up to 36 drives with RX1217/RX1217RP

Reasons To Buy

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Snapshot Replication

Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.

Virtual Machine Manager

Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.

Description

High-speed scalable storage server
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.

Ready for 10GbE and beyond
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.

Ultimate Backup Solution
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.

Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.

Active Backup for Office 365/ G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Maximum supported storage capacity	144 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, F1, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, Fat, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	Intel
Processor family	Intel® Xeon® D
ECC supported by processor	Yes
CPU configuration (max)	1
Thermal Design Power (TDP)	45 W
Stepping	V2
Scalability	1S
Processor threads	8
Processor socket	BGA 1667
Processor series	Intel Xeon D-1500
Processor package size	37.5 x 37.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Processor code	SR2DF
Processor cache	6 MB
Processor boost frequency	2.7 GHz
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 1x4, 1x8
Maximum internal memory supported by processor	128 GB
Conflict-Free processor	Yes
Processor ARK ID	91202
Processor model	D-1521
Processor frequency	2.4 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	8 GB
Memory clock speed	2133 MHz
Maximum RAM supported	64 GB
Memory slots	4
Network
Link aggregation	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	4
PCI Express x8 (Gen 3.x) slots	2
Design
Chassis type	Rack (2U)
Product colour	Black
Cooling type	Active
Number of fans	4 fan(s)
Fan diameter	8 cm
LED indicators	HDD, Power
Performance
System log	Yes
Share folder	CIFS/AFP/FTP
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Chrome, Firefox, Internet Explorer 10, Safari
Mac compatibility	Yes
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Number of users	16000 user(s)
Noise level	50.2 dB
Operating system installed	DiskStation Manager
Web-based management	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 7
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2
Software
Mac compatibility	Yes
Operating system installed	DiskStation Manager
Windows operating systems supported	Windows 10, Windows 7
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2
Power
Power consumption (HDD standby)	55.05 W
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
Number of power supply units	1
Power consumption (typical)	142.76 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	430.5 mm
Depth	692 mm
Height	88 mm
Weight	14.5 kg
Technical details
Harmonized System (HS) code	84714100
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Cables included	AC
Processor special features
Intel® OS Guard	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Secure Key Technology version	1.00
Intel Enhanced Halt State	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
UART	Yes
Thermal Monitoring Technologies	Yes
Maximum number of PCI Express lanes	32
Intel® Turbo Boost Technology	2.0
Intel® Secure Key	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM, DDR4-SDRAM
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C
Operating altitude	0 - 5000 m
Certificates
Certification	EAC, VCCI, CCC, RCM, FCC, CE, BSMI
Logistics data
Harmonized System (HS) code	84714100
Other features
Processor ARK ID	91202
Certification	EAC, VCCI, CCC, RCM, FCC, CE, BSMI
Compliance certificates	RoHS
