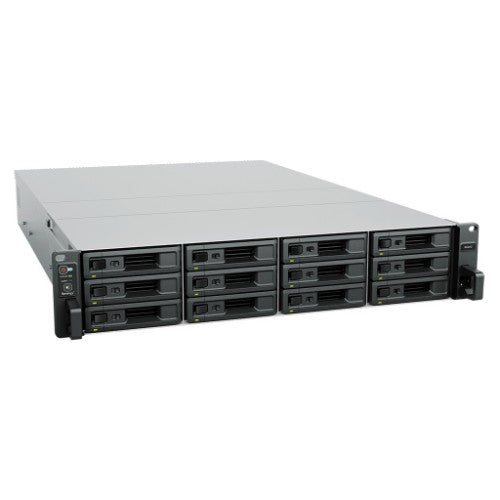

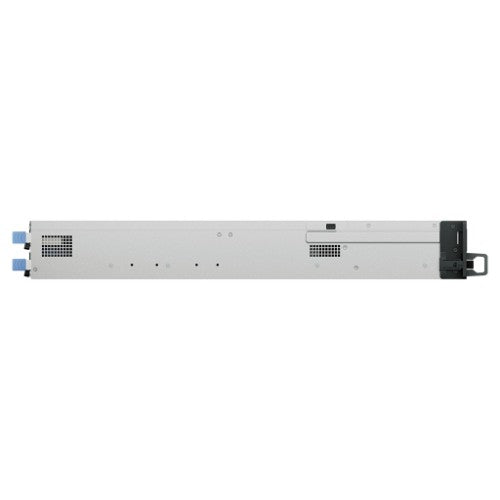

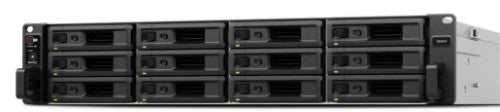

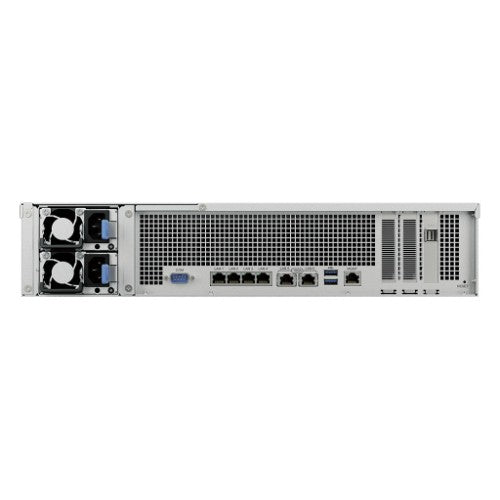

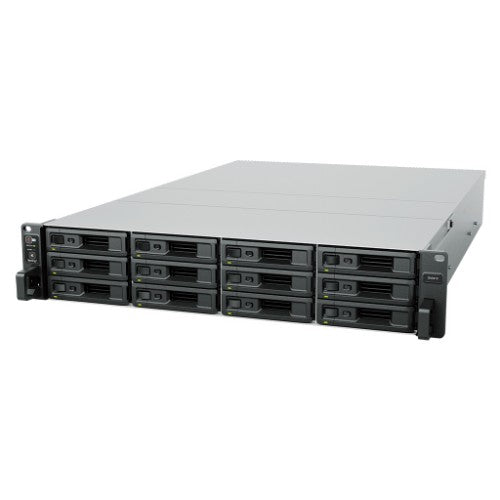

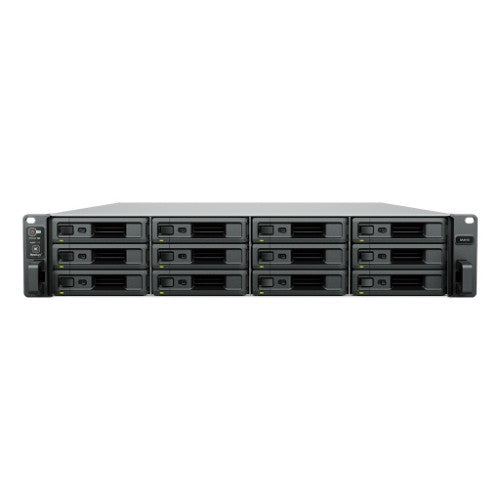

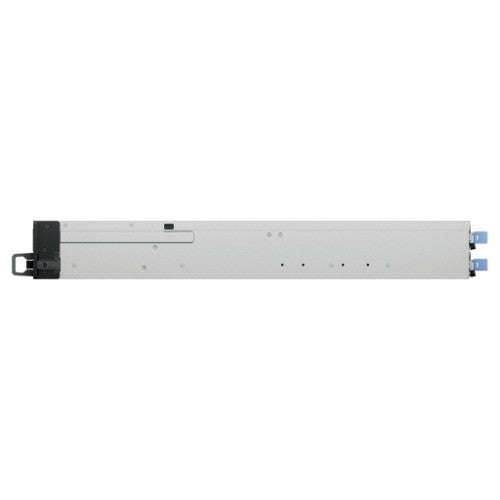

Synology SA SA3410, NAS, Rack (2U), Intel® Xeon®, D-1541, 16 GB, DDR4
Description
Synology SA SA3410. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon®, Processor model: D-1541, Processor frequency: 2.1 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Operating system installed: DiskStation Manager
Specifications
| Storage |
|---|
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
12 |
| Online RAID migration |
Yes |
| Online RAID expansion |
Yes |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10, F1, JBOD |
| Hot-swap drive bays |
Yes |
| Supported file systems |
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces |
Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive sizes supported |
2.5,3.5" |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Xeon® |
| CPU configuration (max) |
1 |
| Processor boost frequency |
2.7 GHz |
| Conflict-Free processor |
Yes |
| Processor model |
D-1541 |
| Processor frequency |
2.1 GHz |
| Processor cores |
8 |
| Number of processors supported |
1 |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
16 GB |
| Maximum RAM supported |
128 GB |
| Memory slots |
4 |
| Memory form factor |
RDIMM |
| ECC |
Yes |
| Network |
|---|
| Link aggregation |
Yes |
| Ethernet LAN data rate supported (max) |
10000 Mbit/s |
| Ethernet LAN |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
| iSCSI support |
Yes |
| Wake-on-LAN ready |
Yes |
| Supported network protocols |
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
7 |
| PCI Express x8 (Gen 3.x) slots |
2 |
| Serial ports quantity |
1 |
| Design |
|---|
| Chassis type |
Rack (2U) |
| Built-in speaker(s) |
No |
| Product colour |
Black, Grey |
| Cooling type |
Active |
| Number of fans |
4 fan(s) |
| Fan diameter |
8 cm |
| LED indicators |
Yes |
| Built-in display |
No |
| Performance |
|---|
| Built-in UPnP AV media server |
Yes |
| Built-in FTP server |
Yes |
| System log |
Yes |
| Browser supported |
Google Chrome Firefox Microsoft Edge Safari |
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Backup features |
Cloud, iSCSI LUN |
| Buzzer |
Yes |
| Multilingual support |
Yes |
| Noise level |
49.8 dB |
| Card reader integrated |
No |
| Operating system installed |
DiskStation Manager |
| Security algorithms |
AES |
| Reset button |
Yes |
| On/off switch |
Yes |
| Management protocols |
SNMP |
| Access Control List (ACL) |
Yes |
| Snapshot |
Yes |
| Software |
|---|
| Operating system installed |
DiskStation Manager |
| Power |
|---|
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
550 W |
| Number of power supply units |
1 |
| Redundant power supply (RPS) support |
No |
| Power consumption (typical) |
136.15 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 / 60 Hz |
| Weight & dimensions |
|---|
| Width |
482 mm |
| Depth |
724 mm |
| Height |
88 mm |
| Weight |
14.5 kg |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Packaging content |
|---|
| Cables included |
AC |
| Power cables quantity |
1 |
| Processor special features |
|---|
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI version |
1.00 |
| Intel TSX-NI |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel Enhanced Halt State |
Yes |
| Intel 64 |
Yes |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Certificates |
|---|
| Certification |
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL |
| Other features |
|---|
| Certification |
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL |
| Compliance certificates |
CE, RoHS |
