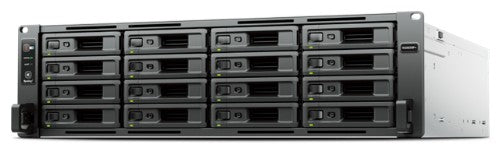

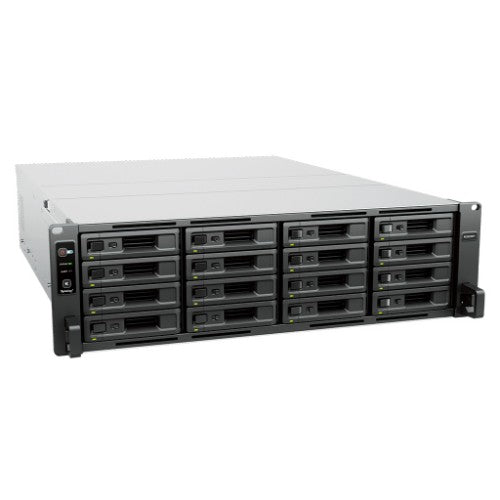

Synology RS2825RP+ 16 Bay NAS Rack (3U) V1780B 8 GB DDR4 Synology DSM Grey

AMD Ryzen V1780B, 8 GB DDR4 ECC UDIMM, 32 GB (16 GB x 2), 17.3 kg

Description

Built for reliability

Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.

High-availability

Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails

Network redundancy and load balancing

Built-in 1x 10GbE and 2x 1GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Specifications

Storage
Storage drives installed	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	28
Storage drive interface	Serial ATA
Processor
Processor manufacturer	AMD
Processor boost frequency	3.6 GHz
Processor model	V1780B
Processor frequency	3.35 GHz
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	32 GB
Memory slots	2
Memory form factor	SO-DIMM
ECC	No
Network
Ethernet LAN	Yes

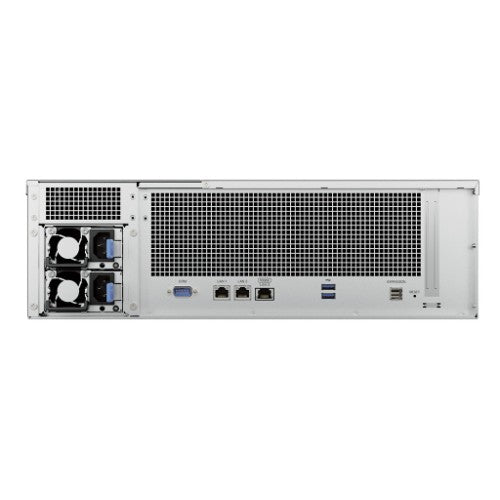

Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	3
Design
Chassis type	Rack (3U)
Product colour	Grey
Cooling type	Active
Number of fans	3 fan(s)
Fan diameter	8 cm
LED indicators	Alarm, Status
Performance
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud
Noise level	49.6 dB
Operating system installed	Synology DSM
Reset button	Yes
Software
Operating system installed	Synology DSM
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	482 mm
Depth	656.5 mm
Height	132.3 mm
Weight	17.3 kg
Technical details
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, UKCA, VCCI
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Other features
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, UKCA, VCCI
