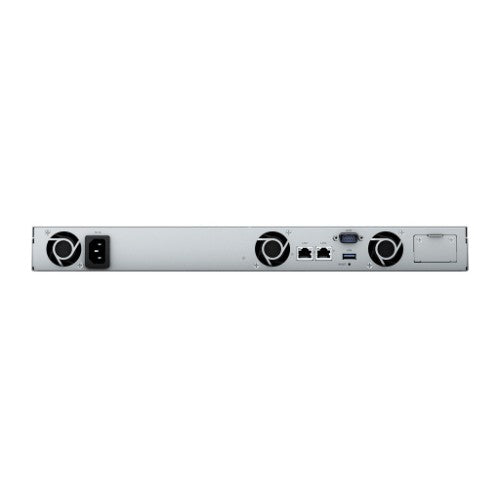

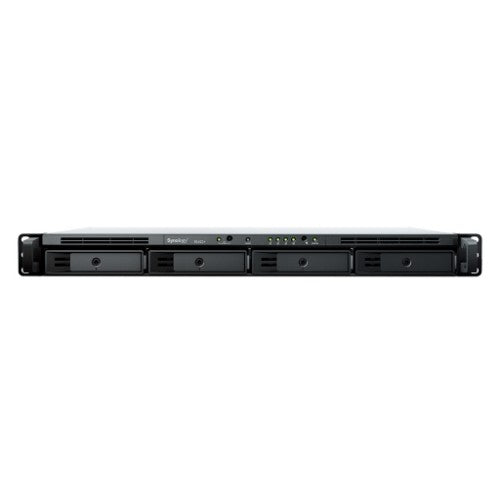

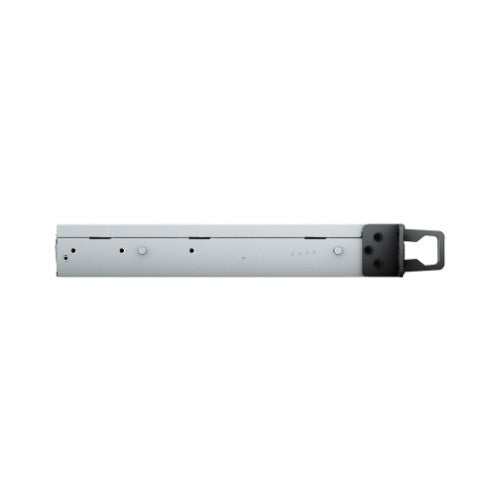

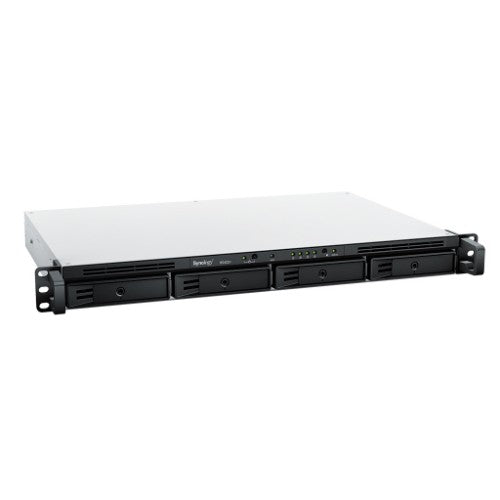

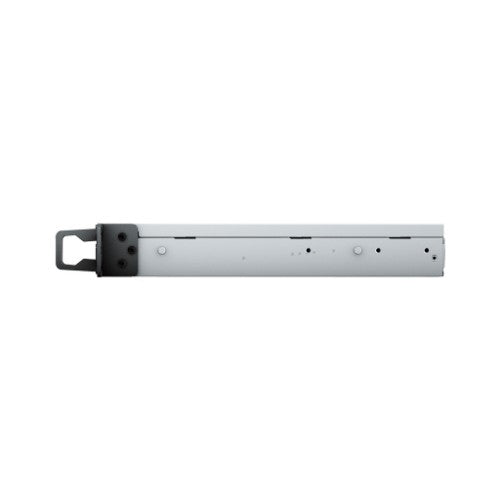

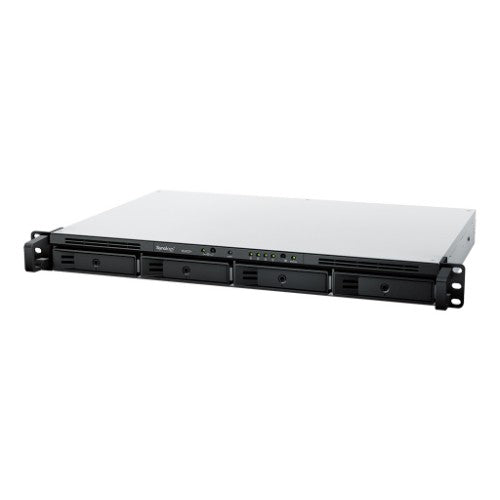

Synology RackStation RS422+ NAS/storage server Rack (1U) Ryzen Embedded R1600 2 GB DDR4 DSM Black

1U, 4x 2.5/3.5" SATA HDD, AMD Ryzen R1600 2.6 GHz, 2 GB DDR4 ECC, 2x 1GbE RJ-45, 1 x USB 3.2, 100-240V, 50/60 Hz, 44 x 430.5 x 295.5 mm, 4.38 kg

Key Features

• Performance
• 601/516 MB/s sequential read/write throughput1
• Form Factor
• Depth of just 327.5 mm with handles
• Connectivity
• Built-in dual 1GbE ports with easy 10GbE option
• File Integrity
• ECC memory prevents data corruption

Reasons To Buy

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Description

Streamline your data management

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.

Space-saving design for flexible deployment

Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.

Flexible networking options

Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.

Built-in connectivity

Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.

Easy upgrade to 10GbE

Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.

All-in-one data management platform

The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.

Edge storage for distributed teams

Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.

Multi-endpoint data protection

Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.

Smart surveillance for small deployments

Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

Works best with Synology drives

Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology systems and featuring built-in data protection.

Powered by Synology DSM

Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA
Storage drive sizes supported	2.5,3.5"
Processor
Processor generation	AMD Ryzen Embedded R1000 Series
Processor manufacturer	AMD
Processor family	Ryzen Embedded
Processor threads	4
Processor boost frequency	3.1 GHz
On-board graphics card model	Not available
Processor model	R1600
Processor frequency	2.6 GHz
Processor cores	2
Memory
Internal memory type	DDR4
Internal memory	2 GB
ECC	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP)
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
Expansion ports quantity	1
Graphics
On-board graphics card model	Not available
Design
Chassis type	Rack (1U)
Product colour	Black
Cooling type	Active
Number of fans	3 fan(s)
Fan diameter	4 cm
LED indicators	Yes
Performance
Share folder access right management	Yes
Share folder	1024
Browser supported	Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Number of users	2048 user(s)
Operating system installed	DSM
Operating system version	7.1
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Software
Operating system installed	DSM
Operating system version	7.1
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	430.5 mm
Depth	295.5 mm
Height	44 mm
Weight	4.38 kg
Technical details
Harmonized System (HS) code	84714100
Compliance certificates	RoHS
Packaging content
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	AC
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
Logistics data
Harmonized System (HS) code	84714100
Other features
I/O ports	Console Port
Compliance certificates	RoHS
