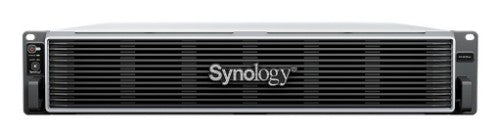

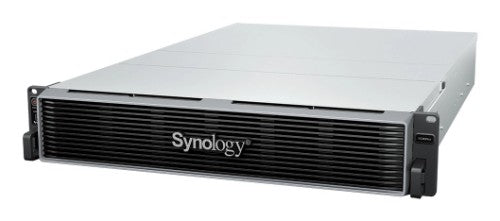

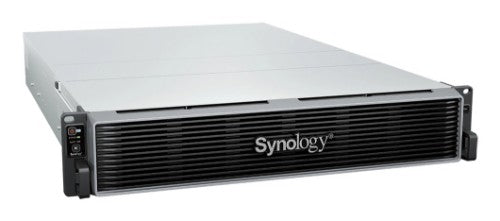

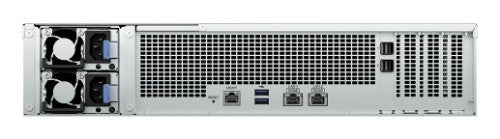

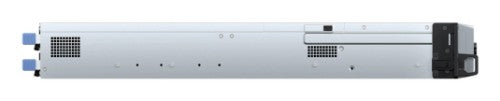

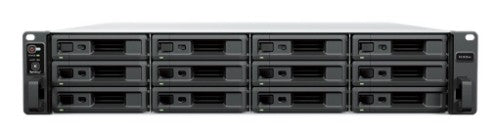

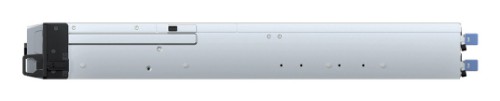

Synology RackStation RS3626xs NAS Rack (2U) Intel® Xeon® D D-1726 8 GB DDR4 0 TB DiskStation Manager Black

Intel Xeon D-1726, 6 cores, 2.9/3.5 GHz, 8 GB DDR4 ECC UDIMM, 12 drive bays, 2.5/3.5", HDD/SSD, 2x RJ-45 10GbE LAN, 2x USB 3.2 Gen 1, 2 x Gen4 x8, 2U, 38.8 dB, Black, 88 mm × 482 mm × 724 mm, 14.5kg

Key Features

• Fast and reliable
• Flexible configuration
• Versatile business application platform

Description

Fast and reliable
Over 6,300/3,700 MB/s seq. read/write2, built-in dual-port 10GbE, and up to 864 TB raw storage after expansion.

Flexible configuration
Add 24 extra drive bays, 10/25GbE ports, and SSD cache5 volumes whenever needed.

Versatile business application platform
Back up endpoints, manage up to 90 IP cameras, or safely sync and share files across sites.

Designed for reliability
Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.

Failover cluster
Maximize service continuity by pairing two identical units into a Synology High Availability cluster, ensuring automated, minute-level failover in the event of hardware failure.

Network redundancy and load balancing
Built-in 2x 10GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

Accommodates future expansion
The RS3626xs can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage.

Flexible networking options
Improve I/O performance or add redundancy with 10GbE/25GbE SFP+/SFP28, 1GbE/10GbE RJ-45 Ethernet, or Fibre Channel adapters.

SSD cache
Reduce latency and increase IOPS in HDD arrays with the performance boost of SSD caching.

Storage expansion
Expand up to 864 TB of raw storage using 36 drive bays with two RX1225RP expansion units.

Automated storage tiering
Synology Tiering automatically moves infrequently accessed data to cost-efficient tiers, balancing performance and capacity to optimize your storage ROI. The RS3626xs can be configured as either hot or cold storage, providing the flexibility to complement your existing hardware and infrastructure.

Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

A secure private cloud solution for enterprise collaboration

A private cloud suite for file sharing
Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.

Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Efficient multi-site synchronization

Cloud-powered multi-site syncing
Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

NAS-to-NAS synchronization
Automate site-to-site data synchronization for better team workflows. Options for one-way or two-way syncing keep files and folders up-to-date across every data site.

Sync to public cloud providers
Connect seamlessly to public cloud services including Amazon S3, BackBlaze B2, Dropbox, Google Cloud Storage, Microsoft Azure, and OpenStack Swift. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

Collaboration in a secure cloud, assisted by AI
Enhance workplace collaboration with Synology Office Suite. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership.9 Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. AI assistance enhances productivity across apps, with support for leading AI providers via API key integration.

Work smarter with AI
An all-in-one private cloud productivity AI solution with smart tools and privacy controls.

Comprehensive backup solutions

Endpoint, VM, and NAS/SAN protection
Securely back up a wide range of systems including Windows, Mac, and Linux endpoints, VMware® and Hyper-V® virtual machines, and Synology servers. Expand protection to physical servers running Windows or Linux, as well as storage solutions such as Nutanix Files, NetApp ONTAP, and Windows Server with VSS (Volume Shadow Copy Service). Built-in deduplication technology optimizes storage efficiency, while multi-versioning capabilities provide flexible restoration options.

Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and storage and bandwidth savings.
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and storage and bandwidth savings.

Advanced data protection and recovery

Efficient and reliable Synology system backup
Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage.8 In case of data loss, quickly restore complete systems through bare-metal recovery or retrieve individual files as needed. Advanced features including automated scheduling, granular access controls, end-to-end encryption, data deduplication, and multi-version retention empower you to create the optimal backup plan for your data deployment.

Tamper-proof protection with immutable snapshots
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.Learn more
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

Virtualization-ready
Seamless virtualization
Deploy with confidence. This system is fully certified for VMware® vSphere™, Microsoft® Hyper-V®, and XenServer environments.

Accelerated storage performance
Maximize efficiency with built-in support for Windows ODX, VMware VAAI, and ALUA, offloading storage operations to deliver lightning-fast performance.

Cloud-ready architecture
Seamlessly integrate into your existing cloud infrastructure with native OpenStack® Cinder support for block-based storage.

Surveillance

Synology Surveillance Station
Protecting your business has never been easier, with centralized management, support for over 17,000 IP camera models, and remote monitoring and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Open integration platform for surveillance
Connect third-party hardware, AI analytics, and specialized apps through open APIs. Our platform ensures seamless integration with your existing infrastructure, creating a flexible, future-ready security ecosystem.

Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight
Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Performance backed by Synology drives
Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.

Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Synology has you covered
The RS3626xs is backed by Synology's five-year limited warranty,11 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive capacity	0 GB
RAID support	Yes
RAID levels	F1, JBOD, 0, 1, 5, 10
Hot-swap drive bays	Yes
Supported file systems	BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Storage drive sizes supported	2.5,3.5"
Maximum number of drives (with expansion)	36
Processor
Processor manufacturer	Intel
Processor family	Intel® Xeon® D
Thermal Design Power (TDP)	70 W
Processor threads	12
Processor cache	10 MB
Processor boost frequency	3.5 GHz
Processor model	D-1726
Processor frequency	2.9 GHz
Processor cores	6
Number of processors installed	1
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	48 GB
Memory slots	6
Memory form factor	UDIMM
ECC	Yes
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wake-on-LAN ready	Yes
Wake-on-WAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
Expansion ports quantity	2
PCI Express x8 (Gen 4.x) slots	2
Design
Chassis type	Rack (2U)
Fan diameter 2	8 cm
Product colour	Black
Cooling type	Active
Number of fans	4 fan(s)
Fan diameter	8 cm
LED indicators	Power, Status, Alarm
Performance
Browser supported	Chrome Firefox Edge Safari
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Number of users	3300 user(s)
Noise level	38.8 dB
Operating system installed	DiskStation Manager
Reset button	Yes
On/off switch	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
Software
Operating system installed	DiskStation Manager
Power
Power consumption (HDD standby)	75.73 W
Power supply unit (PSU) capacity	550 W
Redundant power supply (RPS) support	Yes
Power consumption (typical)	147.79 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Number of phases	1
Weight & dimensions
Width	482 mm
Depth	724 mm
Height	88 mm
Weight	14.5 kg
Technical details
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	5 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, VCCI, UKCA, EAC, CCC, KC, BIS, UL, RoHS
Packaging content
Cables included	AC
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
Other features
Supported protocols	SMB AFP NFS FTP WebDAV Rsync
Size (imperial)	48.3 cm (19")
Expansion type	Mini-SAS HD
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	5 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, VCCI, UKCA, EAC, CCC, KC, BIS, UL, RoHS
