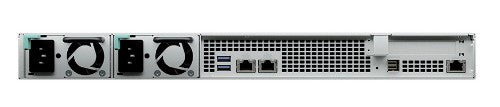

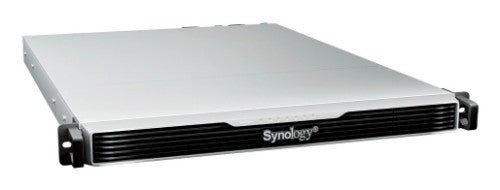

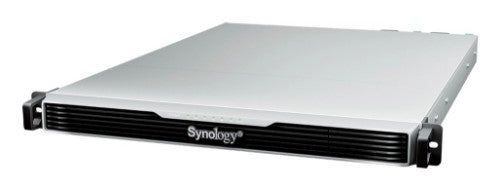

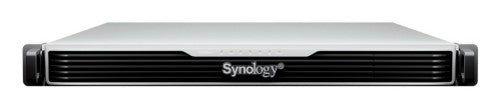

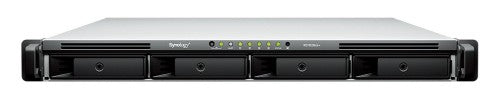

Synology RackStation RS1626XS+ NAS/storage server Rack (1U) Intel® Xeon® D D-1726 16 GB DDR4 0 TB DiskStation Manager Black

Intel Xeon D-1726, 64-bit, 2.9/3.5 GHz, 16 GB DDR4 ECC RDIMM, 2 x NVMe, 3.5" SATA HDD, 2.5" SATA SSD, M.2 2280 NVMe SSD, 2 x RJ-45 10GbE LAN, 2x USB 3.2 Gen 1, 1 x PCIe Gen4 x8, 1U, 4-post 19", Black, 44 × 481.9 × 668.5 mm, 9.5 kg

Key Features

• Fast and reliable
• Flexible configuration
• Versatile business application platform

Description

High-performance scalable storage for enterprise workloads

Designed for reliability
Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.

Failover cluster
Maximize service continuity by pairing two identical units into a Synology High Availability cluster, ensuring automated, minute-level failover in the event of hardware failure.

Network redundancy and load balancing
Built-in 2x 10GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Accommodates future expansion
The RS1626xs+ can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage.

Flexible networking options
Improve I/O performance or add redundancy with optional 10GbE or 25GbE SFP+/SFP28 and 10GbE Ethernet NICs, or Fibre Channel HBAs.

Built-in M.2 slots
Two integrated M.2 slots support NVMe SSD caching to reduce latency and improve IOPS in HDD arrays, without occupying PCIe expansion slots or front drive bays.

Storage expansion
Expand to 16 drive bays with RX1225RP expansion unit.

Automated storage tiering
Synology Tiering automatically moves infrequently accessed data to cost-efficient tiers, balancing performance and capacity to optimize your storage ROI. The RS1626xs+ can be configured as either hot or cold storage, providing the flexibility to complement your existing hardware and infrastructure.

Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

A secure private cloud solution for enterprise collaboration

A private cloud suite for file sharing
Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.

Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Efficient multi-site synchronization

Cloud-powered multi-site syncing
Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

NAS-to-NAS synchronization
Automate site-to-site data synchronization for better team workflows. Options for one-way or two-way syncing keeps files and folders up-to-date across every data site.

Sync to public cloud providers
Connect seamlessly to public cloud services including Amazon S3, BackBlaze B2, Dropbox, Google Cloud Storage, Microsoft Azure, and OpenStack Swift. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

Collaboration in a secure cloud, assisted by AI
Enhance workplace collaboration with Synology Office Suite. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership.9 Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. AI assistance enhances productivity across apps, with support for leading AI providers via API key integration.

Work smarter with AI
An all-in-one private cloud productivity AI solution with smart tools and privacy controls.

Comprehensive backup solutions

Endpoint, VM, and NAS/SAN protection
Securely back up a wide range of systems including Windows, Mac, and Linux endpoints, VMware® and Hyper-V® virtual machines, and Synology servers. Expand protection to physical servers running Windows or Linux, as well as storage solutions such as Nutanix Files, NetApp ONTAP, and Windows Server with VSS (Volume Shadow Copy Service). Built-in deduplication technology optimizes storage efficiency, while multi-versioning capabilities provide flexible restoration options.

Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and storage and bandwidth savings.

Advanced data protection and recovery
Efficient and reliable Synology system backup
Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage.8 In case of data loss, quickly restore complete systems through bare-metal recovery or retrieve individual files as needed. Advanced features including automated scheduling, granular access controls, end-to-end encryption, data deduplication, and multi-version retention empower you to create the optimal backup plan for your data deployment.

Tamper-proof protection with immutable snapshots
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

Surveillance
Synology Surveillance Station
Protecting your business has never been easier, with centralized management, support for over 17,000 IP camera models, and remote monitoring and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Open integration platform for surveillance
Connect third-party hardware, AI analytics, and specialized apps through open APIs. Our platform ensures seamless integration with your existing infrastructure, creating a flexible, future-ready security ecosystem.

Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight
Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Performance backed by Synology drives
Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.

Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Synology has you covered
The RS1626xs+ is backed by Synology's five-year limited warranty,11 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

Specifications

Storage
NVMe	Yes
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Storage drive interface	M.2, Serial ATA, Serial ATA II, Serial ATA III
Storage drive capacity	0 GB
RAID support	Yes
RAID levels	F1, JBOD, 0, 1, 5, 6, 10
Hot-swap drive bays	Yes
Supported file systems	ext4, BTRFS, ext3, FAT32, NTFS, HFS+, exFAT
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
Maximum number of drives (with expansion)	16
Processor
Processor manufacturer	Intel
Processor family	Intel® Xeon® D
Thermal Design Power (TDP)	70 W
Processor threads	12
Processor lithography	10 nm
Processor cache	10 MB
Processor boost frequency	3.5 GHz
Processor model	D-1726
Processor frequency	2.9 GHz
Processor cores	6
Number of processors installed	1
Memory
Internal memory type	DDR4
Internal memory	16 GB
Maximum RAM supported	64 GB
Memory slots	4
Memory form factor	RDIMM
ECC	Yes
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Wake-on-WAN ready	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	3
Remote management port	RJ-45 (Gigabit)
Expansion ports quantity	1
PCI Express x8 (Gen 4.x) slots	1
Design
Chassis type	Rack (1U)
Fan diameter 2	4 cm
Product colour	Black
Cooling type	Active
Number of fans	4 fan(s)
Fan diameter	4 cm
LED indicators	Power, Alarm, Status
Built-in display	No
Performance
Share folder	512
Browser supported	Chrome, Firefox, Edge, Safari
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Noise level	52.6 dB
Operating system installed	DiskStation Manager
Security algorithms	SSL/TLS, SSH, HTTPS
Reset button	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
Software
Operating system installed	DiskStation Manager
Power
Power consumption (HDD standby)	56.19 W
Power supply unit (PSU) capacity	250 W
Redundant power supply (RPS) support	Yes
Power consumption (typical)	97.59 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Number of phases	1
Weight & dimensions
Width	481.9 mm
Depth	668.5 mm
Height	44 mm
Weight	9.5 kg
Technical details
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	5 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS
Packaging content
Cables included	Power
Power cables quantity	2
Features
Product languages	Multi
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
Other features
Supported protocols	SMB AFP NFS FTP WebDAV Rsync
Size (imperial)	48.3 cm (19")
Security features	Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite
Expansion description	Mini-SAS HD
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	5 year(s)
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS
