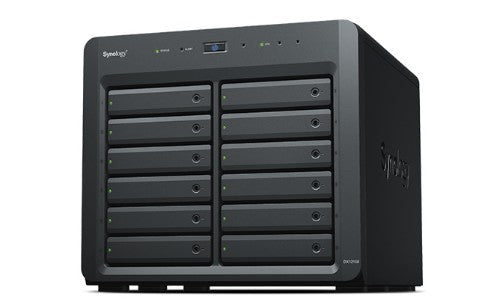

Synology DX1215II storage drive enclosure HDD/SSD enclosure Black 2.5/3.5"

12x 2.5/3.5" SATA HDD/SSD, 100-240V AC, 270x300x340 mm

Description

Easily add 12 bays to your DiskStation
With its 12-bay desktop form factor, the DX1215II provides generous storage expansion for Synology DiskStation1 whenever needed with minimal impact on the deployment footprint.

Online volume and storage expansion
Add a new volume to your storage, or seamlessly expand RAID volumes on Synology DiskStation without reformatting drives with online volume expansion through DiskStation Manager (DSM) to minimize service disruptions.

Expand DiskStation with Synology drives
Developed in tandem with Synology storage systems, Synology enterprise storage drives deliver proven interoperability and high reliability through rigorous validation and compatibility testing.

Simple setup and management
Plug-and-play design makes adding the DX1215II to an existing DiskStation simple. Unified drive management through DSM ensures health monitoring, storage allocation, and maintenance tasks are centralized and easily accessible to administrators.

Specifications

Storage
Number of storage drives supported	12
Storage drive size	2.5/3.5"
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Maximum storage capacity	192 TB
Hot-swap	Yes
Ports & interfaces
USB connectivity	No
Design
Product type	HDD/SSD enclosure
Compatible products	Synology FS1018, DS2419+, DS2419+II, DS3018xs, DS3617xs, DS3617xsII, DS3615xs, DS2415+, DS2015xs, DS2413+, DS3612xs, DS3611xs, DS2411+
Number of fans	2 fan(s)
Fan diameter	12 cm
Product colour	Black
Certification	FCC CE BSMI EAC RCM KC
Performance
Noise level	27.2 dB
Technical details
Maximum storage capacity	192 TB
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Power
Power source type	AC
AC adapter input voltage	100-240 V
AC adapter frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	9.02 kg
Width	300 mm
Depth	340 mm
Height	270 mm
Logistics data
Harmonized System (HS) code	84733080
