Intel Celeron J3355, 2.5 GHz, 2 GB DDR3L, HDD, SSD, Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT, 1.4 kg, 20.5 dB
Key Features
- Mini-sized yet powerful 6-bay NAS, ready to
- maximize your work productivity
- 6 drive bays with better RAID flexibility to configure
- 2.5” HDDs and SSDs
- 2GB DDR3L memory, expandable up to 6GB
- Over 220 MB/s reading and 190 MB/s writing even
- under encrypted data transmission1
- Dual-channel H.265/H.264 4K video transcoding on the fly2
- Advanced Btrfs file system, offering 65,000 systemwide snapshots and 1,024 snapshots per shared folder
- Anywhere access with iOS and Android ready mobile apps
Reasons To Buy
File Server/Management
Powerful built-in file management and sharing services.
Snapshot Replication
Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.
Multimedia
Complete multimedia solution for management, streaming, and playback.
Description

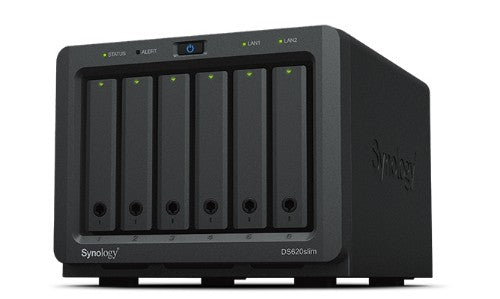

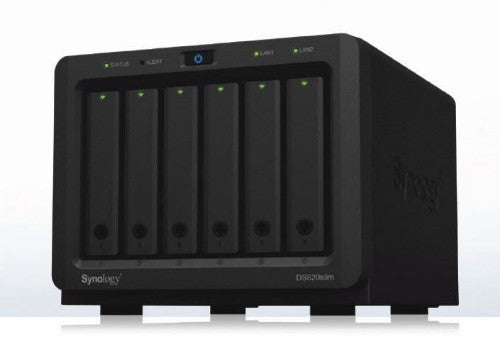

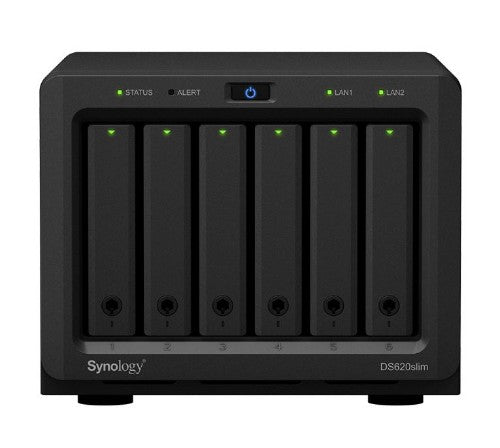

Mini Private Server Combining Performance and StyleDS620slim is a mini 6-bay NAS with a stylish chassis design, perfectly blending in modern workplaces or apartments. Supporting near-instantaneous snapshot technology and real-time 4K video transcoding, DS620slim is an all-around file management solution that fulfills professionals’ needs of advanced data protection and high-quality media streaming.
Remain classic while shrinking footprintThe mini 6-bay design keeps DS620slim classic and saves deployment space. With six 2.5" drive support, DS620slim is able to boost performance by installing SSDs.
Compact DesignMini design with the dimensions of 121 x 151 x 175 mm, flexible to fit in anywhere
RAID FlexibilityFlexible in a variety of RAID configurations to realize maximum 30TB raw capacity or better data protection with RAID 5/6/10
SSD Cache SupportFurther enhance storage performance with SSD read/write cache while still having abundant drive bays for data storage
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Learn more about the benefits of using Btrfs
Ultimate file management and sharingFile Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS620slim supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.
Synchronize files across your devicesCloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space.
4K Multimedia ServerAccess and stream your 4K media content anytime and anywhere. DS620slim supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on the fly on other computers, smartphones, and media players that originally do not support Ultra HD formats.
Specifications
| Storage |
|---|
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Number of storage drives installed |
0 |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
6 |
| Maximum supported storage capacity |
108 TB |
| Storage drive capacity |
0 GB |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays |
Yes |
| Supported file systems |
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Celeron® |
| CPU configuration (max) |
1 |
| Tjunction |
105 °C |
| Thermal Design Power (TDP) |
10 W |
| System bus rate |
5 GT/s |
| Stepping |
B1 |
| Processor threads |
2 |
| Processor socket |
BGA 1296 |
| Processor package size |
24 x 31 mm |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor codename |
Apollo Lake |
| Processor code |
SR2Z8 |
| Processor cache type |
Smart Cache |
| Processor cache |
2 MB |
| Processor boost frequency |
2.5 GHz |
| PCI Express slots version |
2.0 |
| PCI Express configurations |
1x2+2x1, 4x1 |
| On-board graphics card model |
Intel® HD Graphics 500 |
| Maximum internal memory supported by processor |
8 GB |
| Conflict-Free processor |
Yes |
| Processor ARK ID |
95597 |
| Processor model |
J3355 |
| Processor frequency |
2 GHz |
| Processor cores |
2 |
| Memory |
|---|
| Internal memory type |
DDR3L |
| Internal memory |
2 GB |
| Maximum RAM supported |
6 GB |
| Memory slots |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
No |
| iSCSI support |
Yes |
| Wake-on-LAN ready |
Yes |
| Supported network protocols |
CIFS, AFP, NFS, FTP, WebDAV |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
0 |
| Fiber ports quantity |
0 |
| Graphics |
|---|
| On-board graphics card model |
Intel® HD Graphics 500 |
| On-board graphics card burst frequency |
700 MHz |
| On-board graphics card base frequency |
250 MHz |
| Maximum on-board graphics card memory |
8 GB |
| Number of displays supported (on-board graphics) |
3 |
| Design |
|---|
| Chassis type |
Desktop |
| Product colour |
Black |
| Cooling type |
Active |
| Number of fans |
1 fan(s) |
| Fan diameter |
8 cm |
| LED indicators |
Yes |
| Performance |
|---|
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Multilingual support |
Yes |
| Number of users |
1000 user(s) |
| Noise level |
20.5 dB |
| Operating system installed |
DiskStation Manager |
| Software |
|---|
| Operating system installed |
DiskStation Manager |
| Power |
|---|
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
65 W |
| Number of power supply units |
1 |
| Power consumption (typical) |
34.88 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Width |
151 mm |
| Depth |
175 mm |
| Height |
121 mm |
| Weight |
1.4 kg |
| Technical details |
|---|
| Harmonized System (HS) code |
84714100 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Processor special features |
|---|
| Intel® Quick Sync Video Technology |
Yes |
| Intel® OS Guard |
No |
| Intel® InTru™ 3D Technology |
No |
| Intel® Insider™ |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® High Definition Audio (Intel® HD Audio) |
Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Anti-Theft Technology (Intel® AT) |
No |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Trusted Execution Technology |
No |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Smart Response Technology version |
0.00 |
| Intel Smart Connect Technology version |
0.00 |
| Intel Smart Connect Technology |
No |
| Intel Small Business Advantage (SBA) version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Secure Boot Technology version |
1.00 |
| Intel Secure Boot |
Yes |
| Intel Rapid Storage Technology |
No |
| Intel Identity Protection Technology version |
1.00 |
| Intel Enhanced Halt State |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel 64 |
Yes |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
Yes |
| UART |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Number of execution units |
12 |
| Maximum number of PCI Express lanes |
6 |
| Intel® Wireless Display (Intel® WiDi) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel® Smart Response Technology |
No |
| Intel® Small Business Advantage (Intel® SBA) |
No |
| Intel® Secure Key |
Yes |
| Memory types supported by processor |
DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84714100 |
| Other features |
|---|
| Processor ARK ID |
95597 |
