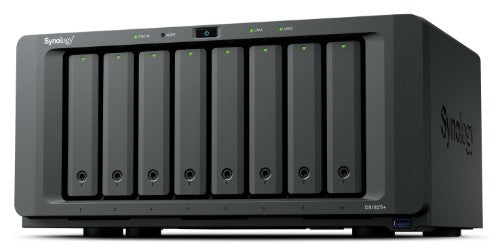

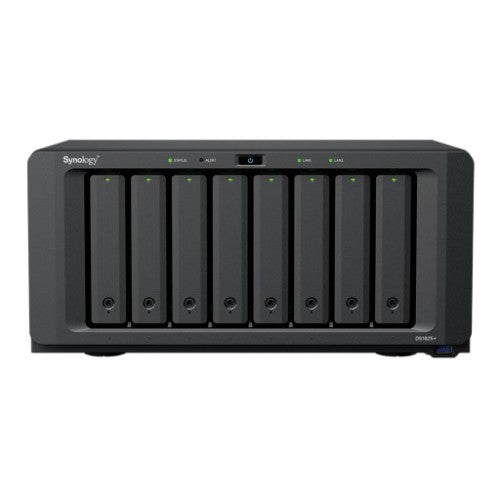

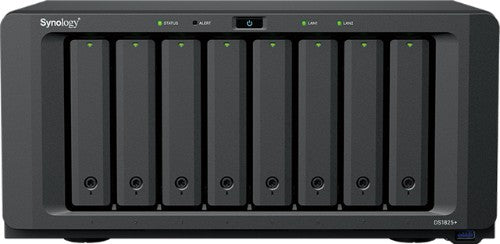

DiskStation DS1825+ High-capacity & versatile storage solution in a desktop form factor
Key Features
- Dependable Performance
- Up to 2,239/1,573 MB/s sequential read/write throughput1 supports officewide applications
- Fast and Flexible Networking
- Built-in 2.5GbE ports, supports 10GbE SFP/RJ-45 and 25GbE SFP28 adapter cards
- Simple Expansion
- Scale up on demand to with two DX525 expansion units3 for up to 18 drive bays and 360 TB of raw storage
- Comprehensive Backups
- Protect your IT infrastructure with licensefree solutions for backup, replication, and recovery
- Long-Term Support
Description
Fast, out-of-the-box performance with 25GbE supportThe DS1825+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.1,6 Its support for expansion cards allows configuration flexibility, supporting faster networking of up to 25GbE.4
Specifications
| Storage |
|---|
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Number of storage drives installed |
0 |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
18 |
| Maximum supported storage capacity |
360 TB |
| Storage drive capacity |
0 GB |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays |
Yes |
| Supported file systems |
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces |
M.2, Serial ATA |
| Storage drive sizes supported |
3.5,M.2,2.5 |
| Number of M.2 (M & B) slots |
2 |
| Processor |
|---|
| Processor generation |
AMD Ryzen Embedded V1000 Series |
| Processor manufacturer |
AMD |
| Processor family |
Ryzen Embedded |
| Processor threads |
8 |
| Processor model |
V1500B |
| Processor frequency |
2.2 GHz |
| Processor cores |
4 |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
8 GB |
| Maximum RAM supported |
32 GB |
| Memory slots |
2 |
| Memory form factor |
SO-DIMM |
| ECC |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| Fan diameter 2 |
12 cm |
| Product colour |
Black |
| Cooling type |
Active |
| Number of fans |
2 fan(s) |
| Fan diameter |
12 cm |
| Drive bay locking |
Yes |
| LED indicators |
Yes |
| Performance |
|---|
| System log |
Yes |
| Type |
NAS |
| Device class |
Home & Home Office |
| Backup function |
Yes |
| Backup features |
Cloud, iSCSI LUN |
| Multilingual support |
Yes |
| Number of users |
1024 user(s) |
| Noise level |
23.8 dB |
| Web-based management |
Yes |
| On/off switch |
Yes |
| Access Control List (ACL) |
Yes |
| Snapshot |
Yes |
| Power |
|---|
| Power consumption (HDD standby) |
18.34 W |
| Power supply location |
External |
| Power supply unit (PSU) capacity |
250 W |
| Power consumption (typical) |
60.1 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Width |
343 mm |
| Depth |
243 mm |
| Height |
166 mm |
| Weight |
6 kg |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| External power adapter |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Power cables quantity |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Other features |
|---|
| Warranty period |
3 year(s) |
| Compliance certificates |
RoHS |
