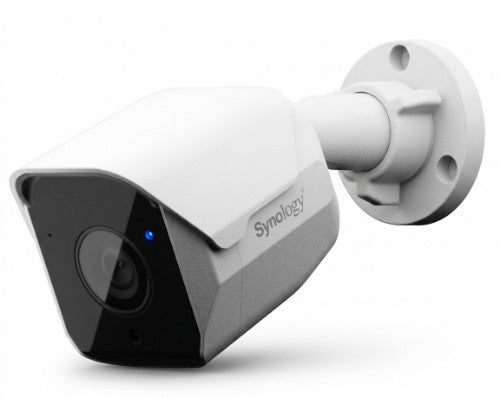

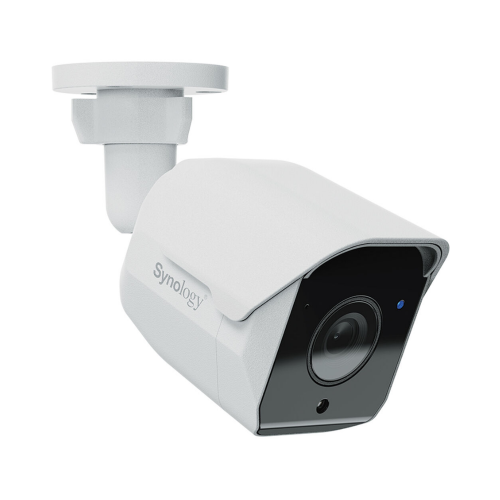

Synology BC510 AI-powered bullet camera

5MP, 1/2.7", 2880x1620, 2.8 mm, F1.8, 30m IR, 0.001lux, Bullet, 110° FOV, DC/PoE, 4.8W, HDR, RJ45, IP66/IP67, White, Ø110 × 161 mm, 353g

Description

Consistently clear footage, 24/7

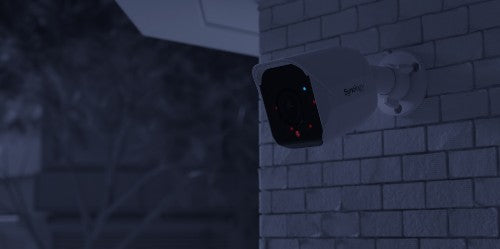

Around the clock surveillance
See clearly at night with four high-power IR LEDs that provide 30 meters of night vision range.

Detailed video recordings in all lighting conditions
Ensure security despite high contrast light conditions with High Dynamic Range (HDR), which provides detailed images in both shadows and bright spots.

High quality video, increased storage efficiency
Smart Bitrate Control provides high-quality video while reducing storage and network requirements by up to 70%.

Effortless setup and access from anywhere
Hassle-free setup and on-the-go access. Perfectly scalable for any business size.

Surveillance Station
Host video locally on Surveillance Station for full data control.

Seamless setup and auto updates
Easy setup, auto updates, seamless monitoring on Surveillance Station or DS cam.

Full-fledge centralized management
Manage up to 3,000 locations and view 30,000 camera feeds from a single interface.

Built for reliable deployment
Synology’s hardware-software integration empowers robust storage and backup, delivering a reliable surveillance environment.

Enhance your surveillance with camera-based AI
Be proactive with surveillance. AI features empower security staff to watch over multiple locations more efficiently.

Robust security withy AI capabilities

People and Vehicle Detection
Protect against loitering and boost security with cameras that leverage AI to distinguish people and vehicles from other moving objects with high accuracy.

Intrusion Detection
Identify trespassers without maintaining dedicated staff on site. Draw virtual borders to automatically receive alerts when people or vehicles cross.

Instant Search
Investigate incidents quickly after they happen. Instant Search lets operators search for activities of interest within a certain area.

Auto Tracking
Auto Tracking seamlessly locks onto and trails the moving target, ensuring continuous centering on the screen.

People & Vehicle Counting
Gauge occupancy levels with aggregated counting of people and vehicles entering and leaving your premises, with automatic alerts when capacity is reached.

Maximizing AI capabilities with Synology DVA
Pair with Synology DVA models for more intelligent analytics, such as Face Recognition and License Plate Recognition.

Enhancing security without sacrificing privacy
From recording to archiving, protect your footage with our integrated safeguards.

Edge storage to increase system reliability
In case of network failure, these cameras can failover to a MicroSD card, increasing system reliability and ensuring continuous recording.

Privacy masking and watermarks
Conceal sensitive areas from being recorded and directly watermark live feeds to deter and track unauthorized recordings.

HTTPS and SRTP support
Encrypt your video streams to ensure the security and privacy of your transfers.

NDAA compliance
The CC400W camera meets US government procurement regulations.

Stay in the know with DS cam
DS cam is the powerful companion mobile app for Surveillance Station, available for free on iOS and Android.

Easily stay on top of security
Receive notifications sent to your phone the moment events are triggered. Quickly review the events of the day with a few taps.

See the action live
Watch up to 6 live feeds at the same time. If an event catches your eye, take a snapshot for a closer look.

Define detection zones
Select specific areas to monitor for accurate and relevant alerts.

Specifications

Performance
Languages support	Multi
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Auto-tracking	Yes
Day/night mode	Yes
Certification	JATE
Design
Country of origin	Taiwan
Form factor	Bullet
Product colour	White
Mounting type	Ceiling/wall
Protection features	Waterproof, Dustproof
LED indicators	Status
International Protection (IP) code	IP66, IP67
Camera
Minimum illumination	0.001 lx
Camera shutter speed	1/16000 - 1/30 s
Lens viewing angle, horizontal	110°
Lens viewing angle, vertical	56°
Lens viewing angle, diagonal	132°
Number of Privacy masking areas	5
Image sensor
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Lens system
Number of lenses	1
Maximum aperture number	1.8
Fixed focus	Yes
Detect distance	60 m
Observe distance	24 m
Recognize distance	12 m
Identify distance	6 m
Fixed focal length	2.8 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Flip & mirror	Yes
Bit rate	8192 kbps
Noise reduction technology	2D noise reduction, 3D noise reduction
Maximum resolution	2880 x 1620 pixels
Video formats supported	H.264, H.265
Supported graphics resolutions	2880 x 1620
Supported video modes	1620p
Frame rate	30 fps
Total megapixels	5 MP
Audio
Voice codecs	G.711
Built-in microphone	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	HTTP, HTTPS, TLS v1.2, TCP/IP, UDP, IPv4, UPnP, RTSP, NTP, DHCP, SSL, RTP, SRTP
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Privacy protection	Yes
Intelligent Video Surveillance (IVS) system features	Human detection, Vehicle detection, Intrusion, People counting
Video motion detection	Yes
Management features
Reset button	Yes
Power
Power source type	DC, PoE
Power consumption (typical)	4.8 W
DC output voltage	12
DC output current	1 A
Certificates
Certification	JATE
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Diameter	11 cm
Length	161 mm
Weight	353 g
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Sustainability
Compliance certificates	CE, Federal Communications Commission (FCC), CB, Industry Canada (IC), UKCA, BSMI, VCCI, RCM, KC, RoHS, REACH, National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
Packaging content
Number of cameras	1
Screws included	Yes
Quick installation guide	Yes
Memory card included	No
Packaging content	RJ45 cap cover
Technical details
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), CB, Industry Canada (IC), UKCA, BSMI, VCCI, RCM, KC, RoHS, REACH, National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
Other features
Browser supported	Google Chrome
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	3 year(s)
