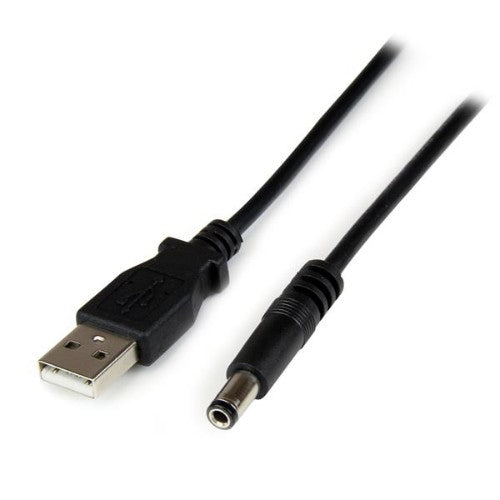

StarTech 1m USB to Type N Barrel 5V DC Power Cable - USB A to 5.5mm DC - 1 Meter USB to 5.5mm DC Plug (USB2TYPEN1M)
Key Features

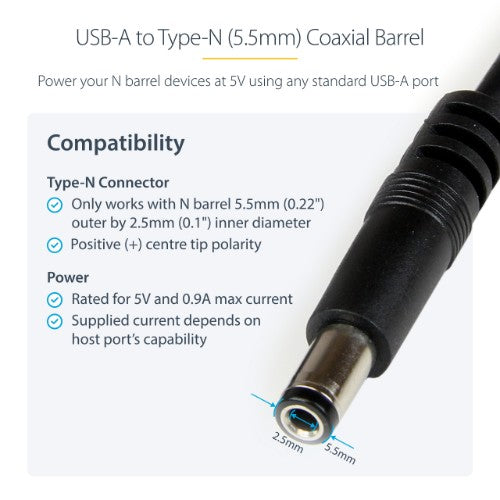

- USB-A TO PLUG TYPE-N: 3.3ft (1m) USB-A to Type M (5.5mm outer diameter, 2.5mm inner diameter, center pin positive) coaxial barrel connector cable; This power cable can be used to power any N barrel device at 5V from a standard USB supplying up to 0.9A
- COMPATIBILITY: Only works with N barrel connections measuring 5.5 OD by 2.5 ID with a positive center pin; The connected device must use 5V, and a max current of 0.9A; Current supplied is determined by the USB port this cable is plugged into
- DURABLE: This type-N coaxial power barrel connector (fully molded) with durable PVC jacket for high strength and reliability; Flexible PVC strain relief prevents fraying/damage due to repetitive bending or rough usage
- SPECS: 3.3ft (1m); USB-A; Type N coaxial power (Barrel Power Connector OD:5.50, ID: 2.50); Jacket: PVC; 5V at up to 0.9A supplied by a USB port; Aluminum-mylar foil with braided shielding
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to Type M 5.5MM power cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Power your 5V DC devices from your computer through a USB port
Tired of having to carry around a separate wall adapter in order to power or charge your 5V devices, such as certain external hard drives, streaming media players, and Bluetooth® speakers?
This 1m USB power cable makes it easier to power 5V DC devices that have a Type N (OD: 5.5mm, ID:2.5mm) barrel power connector. You can power or charge the devices through an available USB port on your laptop or desktop computer.
Expertly designed and constructed of high-quality materials, the StarTech.com USB2TYPEN1M power cable is backed by our lifetime warranty.
Specifications
| Features |
|---|
| Cable shielding |
Aluminum mylar foil |
| AWG wire size |
28 |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector 1 |
USB A |
| Connector 2 |
Barrel type N |
| Connector contacts plating |
Nickel |
| Connector angle |
90° |
| Cable length |
1 m |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
15 mm |
| Depth |
1000 mm |
| Height |
8 mm |
| Diameter |
5.5 mm |
| Weight |
27 g |
| Package width |
125 mm |
| Package depth |
148 mm |
| Package height |
14 mm |
| Package weight |
34 g |
| Packaging data |
|---|
| Package width |
125 mm |
| Package depth |
148 mm |
| Package height |
14 mm |
| Package weight |
34 g |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
300 pc(s) |
| Master (outer) case width |
340 mm |
| Master (outer) case length |
390 mm |
| Master (outer) case height |
310 mm |
| Harmonized System (HS) code |
84733080 |
