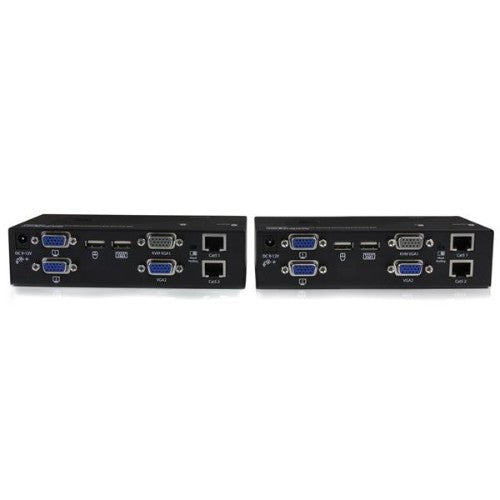

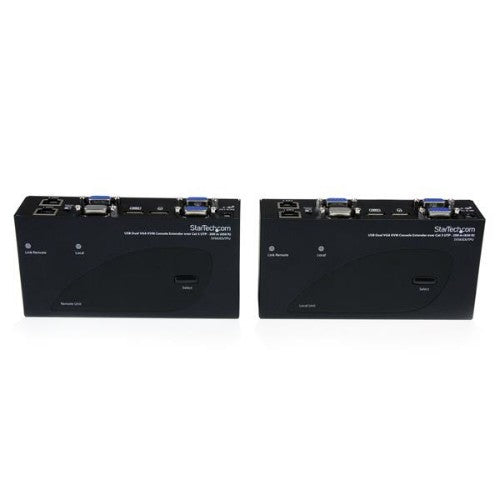

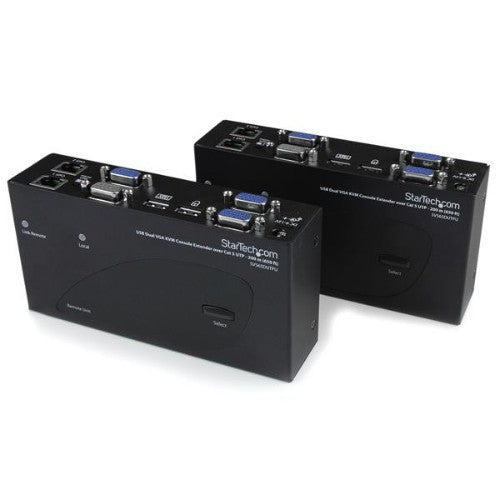

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m - TAA

StarTech 650 ft/200m USB 2.0 Dual VGA KVM Console Extender over Cat5 UTP -for Dual VGA, USB-enabled PC or KVM Switch - Upto 1920x1200 , TAA (SV565DUTPU)

Key Features

• Dual VGA KVM extender at 1920x1200 resolution
• Can be used with a single computer or connected to an existing KVM switch
• Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
• KVM console connections available on both the local and remote end
• Supports most combo keyboard and mouse sets (including Wireless)
• Intuitive hot-key commands for fine-tuning video

Description

Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Specifications

Technical details
Maximum transfer distance	200 m
Product colour	Black
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Ports & interfaces
VGA (D-Sub) ports quantity	4
USB 2.0 ports quantity	12
RJ-45 ports quantity	2
DC-in jack	Yes
Weight & dimensions
Package width	237 mm
Package depth	366 mm
Package height	77 mm
Package weight	2.25 kg
Width	80 mm
Depth	155 mm
Height	40 mm
Weight	535 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Colour
Product colour	Black
Packaging content
Manual	Yes
Cables included	AC, KVM
Logistics data
Master (outer) case width	394 mm
Master (outer) case length	494 mm
Master (outer) case height	274 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	84733020
