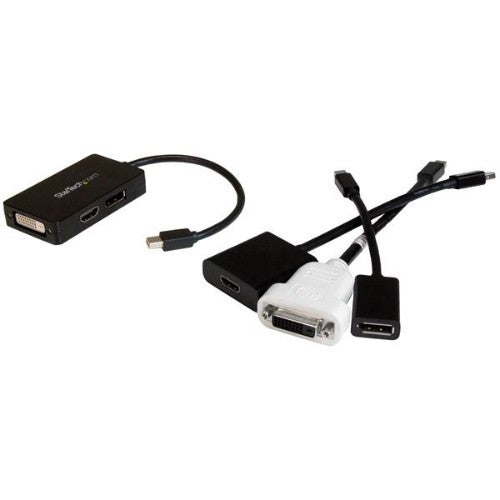

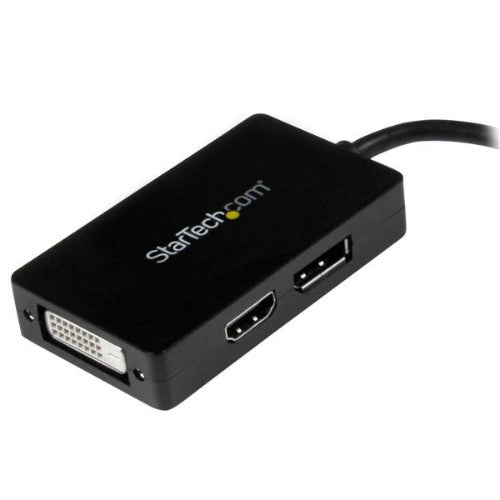

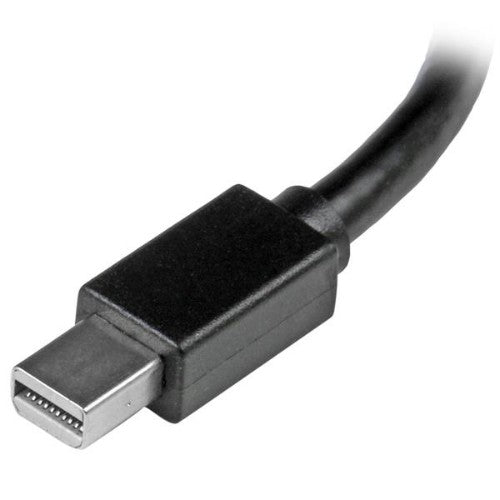

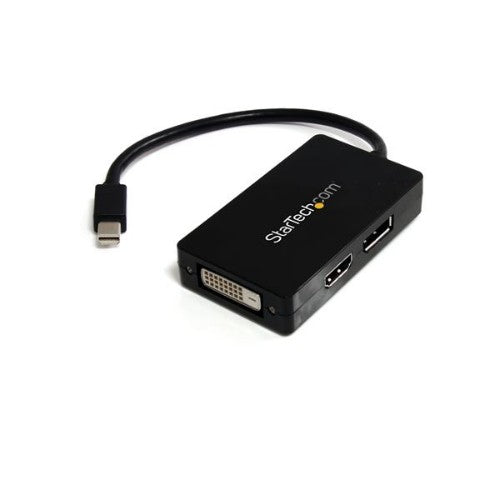

StarTech Travel A/V adapter - 3-in-1 Mini DisplayPort to DisplayPort DVI or HDMI converter (MDP2DPDVHD)
Key Features
- Adapt Mini DisplayPort to DisplayPort, HDMI or DVI
- Supports resolutions up to 2560x1600 using DisplayPort, 1920x1200 using HDMI/DVI
- No software/drivers required
- Compact design
- Compatible with Intel® Thunderbolt™
Description
Connect your mini DisplayPort® Device to a DisplayPort®, HDMI®or DVI Display, with this Compact, All-in-One Adapter
The MDP2DPDVHD mini DisplayPort® to DisplayPort®, DVI or HDMI® Multifunction Adapter converts a mini DisplayPort (mDP®) input to DisplayPort, DVI or HDMI output signals - all in a single compact adapter.

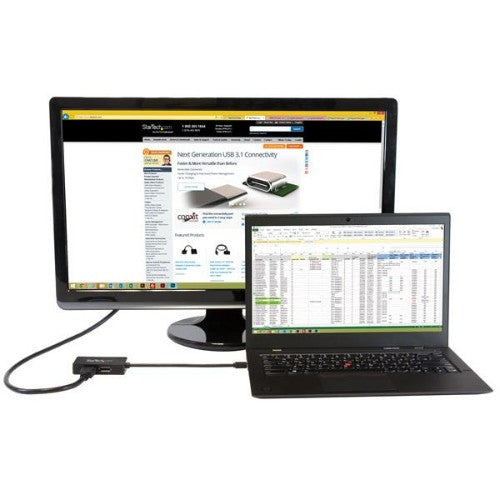

This multifunction adapter offers the unique ability to connect almost any display to your mini DisplayPort equipped PC or Mac, providing the perfect solution for business environments that have mixed display hardware - saving the expense of purchasing new displays for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook® or Microsoft® Surface™ Pro devices with mDP.
A plug-and-play solution that requires no software or drivers, this versatile mDP adapter offers a quick and simple installation for the utmost convenience.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Features |
|---|
| DisplayPort version |
1.2 |
| Cable length |
0.15 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DisplayPort + DVI-D + HDMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Product colour |
Black |
| Maximum resolution |
2560 x 1600 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA) |
| Plug and Play |
Yes |
| Certification |
CE, FCC, REACH |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Dual Link DVI |
No |
| Supported audio channels |
5.1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Width |
45 mm |
| Height |
15 mm |
| Depth |
240 mm |
| Material |
Plastic |
| Weight & dimensions |
|---|
| Weight |
47 g |
| Package width |
130 mm |
| Package depth |
129 mm |
| Package height |
30 mm |
| Package weight |
56 g |
| Width |
45 mm |
| Height |
15 mm |
| Depth |
240 mm |
| Packaging data |
|---|
| Package width |
130 mm |
| Package depth |
129 mm |
| Package height |
30 mm |
| Package weight |
56 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
330 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
100 pc(s) |
| Harmonized System (HS) code |
84733080 |
