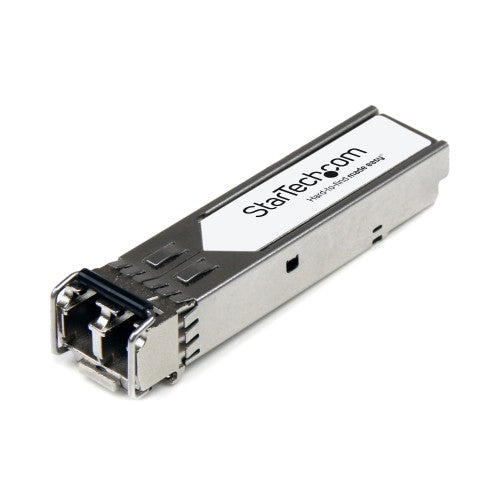

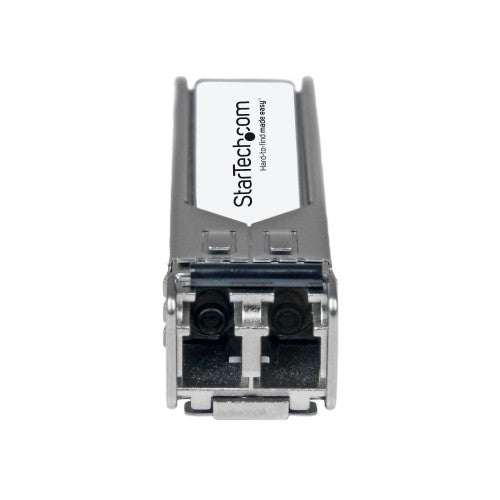

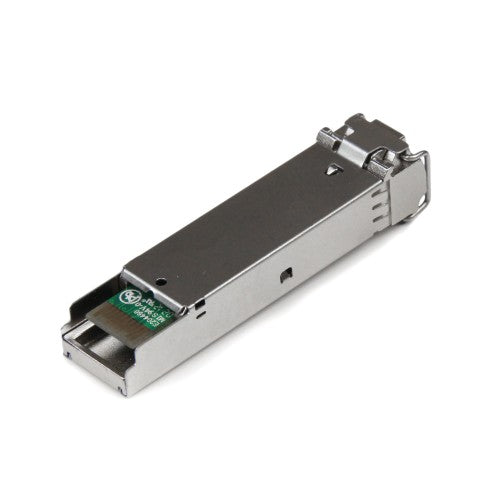

StarTech Palo Alto Networks PAN-SFP-PLUS-SR Compatible SFP+ Module, 10GBASE-SR, MMF, 300m (984ft), LC, 850nm, 10G Transceiver
Key Features
- PALO ALTO NETWORKS COMPATIBLE TRANSCEIVER: Equivalent to the Palo Alto Networks PAN-SFP-PLUS-SR MMF module; Programmed and tested to ensure seamless integration with Palo Alto switches and routers to deliver reliable 10G connectivity up to 300m (984ft)
- TECHNICAL SPECS: 10GBASE-SR / 10Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 300m (984ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Palo Alto Networks routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Fiber ethernet cabling technology |
10GBASE |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
PLUS-SR |
| Mean time between failures (MTBF) |
498745585 h |
| Brand compatibility |
Palo Alto Networks |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
PLUS-SR |
| Mean time between failures (MTBF) |
498745585 h |
| Brand compatibility |
Palo Alto Networks |
| Certification |
CE, FCC, UR |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Certification |
CE, FCC, UR |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| Fiber optic connector |
LC |
| Weight & dimensions |
|---|
| Width |
58.4 mm |
| Depth |
13.9 mm |
| Height |
13.7 mm |
| Weight |
20 g |
| Package width |
91 mm |
| Package depth |
114 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
91 mm |
| Package depth |
114 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
91 mm |
| Master (outer) case length |
115 mm |
| Master (outer) case height |
33 mm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
