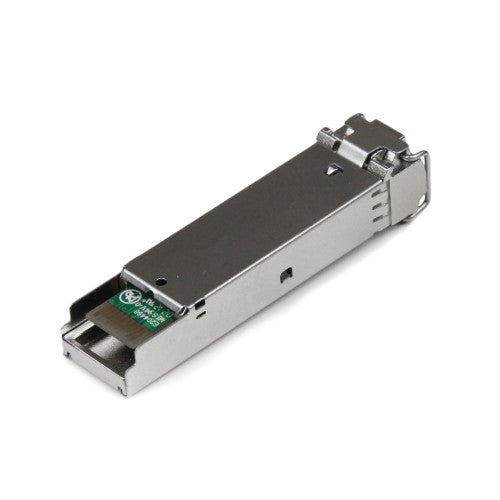

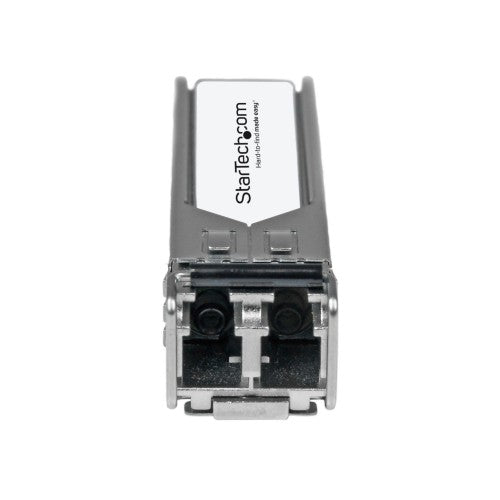

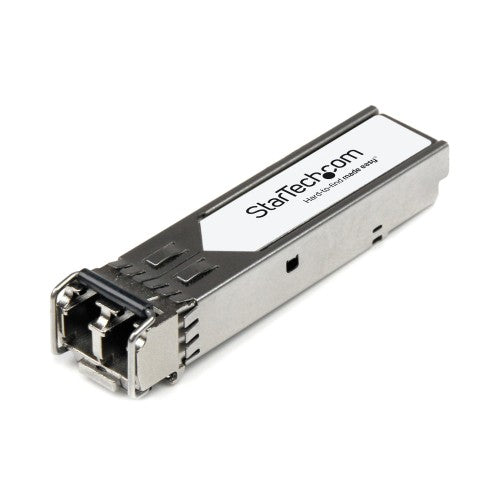

StarTech Palo Alto Networks LX Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM (LX-ST)
Key Features
- 100% PALO ALTO NETWORKS LX COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Palo Alto Networks switches and routers to deliver reliable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-LX / 1Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Palo Alto Networks routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The LX-ST is a Palo Alto Networks PAN-SFP-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 634,210,013 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
No |
| SFP transceiver standard |
LX |
| Fiber ethernet cabling technology |
1000BASE |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
LX |
| Mean time between failures (MTBF) |
634210013 h |
| Brand compatibility |
Palo Alto Networks |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
LX |
| Mean time between failures (MTBF) |
634210013 h |
| Brand compatibility |
Palo Alto Networks |
| Certification |
CE, FCC, UR |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Certification |
CE, FCC, UR |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC |
| Weight & dimensions |
|---|
| Width |
56.6 mm |
| Depth |
13.7 mm |
| Height |
12.5 mm |
| Weight |
18 g |
| Package width |
92 mm |
| Package depth |
113 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
92 mm |
| Package depth |
113 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
92 mm |
| Master (outer) case length |
115 mm |
| Master (outer) case height |
33 mm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
