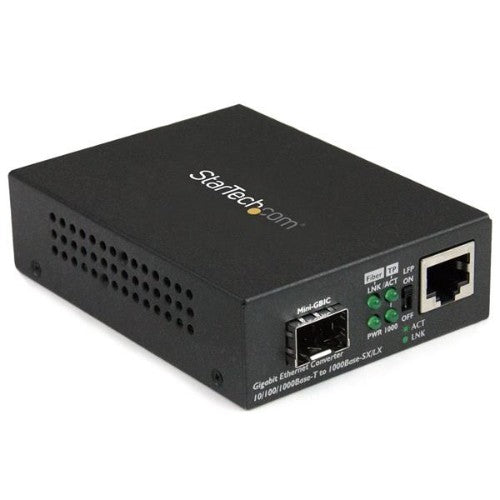

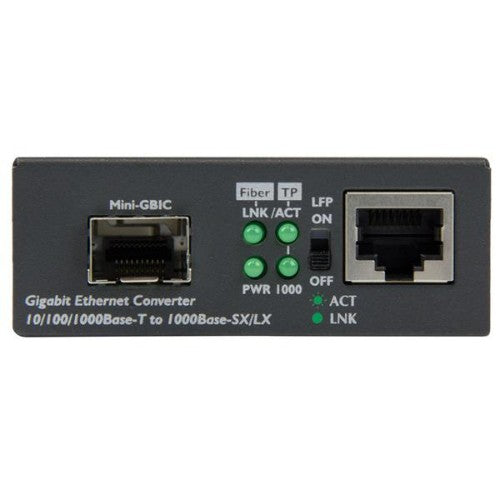

StarTech Multi-Mode (MM) / Single-Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot - TAA
Key Features
- EXTEND GIGABIT NETWORKS OVER LONG DISTANCES: Convert RJ45 to fiber with full duplex performance, overcoming copper limits and resisting EMI; Link Fault Pass-through speeds up troubleshooting while ensuring reliable uptime for mission-critical deployments
- FLEXIBLE CONFIGURATION: Fiber media converter with open SFP slot which allows you to customize the network extension distance to your requirements with any MSA-compliant multi or single mode transceiver
- AUTO NEGOTIATION: Media converter features a 10/100/1000 Mbps compatible RJ45 port that supports auto negotiation to bridge different network devices/speeds to a Gigabit fiber network; Supports IEEE 802.1q Tag VLAN pass-through and 9K Jumbo Frames
- COMPACT AND DURABLE: Media converter installs almost anywhere with little to no configuration; Also mounts in the MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS for clean, professional integration into structured data centers, or server rooms; TAA compliant
- THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice
This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
A cost-effective extension and flexible performance
The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.
A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Installation is fast and easy
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.
Specifications
| Network |
|---|
| Jumbo frames support |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Converter input interface |
1000Base-T, 100Base-TX, 10Base-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
SFP |
| Performance |
|---|
| Wavelength-division multiplexing (WDM) |
Yes |
| Fiber mode structure |
Multi-mode, Single-mode |
| Mean time between failures (MTBF) |
50000 h |
| Jumbo frames support |
Yes |
| Features |
|---|
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Housing material |
Steel |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |

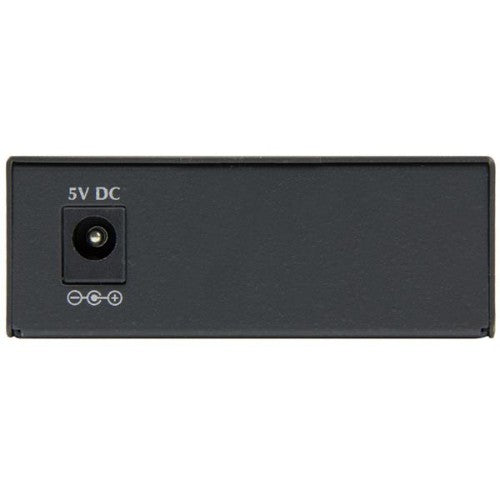

| DC-in jack |
Yes |
| Power |
|---|
| Power plug type |
Type N |
| Input voltage |
100 - 240 V |
| Input current |
1 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power consumption (typical) |
5 W |

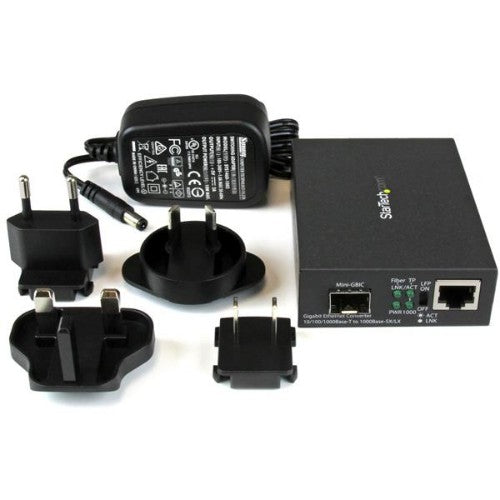

| External power adapter |
Yes |
| Power over Ethernet (PoE) |
No |
| Weight & dimensions |
|---|
| Width |
70 mm |
| Depth |
95 mm |
| Height |
26 mm |
| Weight |
185 g |
| Package width |
285 mm |
| Package depth |
139 mm |
| Package height |
69 mm |
| Package weight |
544 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
285 mm |
| Package depth |
139 mm |
| Package height |
69 mm |
| Package weight |
544 g |
| Design |
|---|
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Housing material |
Steel |
| Product colour |
Black |
| Certification |
CE, FCC |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
590 mm |
| Master (outer) case length |
370 mm |
| Master (outer) case height |
311 mm |
| Products per master (outer) case |
20 pc(s) |
| Harmonized System (HS) code |
85176990 |
