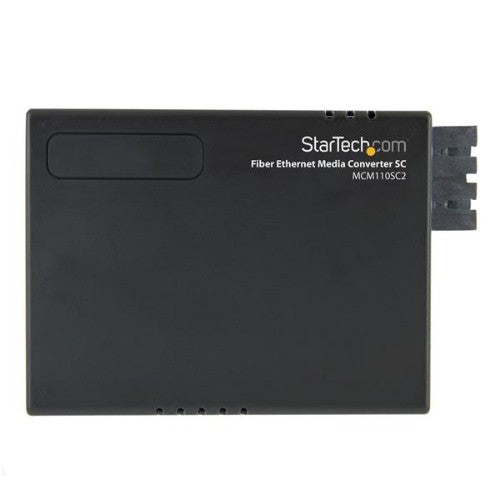

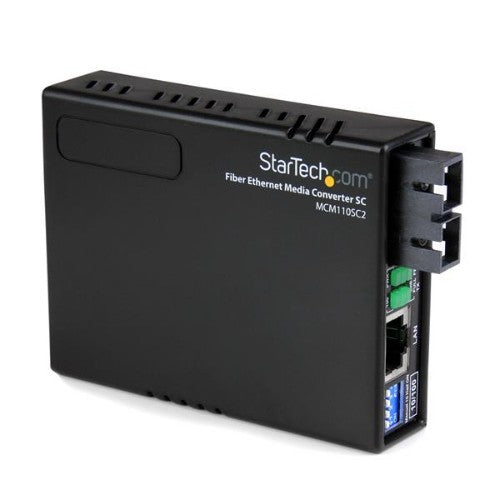

StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA

StarTech Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA

Key Features

• Enable Long-Range Network Connectivity: Convert 10/100Mbps Ethernet to multi-mode SC fiber and extend up to 1.2mi (2km), delivering secure, interference-resistant links for edge, industrial, and remote sites where copper falls short
• Deploy Anywhere with Minimal Setup: Compact media converter installs in tight spaces, enabling fast integration into data centers or server rooms; TAA compliant for procurement standards; Does not work with MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS

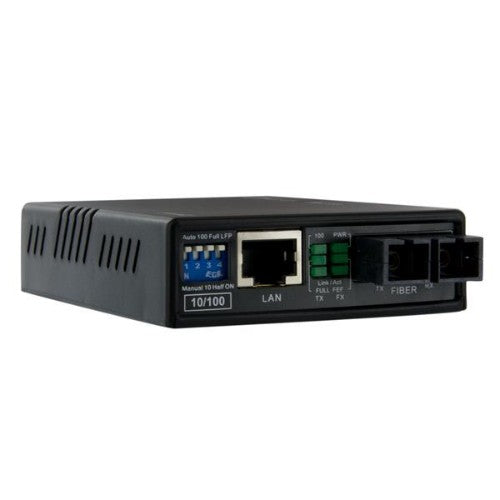

• Configurable DIP Switches: Plug-and-play media converter auto-negotiates across networks or uses DIP switches to force speed, duplex, and link-fault passthrough settings, reducing mismatches, isolating faults, and accelerating deployments
• Deploy Efficiently in Compact, Power-Sensitive Spaces: Operates at just 2.4W with 12V DC input via included power adapter or an optional chassis power supply, supporting 32°F to 122°F (0°C to 50°C) environments; Does not support PoE
• The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance

Description

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Specifications

Network
Jumbo frames support	Yes
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames	9000
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Fiber optic connector	SC
Performance
Wavelength-division multiplexing (WDM)	No
Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	65000 h
Jumbo frames support	Yes
Flow control support	Yes
Auto-negotiation	Yes
Features
Internal	No
LED indicators	Yes
Housing material	Plastic
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

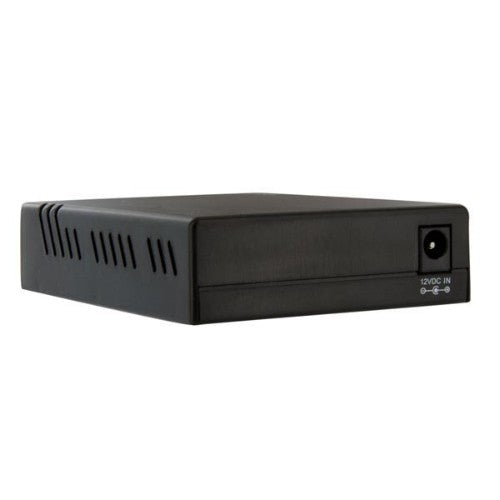

DC-in jack	Yes
Power
Power plug type	Type M
Input voltage	115 V
Output voltage	12 V
Output current	0.2 A
Power over Ethernet (PoE)	No
Weight & dimensions
Width	75 mm
Depth	95 mm
Height	20 mm
Weight	90.5 g
Package width	63 mm
Package depth	148 mm
Package height	145 mm
Package weight	400 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%

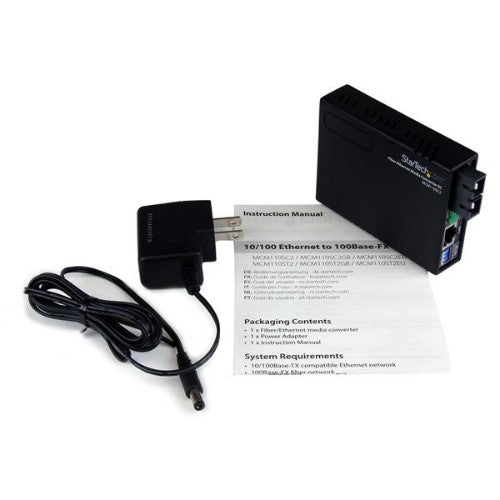

Packaging content
AC adapter included	Yes
Manual	Yes
Packaging data
Package width	63 mm
Package depth	148 mm
Package height	145 mm
Package weight	400 g
Design
Internal	No
LED indicators	Yes
Housing material	Plastic
Product colour	Black
Certification	CE, FCC
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Technical details
Compliance certificates	RoHS
