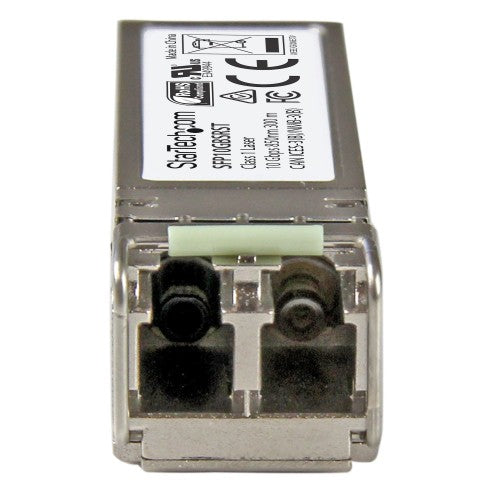

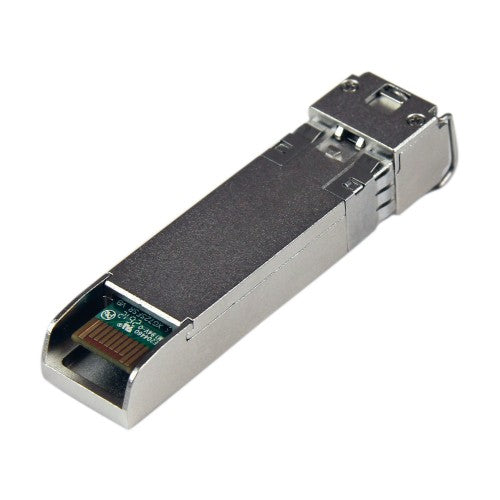

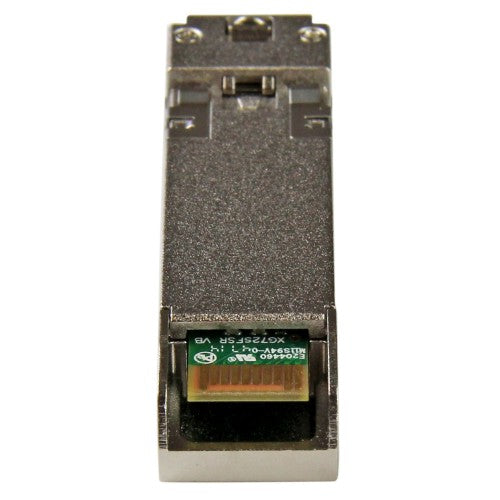

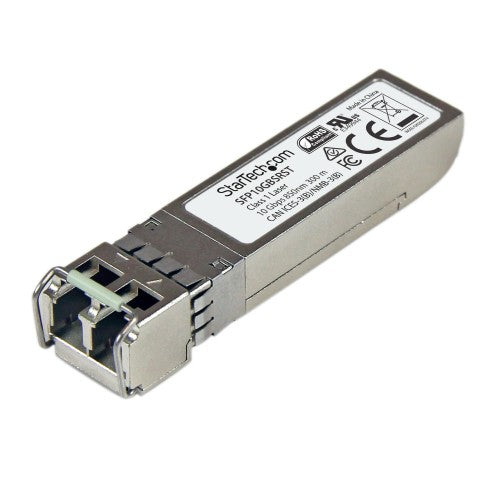

StarTech MSA Uncoded Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber (MMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM (SFP10GBSRST)
Key Features
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
- TECHNICAL SPECS: 10GBASE-SR / 10Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 300m (984ft)
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The SFP10GBSRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-SR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 300 m (984 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• Power Consumption: Less than 1.6 Watts
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Wavelength-division multiplexing (WDM) |
No |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Country of origin |
China |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Yes |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Yes |
| Country of origin |
China |
| Certification |
CE, FCC, UR |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Certification |
CE, FCC, UR |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Weight & dimensions |
|---|
| Width |
13.9 mm |
| Depth |
58.4 mm |
| Height |
12.6 mm |
| Weight |
20 g |
| Package width |
92 mm |
| Package depth |
113 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
92 mm |
| Package depth |
113 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Country of origin |
China |
| Master (outer) case width |
345 mm |
| Master (outer) case length |
410 mm |
| Master (outer) case height |
355 mm |
| Products per master (outer) case |
36 pc(s) |
| Harmonized System (HS) code |
85369010 |
