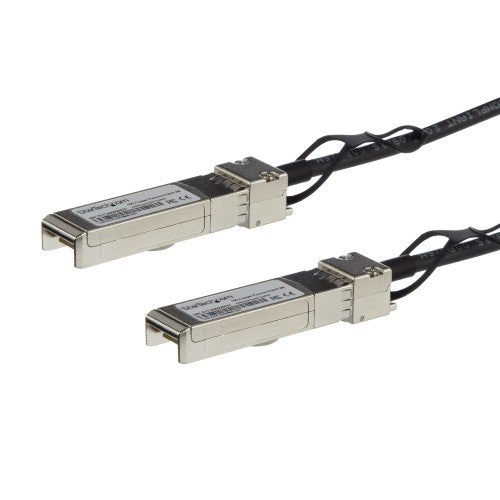

StarTech.com MSA Uncoded Compatible 2m 10G SFP+ to SFP+ Direct Attach Breakout Cable Twinax - 10 GbE SFP+ Copper DAC 10 Gbps Low Power Passive Transceiver Module DAC

StarTech MSA Uncoded Compatible 2m 10G SFP+ to SFP+ Direct Attach Breakout Cable Twinax - 10 GbE SFP+ Copper DAC 10 Gbps Low Power Passive Transceiver Module DAC (SFP10GPC2M)

Key Features

• MSA UNCODED SFP+ CABLE (DAC): 10G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
• TECHNICAL SPECS: 2m (6.5ft) / 10 Gbps / Passive Twinax (Copper) / 2x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
• DESIGNED FOR SERVER ROOMS: Mini GBIC DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance.
• OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
• WORKS WITH MSA COMPLIANT SWITCHES: Low power 10 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers

Description

Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty

The SFP10GPC2M is an MSA compliant direct-attach copper SFP+ cable that’s designed, programmed and tested to work in 10G network deployments. It delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.

This passive Twinax cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

At 2 meters long and designed for high-speed performance, this copper SFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Features
Cable length	2 m
Connector 1	SFP+
Connector 2	SFP+
Jacket material	Polyvinyl chloride (PVC)
Product colour	Black
Connector 2 gender	Male
Connector 1 gender	Male
Plug and Play	Yes
Data transfer rate	10000 Mbit/s
InfiniBand protocol	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Certification	CE, FCC
Harmonized System (HS) code	84733080
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Weight & dimensions
Weight	100 g
Cable length	2 m
Package width	199 mm
Package depth	141 mm
Package height	17 mm
Package weight	100 g
Packaging data
Package width	199 mm
Package depth	141 mm
Package height	17 mm
Package weight	100 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	255 mm
Master (outer) case length	344 mm
Master (outer) case height	295 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	84733080
