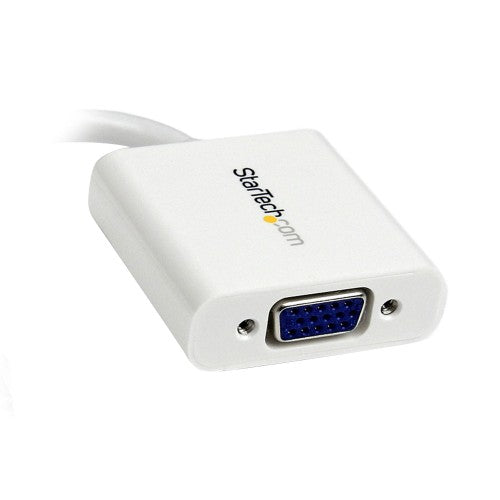

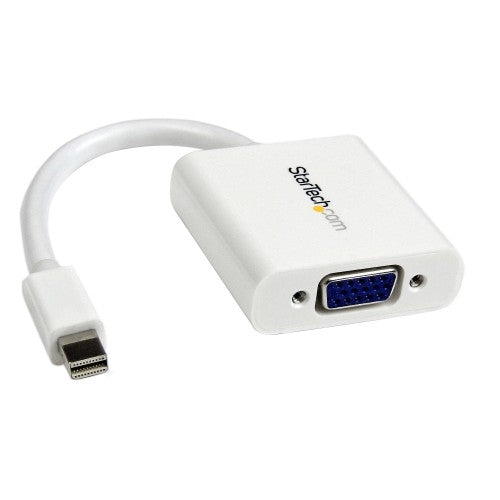

StarTech Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - White (MDP2VGAW)
Key Features
- MINI DISPLAYPORT TO VGA ADAPTER: Mini DP 1.2 (HBR2) video adapter connects a VGA display or projector supporting 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensures compatibility between source & display / White
- HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA adapter dongle; Compact design makes it ideal for travel to & from office/home / 5" (13cm) cable
- SCREW LOCKING VGA: Mini DisplayPort to VGA display adapter supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection from VGA displays and projectors / Tested with VGA cables up to 25'
- EASY TO USE: With no software or drivers required, the Mini DP to VGA converter (male to female) works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Description
Connect a VGA display to a Mini-DisplayPort®-equipped PC or Mac® computer
This Mini DisplayPort to VGA adapter lets you connect your mDP computer to a VGA monitor or projector. The adapter works with Mini DisplayPort computers like your Macbook® or any Microsoft® Surface™ Pro devices with mDP.
Easily connect your Mini DisplayPort computer to a VGA display
The mDP to VGA adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to a VGA display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.
Works with legacy VGA monitors
The Mini DisplayPort adapter makes your mDP computer fully compatible with existing VGA monitors or projectors in your home or around your office. The VGA connector features nuts that mate with the screws on standard VGA cables, to ensure your video cable won’t get disconnected.
The perfect travel companion for your MacBook with Mini DisplayPort
With its all-white design, this Mini DisplayPort video adapter is the perfect travel accessory for your MacBook with mDP. The adapter is compact and lightweight so it fits easily into your MacBook bag or carrying case, which is great for BYOD (Bring Your Own Device) applications at the office. While the adapter looks great next your Mac it also works with any Mini DisplayPort computer, such as your Windows® laptop.
Crystal-clear picture quality
With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.
The MDP2VGAW is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features |
|---|
| DisplayPort version |
1.2 |
| Converter type |
Active video converter |
| Cable length |
0.13 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Product colour |
White |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| HBR2 support |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Width |
45 mm |
| Height |
15 mm |
| Depth |
180 mm |
| Weight & dimensions |
|---|
| Weight |
28.5 g |
| Package width |
108 mm |
| Package depth |
197 mm |
| Package height |
19 mm |
| Package weight |
42 g |
| Width |
45 mm |
| Height |
15 mm |
| Depth |
180 mm |
| Packaging data |
|---|
| Package width |
108 mm |
| Package depth |
197 mm |
| Package height |
19 mm |
| Package weight |
42 g |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
360 mm |
| Master (outer) case length |
464 mm |
| Master (outer) case height |
280 mm |
| Products per master (outer) case |
160 pc(s) |
| Harmonized System (HS) code |
84733080 |
