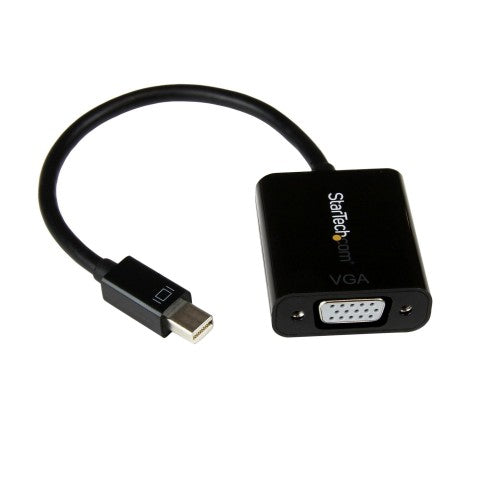

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black

StarTech Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black (MDP2VGA2)

Key Features

• MINI DISPLAYPORT TO VGA ADAPTER: Mini DisplayPort 1.2 (HBR2) video adapter connects a VGA display or projector supporting 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensures compatibility between source & display
• HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
• INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using the mDP to VGA adapter dongle; Compact design makes it ideal for travel to & from office/home / 7" (18cm) cable
• SCREW LOCKING VGA: Mini DisplayPort to VGA display adapter supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection from VGA displays and projectors / Tested with VGA cables up to 25'
• EASY TO USE: With no software or drivers required, the Mini DP to VGA converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks

Description

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
DisplayPort version	1.2
Converter type	Active video converter
Chipset	Analogix - ANX9833
Cable length	0.18 m
Connector 1	Mini DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Maximum resolution	1920 x 1200 pixels
Supported video modes	720p, 1080p
Plug and Play	Yes
Certification	RoHS, CE, FCC
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Certification	RoHS, CE, FCC
Compliance certificates	CE, RoHS
Other features
Width	35 mm
Height	8 mm
Depth	220 mm
Weight & dimensions
Weight	27 g
Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	36 g
Width	35 mm
Height	8 mm
Depth	220 mm
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	36 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	328 mm
Master (outer) case length	508 mm
Master (outer) case height	214 mm
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	84733080
