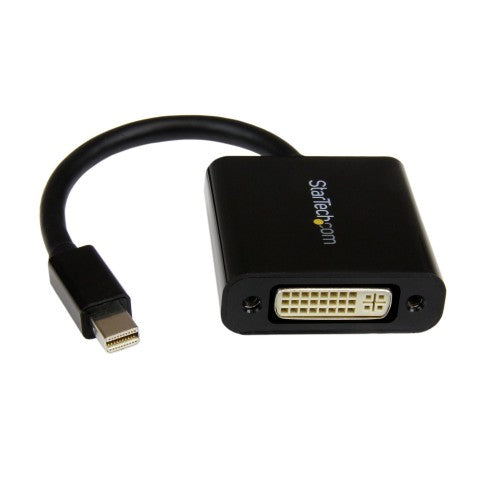

StarTech Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle (MDP2DVI3)
Key Features
- MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design makes it ideal for travel / 5" (13cm) attached cable
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Description
Connect a DVI Display to a Mini DisplayPort Video Source
The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Features |
|---|
| DisplayPort version |
1.2 |
| Converter type |
Passive video converter |
| Cable length |
0.13 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DVI-I |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Product colour |
Black |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Certificates |
|---|
| Compliance certificates |
RoHS, CE |
| Other features |
|---|
| Width |
40 mm |
| Height |
15 mm |
| Depth |
185 mm |
| Weight & dimensions |
|---|
| Weight |
26.5 g |
| Package width |
59 mm |
| Package depth |
202 mm |
| Package height |
32 mm |
| Package weight |
51 g |
| Width |
40 mm |
| Height |
15 mm |
| Depth |
185 mm |
| Packaging data |
|---|
| Package width |
59 mm |
| Package depth |
202 mm |
| Package height |
32 mm |
| Package weight |
51 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS, CE |
| Logistics data |
|---|
| Master (outer) case width |
468 mm |
| Master (outer) case length |
362 mm |
| Master (outer) case height |
279 mm |
| Products per master (outer) case |
200 pc(s) |
| Harmonized System (HS) code |
84733080 |
