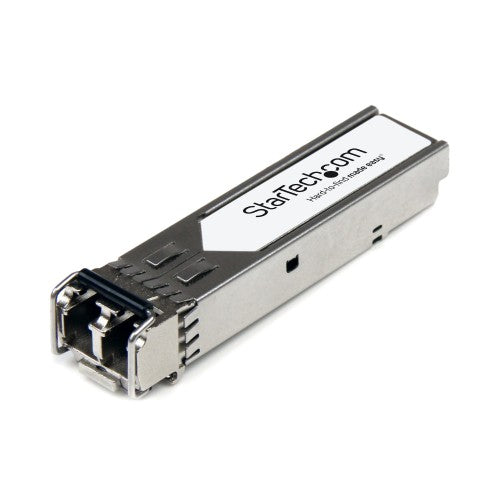

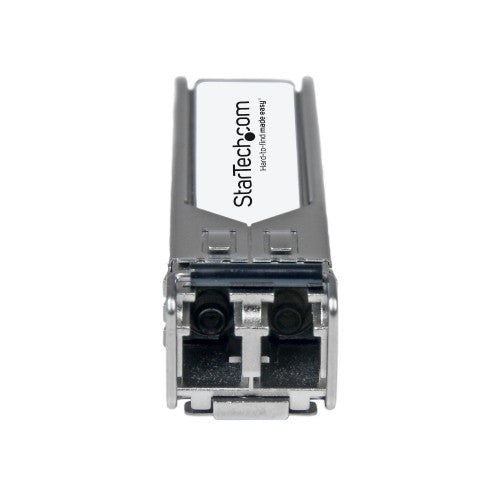

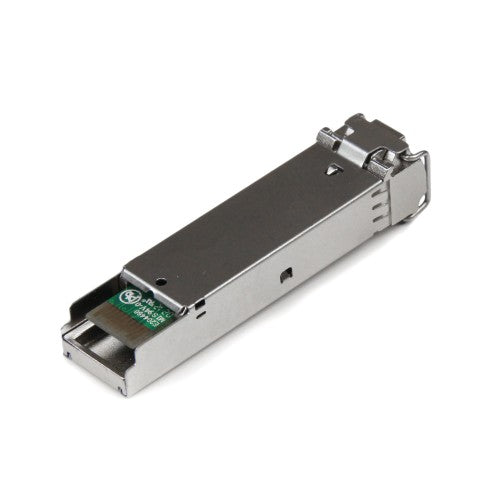

StarTech HPE JD092B Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode (MMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM HPE 5120, 5500, 5810 (JD092B-ST)
Key Features
- 100% HPE JD092B COMPATIBLE: Works with HPE switches like 5120, 5500, 5810, 5900AF, and others
- TECHNICAL SPECS: 10GBASE-SR / 10Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 300m (984ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The JD092B-ST is a HPE JD092B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
200 m |
| Wavelength |
1310 nm |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Fiber ethernet cabling technology |
10GBASE |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
HPE: A5830AF; HPE 12504, 5120, 5500, 5810, 5900AF, 5920AF; HP A10500, 6127XLG, 6125XLG; FlexFabric 1.92, 11908, 12902 |
| Mean time between failures (MTBF) |
145858878 h |
| Brand compatibility |
Any brand |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
HPE: A5830AF; HPE 12504, 5120, 5500, 5810, 5900AF, 5920AF; HP A10500, 6127XLG, 6125XLG; FlexFabric 1.92, 11908, 12902 |
| Mean time between failures (MTBF) |
145858878 h |
| Brand compatibility |
Any brand |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Weight & dimensions |
|---|
| Width |
58.4 mm |
| Depth |
14 mm |
| Height |
13.7 mm |
| Weight |
20 g |
| Package width |
91 mm |
| Package depth |
114 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
91 mm |
| Package depth |
114 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
91 mm |
| Master (outer) case length |
115 mm |
| Master (outer) case height |
33 mm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
