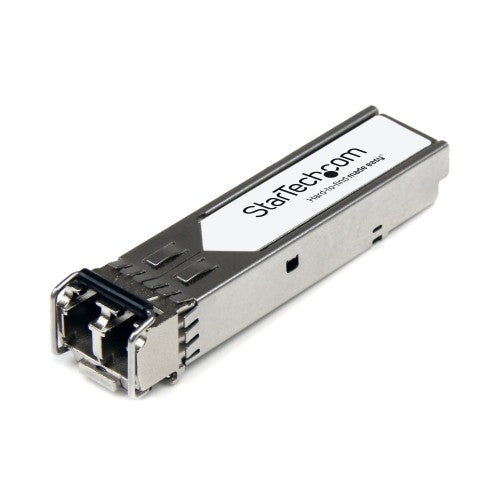

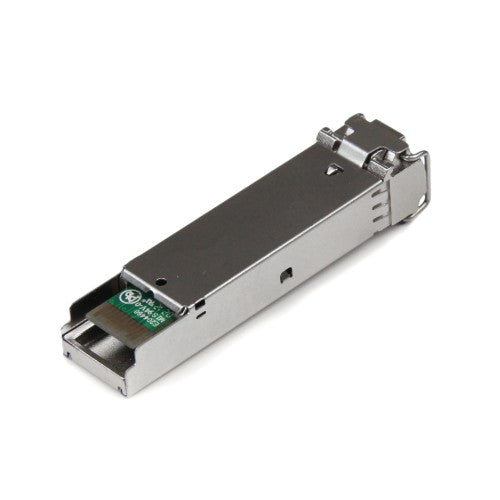

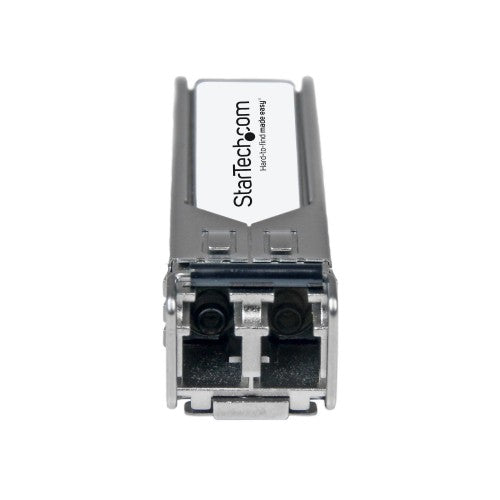

StarTech HPE 455886-B21 Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode (SMF) Fiber Optic Transceiver - LC 10km - 1310nm DDM HPE BladeSystem 562SFP+ 560SFP+ (455886-B21-ST)
Key Features
- 100% HPE 455886-B21 COMPATIBLE: Works with HPE switches like BladeSystem, 562SFP+, 560SFP+, 537SFP+, SimpliVity 380 and others
- TECHNICAL SPECS: 10GBASE-LR / 10Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 455886-B21-ST is a HPE 455886-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
No |
| SFP transceiver standard |
LR |
| Fiber ethernet cabling technology |
10GBASE |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
455886-B21 |
| Mean time between failures (MTBF) |
1386624697 h |
| Brand compatibility |
HP |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
455886-B21 |
| Mean time between failures (MTBF) |
1386624697 h |
| Brand compatibility |
HP |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Weight & dimensions |
|---|
| Width |
58.4 mm |
| Depth |
13.9 mm |
| Height |
13.7 mm |
| Weight |
21 g |
| Package width |
113 mm |
| Package depth |
92 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
113 mm |
| Package depth |
92 mm |
| Package height |
33 mm |
| Package weight |
50 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
113 mm |
| Master (outer) case length |
115 mm |
| Master (outer) case height |
33 mm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
