StarTech 115 ft/35 m HDMI Signal Booster - 1080p Signal Repeater - HDMI Inline Amplifier & Extender - 7.1 Audio Support (HDBOOST)
Key Features
- INLINE CAPABILITY: You can place the HDMI signal booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
- SIMPLE INSTALLATION: The HDMI booster mounting hardware is included. No CAT5 or CAT6 cable infrastructure required. A power adapter is not required for standard applications, SVUSBPOWER sold separately.
- EASILY CUSTOMIZABLE: The HDMI extender features an equalization switch with ten different levels. The switch lets you adjust the amplification of your signal based on the distance of your cables.
- LONG DISTANCE CAPABILITY: When extending HDMI over long distances, higher resolutions can become unavailable. Using the HDMI amplifier ensures high-definition resolutions up to 1080p at 60Hz.
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Extender is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Description
Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.

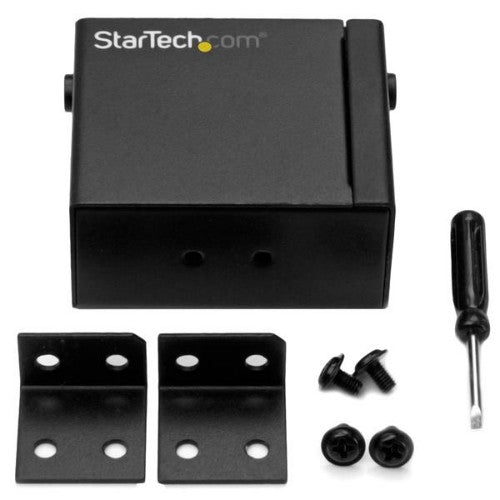

Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances

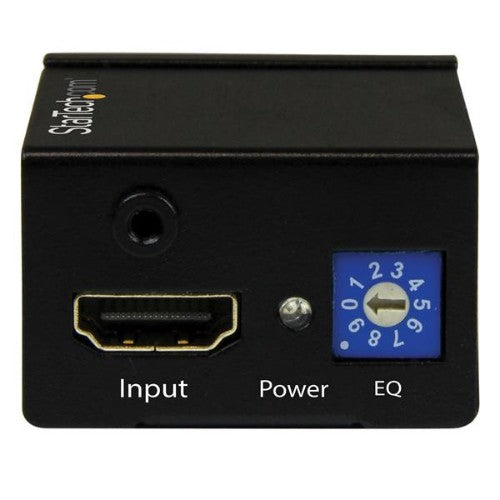

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features |
|---|
| Audio output channels |
7.1 channels |
| Rack mounting |
Yes |
| Type |
AV repeater |
| Maximum resolution |
1920 x 1080 pixels |
| Maximum transfer distance |
35 m |
| Audio system |
Multichannel |
| Supported video modes |
720p, 1080p |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+) |
| LED indicators |
Power |
| Product colour |
Black |
| Certification |
CE, FCC |
| Ports & interfaces |
|---|
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Output current |
1 A |
| Power plug type |
Type N |
| AC input voltage |
100-240 V |
| Operating voltage |
5 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
42.2 x 54.2 x 26.2 mm |
| Weight |
72 g |
| Packaging data |
|---|
| Package width |
143 mm |
| Package height |
33 mm |
| Package depth |
174 mm |
| Package weight |
163 g |
| Package dimensions (WxDxH) |
143 x 168 x 63 mm |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| Technical details |
|---|
| Audio support |
Yes |
| Harmonized System (HS) code |
85176200 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
570 mm |
| Master (outer) case length |
538 mm |
| Master (outer) case height |
314 mm |
| Products per master (outer) case |
100 pc(s) |
| Harmonized System (HS) code |
85176200 |
