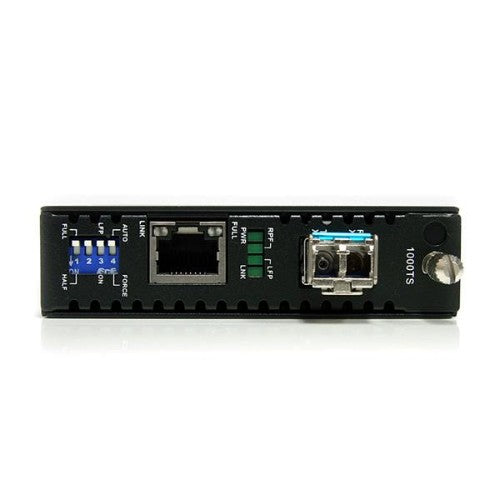

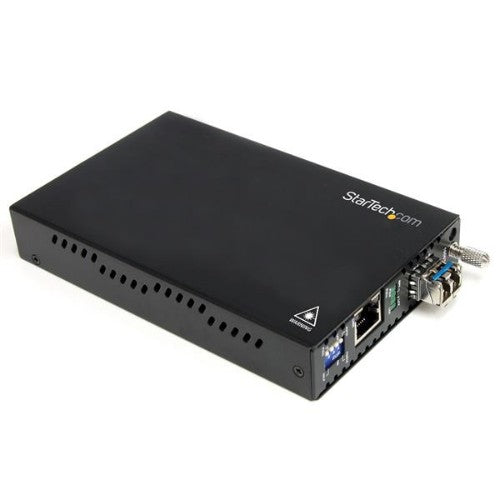

StarTech.com Multimode (MM) LC Fiber Media Converter for 1Gbe Network - 550m Range - Gigabit Ethernet - 850nm - with SFP Transceiver (ET91000LC2)
Description
Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber
The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

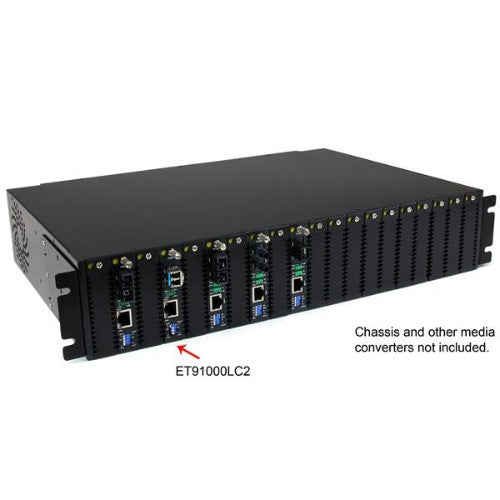

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
| Network |
|---|
| Maximum data transfer rate |
2000 Mbit/s |
| Converter input interface |
1000Base-T |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full, Half |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
LC |
| Performance |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
550 m |
| Fiber mode structure |
Multi-mode |
| Mean time between failures (MTBF) |
65000 h |
| Plug and Play |
Yes |
| Features |
|---|
| Internal |
No |
| Product colour |
Black |
| Plug and Play |
Yes |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
LC |
| DC-in jack |
Yes |
| Power |
|---|
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (typical) |
4 W |
| External power adapter |
Yes |
| Weight & dimensions |
|---|
| Weight |
620 g |
| Package width |
206 mm |
| Package depth |
138 mm |
| Package height |
89 mm |
| Package weight |
774 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
206 mm |
| Package depth |
138 mm |
| Package height |
89 mm |
| Package weight |
774 g |
| Design |
|---|
| Internal |
No |
| Product colour |
Black |
| Certification |
CE, FCC |
| Management features |
|---|
| Plug and Play |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Full duplex |
Yes |
| Dimensions (WxDxH) |
95 x 160 x 20 mm |
