StarTech DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - DisplayPort Certified - DP/DP++ Source to VGA Monitor Cable Adapter Dongle - Latching DP Connector (DP2VGA2)
Key Features
- DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display/projector supporting 2048x1280, 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensure compatibility between source & display / 9" (22.5cm) cable / DisplayPort Certified
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using this DP to VGA display adapter; Compact design makes it easy to travel to and from office or home

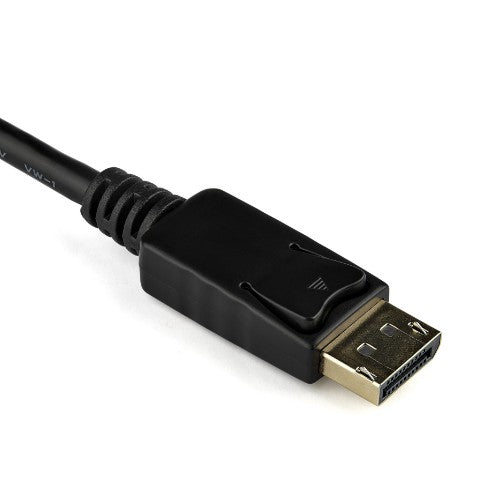

- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Video adapter has latching DP connector to ensure a solid host connection / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection / Tested w/ VGA cables up to 25ft
- EASY TO USE: With no software or drivers required, the DP to VGA adapter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female
Description
Connect a VGA monitor to a DisplayPort-equipped PC
This DisplayPort to VGA adapter lets you connect your DP computer to a VGA monitor or projector. The adapter works with DisplayPort computers like your HP Elitebook Revolve 810 G3.
Easily connect your DisplayPort computer to a VGA display
The DP to VGA adapter lets you connect your DisplayPort laptop or desktop computer to a VGA display. The adapter supports plug-and-play connectivity ensuring a hassle-free setup.
Works with legacy VGA monitors

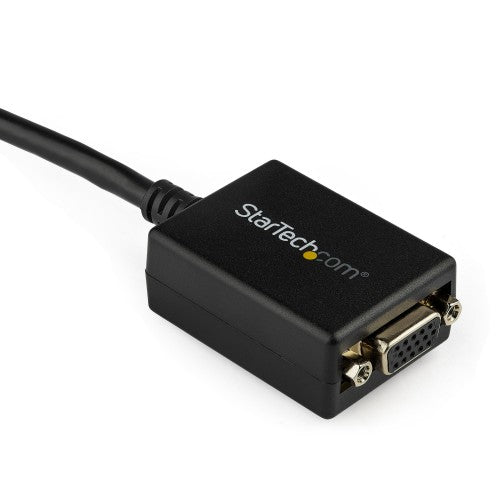

The DisplayPort adapter makes your DP computer fully compatible with existing VGA monitors or projectors in your home or around your office. The VGA connector features nuts that mate with the screws on standard VGA cables, to ensure your video cable won’t get disconnected.
Designed for maximum portability
The DisplayPort to VGA converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort laptop, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Crystal-clear picture quality
With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DP connection to deliver every detail in stunning high-definition.
The DP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features |
|---|
| Country of origin |
Canada |
| Converter type |
Active video converter |
| Cable length |
0.225 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Product colour |
Black |
| Maximum resolution |
2048 x 1280 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Supported video modes |
1080p |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Technical details |
|---|
| Country of origin |
Canada |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Width |
31.8 mm |
| Height |
19 mm |
| Depth |
279 mm |
| Weight & dimensions |
|---|
| Weight |
43 g |
| Package width |
196 mm |
| Package depth |
205 mm |
| Package height |
25 mm |
| Package weight |
52 g |
| Width |
31.8 mm |
| Height |
19 mm |
| Depth |
279 mm |
| Packaging data |
|---|
| Package width |
196 mm |
| Package depth |
205 mm |
| Package height |
25 mm |
| Package weight |
52 g |
| Logistics data |
|---|
| Master (outer) case width |
517 mm |
| Master (outer) case length |
347 mm |
| Master (outer) case height |
222 mm |
| Products per master (outer) case |
140 pc(s) |
| Harmonized System (HS) code |
84733080 |
