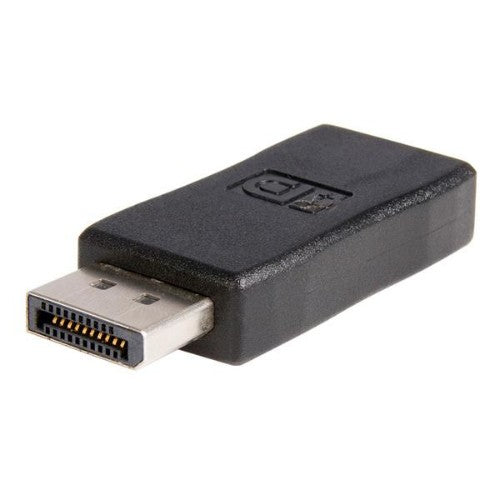

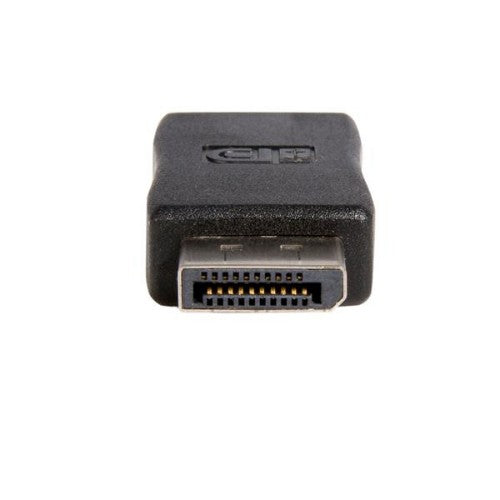

StarTech DisplayPort to HDMI Adapter - Compact DP to HDMI Adapter/Video Converter 1080p - VESA DisplayPort Certified - Passive DP 1.2 to HDMI Monitor/Display/Projector Cable Adapter (DP2HDMIADAP)
Key Features
- PERFORMANCE: This DisplayPort 1.2 to HDMI adapter connects a DP desktop or laptop to an HDMI display, projector, monitor or TV / Supports HD 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4 / VESA DisplayPort Certified
- HOST COMPATIBILITY: DisplayPort to HDMI adapter tested for compatibility with DP++ source; Passive converter supports DP++ source connector incl workstations, desktops (AMD/Nvidia video cards), laptops, small form factor computers & docking stations
- SMALL FORM FACTOR: With no attached cable and compact design, the adapter connects directly to your HDMI cable for a clean look / Use to connect primary monitor or projector or add a secondary display / Perfect for travel and easily fits into a bag pocket
- STABLE CONNECTION: DP to HDMI adapter features a non-latching DP connector that is easy to disconnect from a hard to reach source / Tested with HDMI cables at extended lengths up to 35ft
- EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video adapter is OS independent; DP male to HDMI female
Description
Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer
The DP2HDMIADAP DisplayPort® to HDMI® Adapter provides a DisplayPort male and HDMI female connector, allowing you to keep your existing (HDMI) display while using a DisplayPort video card/source.
Supporting display resolutions of up to 1920x1200 (computer)/1080p (HDTV), this cost-effective solution maintains the incredible graphical performance offered by DisplayPort, while eliminating the cost of having to upgrade your HDMI-capable display to a display with built-in DisplayPort support.
DP2HDMIADAP is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| DisplayPort version |
1.2 |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Performance |
|---|
| Converter type |
Passive video converter |
| Supported video modes |
1080p |
| Product colour |
Black |
| Maximum resolution |
1920 x 1200 pixels |
| Plug and Play |
Yes |
| Audio support |
Yes |
| DisplayPort version |
1.2 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Relative humidity |
0 - 65% |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Width |
18 mm |
| Depth |
55 mm |
| Height |
9 mm |
| Weight |
16 g |
| Packaging data |
|---|
| Package width |
47 mm |
| Package depth |
89 mm |
| Package height |
33 mm |
| Package weight |
18 g |
| Design |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
600 pc(s) |
| Master (outer) case width |
334 mm |
| Master (outer) case length |
506 mm |
| Master (outer) case height |
220 mm |
