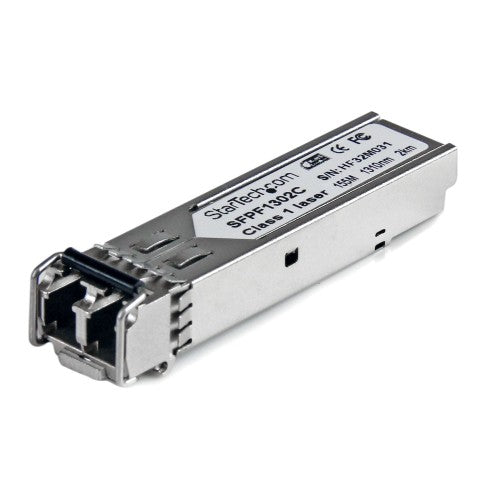

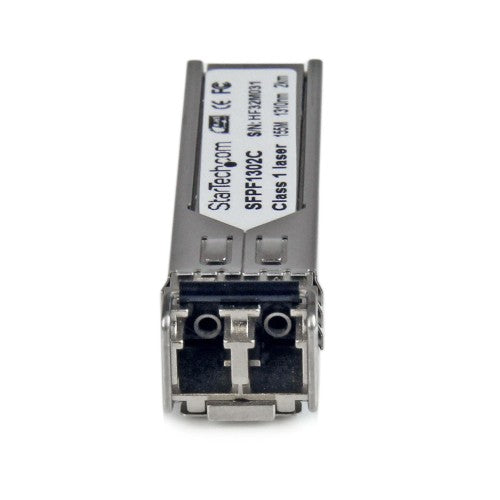

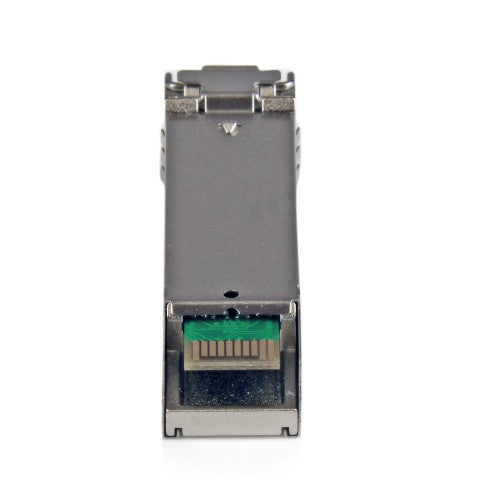

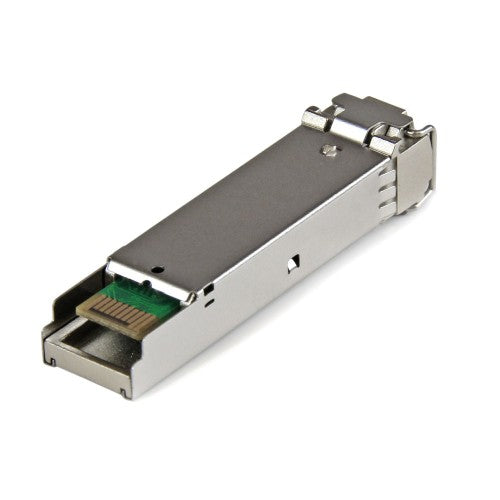

StarTech Cisco GLC-FE-100FX Compatible SFP Module - 100BASE-FX - 100Mbps Multimode Fiber MMF Optic Transceiver - 100 Mbps - LC 2km - 1310nm - DDM Cisco ASR920, IE2000, IE4000 (SFPF1302C)
Key Features
- 100% CISCO GLC-FE-100FX COMPATIBLE: Works with Cisco switches like ASR920, IE2000, IE4000, IR1101, ISR1100 and others
- TECHNICAL SPECS: 100BASE-FX / 100 Mbps / Multi Mode (MMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 2km (1.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
100 Mbps | Multi Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty
The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• MTBF: 1,472,572 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Wavelength-division multiplexing (WDM) |
No |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
155 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3u |
| Maximum transfer distance |
2000 m |
| Wavelength |
1300 nm |
| Duplex system |
Full, Half |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
FX |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
1472572 h |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
1472572 h |
| Certification |
CE, FCC, UL |
| Power |
|---|
| Power consumption (typical) |
1 W |
| Certificates |
|---|
| Certification |
CE, FCC, UL |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
155 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3u |
| Weight & dimensions |
|---|
| Width |
9 mm |
| Depth |
65 mm |
| Height |
14 mm |
| Weight |
25 g |
| Package width |
113 mm |
| Package depth |
92 mm |
| Package height |
33 mm |
| Package weight |
95 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
113 mm |
| Package depth |
92 mm |
| Package height |
33 mm |
| Package weight |
95 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
260 mm |
| Master (outer) case length |
308 mm |
| Master (outer) case height |
201 mm |
| Products per master (outer) case |
36 pc(s) |
| Harmonized System (HS) code |
85369010 |
