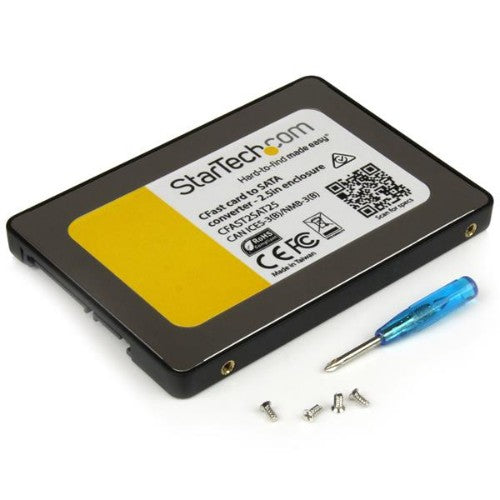

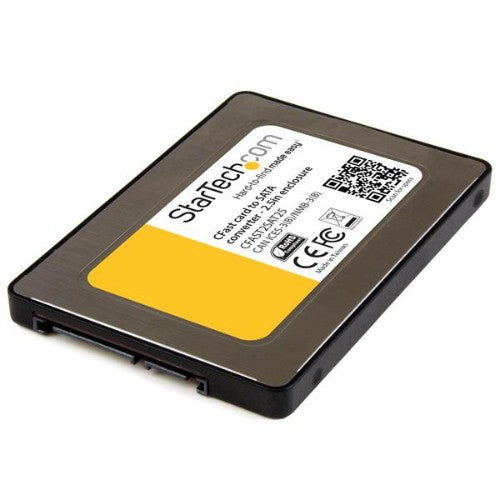

StarTech.com CFast card to SATA adapter with 2.5" housing

COR-PRO-SRVC

Description

Convert your CFast card into a 2.5in SATA drive for faster data transfer

Now you can use your CFast memory card like a standard 2.5" SATA solid-state drive. This unique adapter lets you access and recover data from a CFast card through SATA at faster data transfer speeds.

Turn CFast into SATA with ease

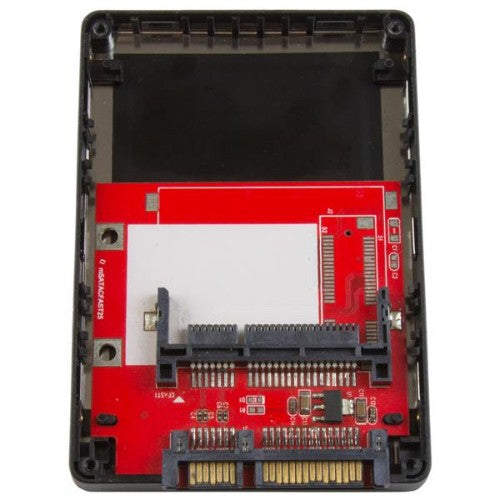

This CFast to SATA adapter creates a permanent conversion from CFast to SATA for use inside small form factor or embedded solutions. The drive frame and the connector on the adapter mimic the exact size and connector location of a 2.5" SATA hard drive.

Standard 2.5" housing allows the converted card to be installed into a laptop or other standard mounting bracket. Once the CFast card is mounted inside this adapter, you can use it just like a 2.5" SATA drive - in your laptop, docking station, enclosure or desktop computer.

Access your data faster with SATA performance

Transfer data from your CFast card to your PC through SATA, with file transfer speeds of up to 6 Gbps. You can offload data from your DSLR cameras and camcorders, or transfer graphic design files, videos and other files from your CFast card.

Faster file transfer speeds means you'll spend less time waiting for file transfers to complete. The actual speed will depend on the speed of the CFast media.

Engineered with a durable protective housing, the CFAST2SAT25 adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Make your CFast card work like a 2.5in SATA SSD
- Supports SATA III with data transfer speeds of up to 6 Gbps

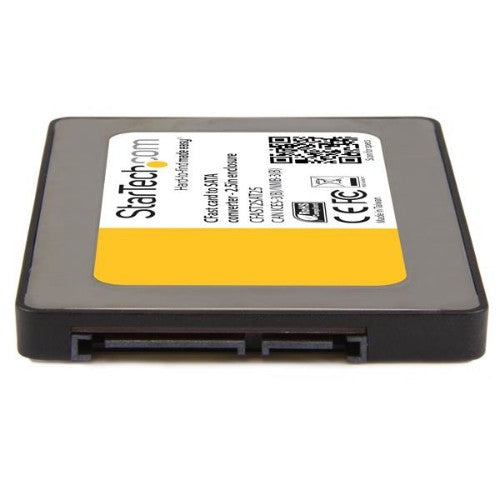

- SATA and power combo connector (7 + 15 pin) - same as a 2.5" SATA hard drive

Specifications

Ports & interfaces
Internal	No
Host interface	SATA
Output interface	CFast
SATA connector insertion cycles	10000
Performance
Data transfer rate (max)	6 Gbit/s
Product colour	Black, Silver
Supported storage drive heights	3.3,5 mm
SATA connector insertion cycles	10000
Harmonized System (HS) code	84733020
Design
Supported storage drive heights	3.3,5 mm
Mean time between failures (MTBF)	50000 h
Internal	No
Product colour	Black, Silver
Certification	CE, FCC, RoHS
Features
Data transfer rate (max)	6 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Material	Plastic, Steel
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Supported storage drive heights	3.3,5 mm
Weight & dimensions
Width	69 mm
Depth	99 mm
Height	10 mm
Weight	54 g
Package width	144 mm
Package depth	167 mm
Package height	32 mm
Package weight	100 g
Packaging data
Quick installation guide	Yes
Package width	144 mm
Package depth	167 mm
Package height	32 mm
Package weight	100 g
Screws included	Yes
Logistics data
Harmonized System (HS) code	84733020
Other features
Material	Plastic, Steel
Packaging content
Quick installation guide	Yes
Screws included	Yes
