StarTech 7-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME)
Key Features
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB 3.2 Gen 1 hub where required with built-in mounting brackets or included DIN rails
- Offers flexible, wide-range power inputs with a 7-48V DC terminal block
- USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 35W total
Description
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

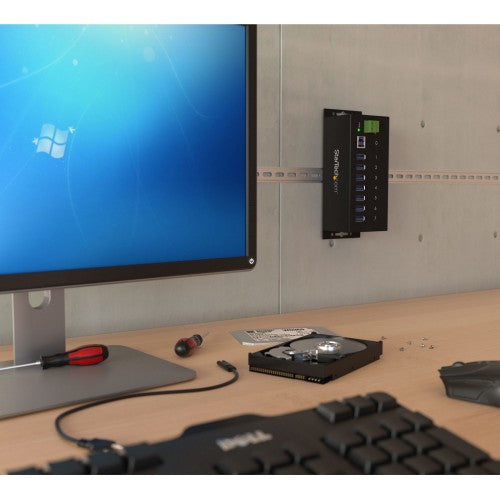

Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port |
Yes |
| Ports quantity |
7 |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack |
No |
| Card reader integrated |
No |
| Features |
|---|
| Surge protection |
Yes |
| Data transfer rate |
5000 Mbit/s |
| LED indicators |
Power |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS, TAA, REACH |
| Housing material |
Steel |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Power |
|---|
| Power source type |
DC |
| Input voltage |
7 - 48 V |
| Performance |
|---|
| Card reader integrated |
No |
| Certification |
CE, FCC, RoHS, TAA, REACH |
| Surge protection |
Yes |
| Data transfer rate |
5000 Mbit/s |
| Mean time between failures (MTBF) |
126106 h |
| Harmonized System (HS) code |
84719000 |
| Weight & dimensions |
|---|
| Width |
54 mm |
| Depth |
145 mm |
| Height |
45 mm |
| Weight |
325 g |
| Package width |
190 mm |
| Package depth |
294 mm |
| Package height |
71 mm |
| Package weight |
600 g |
| Packaging data |
|---|
| Package width |
190 mm |
| Package depth |
294 mm |
| Package height |
71 mm |
| Package weight |
600 g |
| Packaging content |
|---|
| Terminal block included |
Yes |
| Manual |
Yes |
| Cables included |
USB |
| DIN rail kit included |
Yes |
| Design |
|---|
| LED indicators |
Power |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS, TAA, REACH |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Master (outer) case width |
515 mm |
| Master (outer) case length |
407 mm |
| Master (outer) case height |
325 mm |
| Products per master (outer) case |
14 pc(s) |
| Harmonized System (HS) code |
84719000 |
| Technical details |
|---|
| Harmonized System (HS) code |
84719000 |
| Other features |
|---|
| Chipset |
Genesys Logic - GL3520 |
