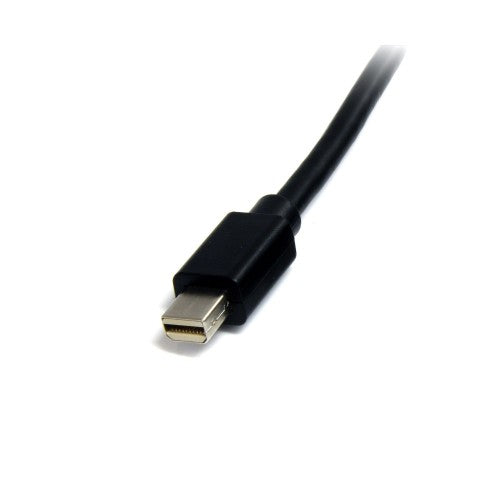

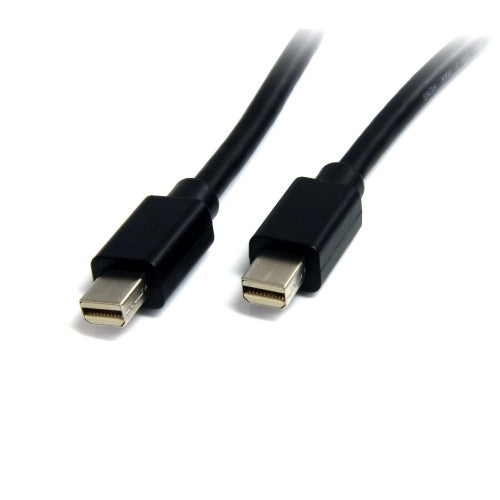

StarTech 6ft (2m) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors, Mini DisplayPort Cord - M/M
Key Features
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- HIGH PERFORMANCE: Mini DisplayPort 1.4 cable; 8K 60Hz (7680x4320p), 4K 120Hz (3840x2160p), 32.4Gbps bandwidth, HDR10, 32Ch Audio, MST, GTC for precise audio channel timing; future-proof your equipment by making it 8K ready
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.2 and DP1.1
- SPECS: 6.6 feet (2 m); Black Mini DP Cable; DisplayPort v1.4; mDP Male to mDP Male Cord; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR3, MST, GTC; Backed for Life
Description
Create a high-resolution 8k or 4k connection with HBR3 support between your Mini DisplayPort™-equipped laptop and monitor
This Mini DisplayPort™ 1.4 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 8k (7680 x 4320) @ 60Hz with a maximum HBR3 bandwidth of 32.4 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Ensures reliable performance and proper display of digitally protected content, with support for both HDCP and DPCP.
Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note: This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
Specifications
| Features |
|---|
| Cable shielding |
Aluminum mylar foil |
| Number of conductors |
19 |
| Cable length |
2 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
Mini DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| Product colour |
Black |
| AWG wire size |
32 |
| DisplayPort version |
1.2 |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| Multi-Stream Transport (MST) |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Weight & dimensions |
|---|
| Weight |
64 g |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
14 mm |
| Package weight |
75 g |
| Packaging data |
|---|
| Weight |
64 g |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
14 mm |
| Package weight |
75 g |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Logistics data |
|---|
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
328 mm |
| Master (outer) case length |
503 mm |
| Master (outer) case height |
215 mm |
| Harmonized System (HS) code |
84733080 |
