StarTech 6ft (1.8m) DisplayPort to DVI Cable, DP to DVI-D Video Adapter Converter Cable, Replacement for DP2DVIMM6
Key Features
- DISPLAYPORT TO DVI CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) to DVI-D single-link cable connects a DVI display, monitor or projector, 1920x1200/1080p 60Hz or 4K 30Hz (HDMI clock rate); HDCP 1.4, EDID ensures compatibility between source & display
- COMPATIBILITY: Passive video converter supports DP++ sources including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: DisplayPort to DVI adapter cable has slim & flexible design w/ adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector & gold plated DVI connector ensure solid connection; Chip built into DVI connector minimizes signal loss / Supports DVI screw locking cable to prevent cable accidental disconnection
- EASY TO USE: With no software or drivers required, the DP to DVI cable/cord works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI male cable; A direct replacement for DP2DVIMM6
Description
Connect your DVI monitor to a DisplayPort®-equipped computer using a single cable

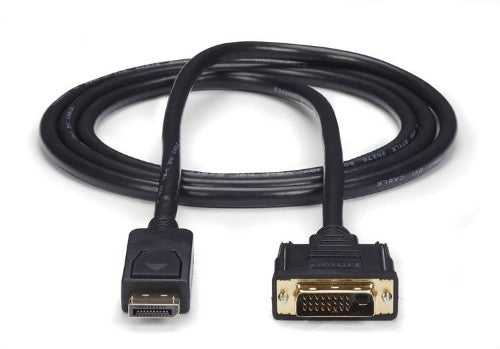

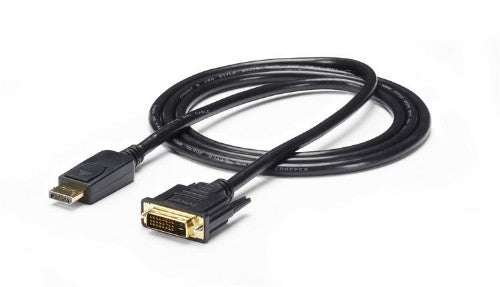

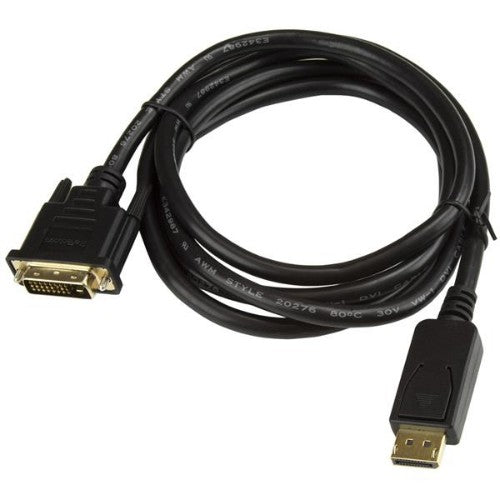

The DP2DVI2MM6 6 ft DisplayPort® to DVI Adapter Cable lets you connect a DVI Display or Projector to a DisplayPort video card/source. Providing a connection distance of 6ft, the cable features male DVI and DisplayPort connectors, allowing you to make a direct video card-to-display connection, as opposed to having to use an adapter with a separate cable.
The DP to DVI cable is a convenient, cost-effective solution for taking full advantage of your DVI display, without the expense of upgrading to a DisplayPort monitor. The cable offers high quality construction and supports high bandwidth video resolutions up to 1920x1200 or HDTV resolutions up to 1080p.
DP2DVI2MM6 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Features |
|---|
| Converter type |
Passive video converter |
| Cable length |
1.8 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Product colour |
Black |
| Jacket material |
Polyvinyl chloride (PVC) |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| Plug and Play |
Yes |
| Certification |
CE, FCC, REACH |
| Audio connector |
No |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Width |
40 mm |
| Height |
15 mm |
| Depth |
1800 mm |
| Weight & dimensions |
|---|
| Weight |
143 g |
| Package width |
183 mm |
| Package depth |
146 mm |
| Package height |
44 mm |
| Package weight |
152 g |
| Width |
40 mm |
| Height |
15 mm |
| Depth |
1800 mm |
| Packaging data |
|---|
| Package width |
183 mm |
| Package depth |
146 mm |
| Package height |
44 mm |
| Package weight |
152 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
527 mm |
| Master (outer) case length |
354 mm |
| Master (outer) case height |
210 mm |
| Products per master (outer) case |
50 pc(s) |
| Harmonized System (HS) code |
84733080 |
