StarTech 5m USB 2.0 Active Extension Cable M/F - 5 meter USB A Male to USB A Female USB 2.0 Repeater / Extender Cable - Black - 15ft , TAA (USB2AAEXT5M)
Key Features
- Fully shielded for error-free connections
- Plug-and-play, no driver required
- USB bus-powered
- Universal external power source also included
- Blue LED indicator x1 for Extension Cable and USB port connection status monitoring
Description
Extend the distance between a computer and a USB 2.0 device by 5 meters

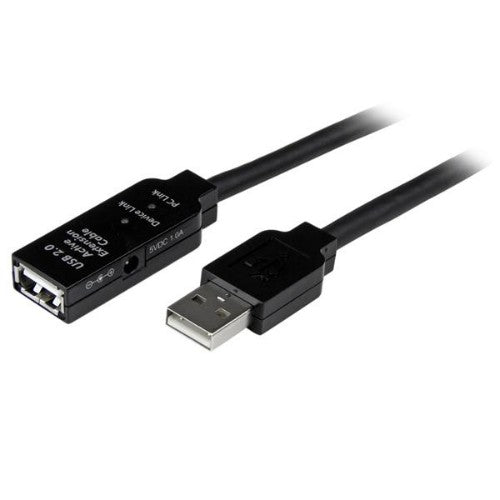

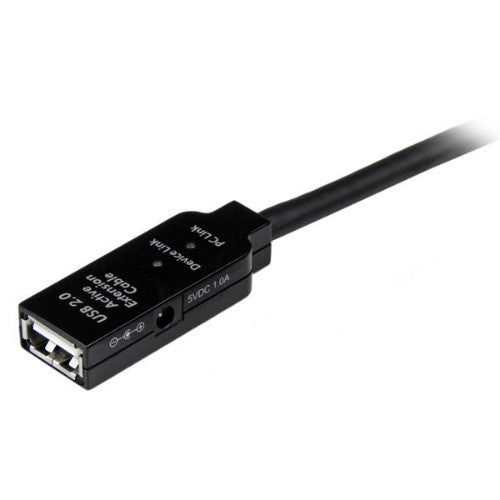

The USB2AAEXT5M 5m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 5-meters (15-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.

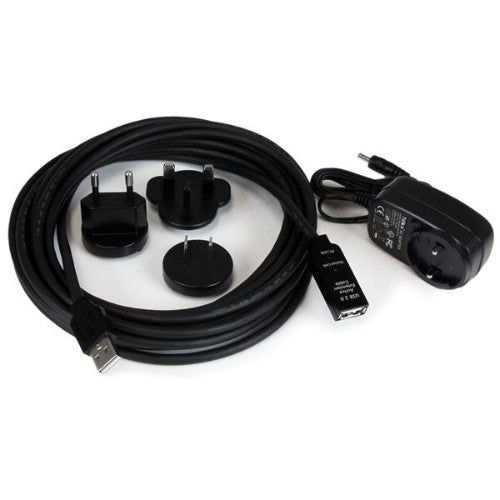

If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.
The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
Specifications
| Features |
|---|
| Connector gender |
Male/Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| Reversible connectors |
No |
| Cable shielding |
Aluminum mylar foil |
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Cable length |
5 m |
| Connector contacts plating |
Nickel |
| Product colour |
Black |
| Maximum data transfer rate |
480 Mbit/s |
| AWG wire size |
24 |
| Certification |
CE, FCC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Maximum data transfer rate |
0.48 Gbit/s |
| Output voltage |
5 V |
| Output current (max) |
1 A |
| Weight |
286 g |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Output voltage |
5 V |
| Output current (max) |
1 A |
| Weight & dimensions |
|---|
| Cable length |
5 m |
| Weight |
286 g |
| Package width |
214 mm |
| Package depth |
225 mm |
| Package height |
62 mm |
| Package weight |
472 g |
| Packaging data |
|---|
| Package width |
214 mm |
| Package depth |
225 mm |
| Package height |
62 mm |
| Package weight |
472 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
16 pc(s) |
| Master (outer) case width |
442 mm |
| Master (outer) case length |
353 mm |
| Master (outer) case height |
253 mm |
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Compliance certificates |
RoHS |
