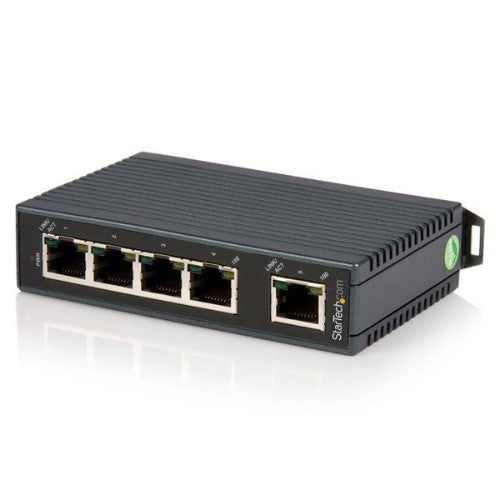

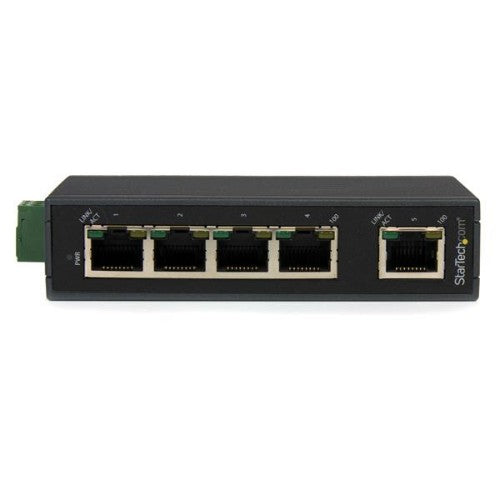

StarTech 5-Port Ethernet Switch - 10/100Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet Switch , TAA (IES5102)
Key Features
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch

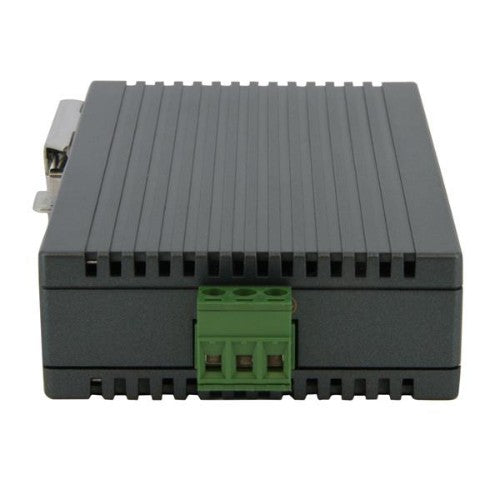

- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
- Wider range of operating temperatures, ideal for industrial environments
- IEEE 802.3az Energy-Efficient Ethernet
- Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
- Supports IEEE 802.3x flow control and back pressure
- Store-and-forward switching mechanism
Description
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time

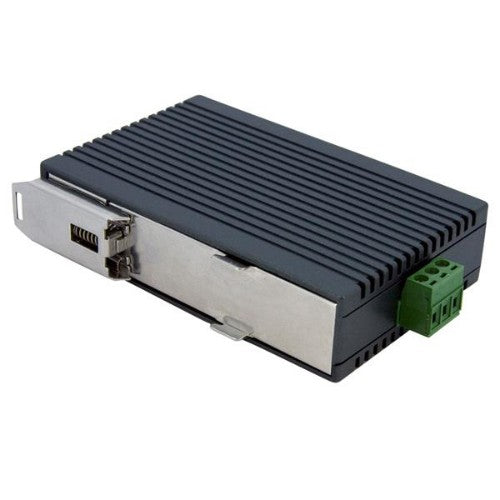

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| Jumbo frames support |
No |
| Design |
|---|
| International Protection (IP) code |
IP30 |
| Rack mounting |
Yes |
| Product colour |
Black |
| LED indicators |
Activity, Link, Power |
| Housing material |
Plastic |
| Regulatory Approvals |
EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea |
| Certification |
CE, FCC |
| Performance |
|---|
| Maximum data transfer rate |
200 Mbit/s |
| Buffer size |
56 KB |
| Maximum cable length |
100 m |
| Mean time between failures (MTBF) |
1179133 h |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power consumption (max) |
2.12 W |
| Input voltage |
12 - 48 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
25 mm |
| Depth |
70 mm |
| Height |
110 mm |
| Weight |
148 g |
| Packaging content |
|---|
| Manual |
Yes |
| Terminal block included |
Yes |
| Packaging data |
|---|
| Terminal block included |
Yes |
| Package width |
177 mm |
| Package depth |
201 mm |
| Package height |
81 mm |
| Package weight |
312 g |
| Manual |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC |
| Other features |
|---|
| Input voltage |
12 - 48 V |
| Logistics data |
|---|
| Master (outer) case width |
425 mm |
| Master (outer) case length |
388 mm |
| Master (outer) case height |
236 mm |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85176990 |
