StarTech.com HDMI Splitter 1 In 2 Out - 4k 30Hz - 2 Port - Aluminum - HDMI Multi Port - HDMI Audio Splitter (ST122HD4K)
Key Features
- 2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; Splits an HDMI video signal up to dual HD/ 4K 30Hz & 7.1 CH audio; Support for 7.1 surround sound audio
- EDID EMULATION: 1x2 4K HDMI splitter automatically passes EDID between your video source and the first detected display ensuring native settings (such as resolution and refresh rate) are configured
- LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for dual TVs/projectors/monitors/displays
- EASY SETUP: No drivers required for this 1-input 2-output UHD HDMI 1.4 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with solid aluminum housing is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Description
Split an HDMI audio/video source on two separate HDMI Displays simultaneously, with support for resolutions up to 4K
The ST122HD4K 2-port 4K HDMI splitter lets you share two HDMI displays or projectors with an HDMI-enabled audio / video source device, such as a computer, Blu-ray player or cable TV set-top box.
With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST122HD4K ensures you'll be ready to take advantage of tomorrow's display technology.
Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

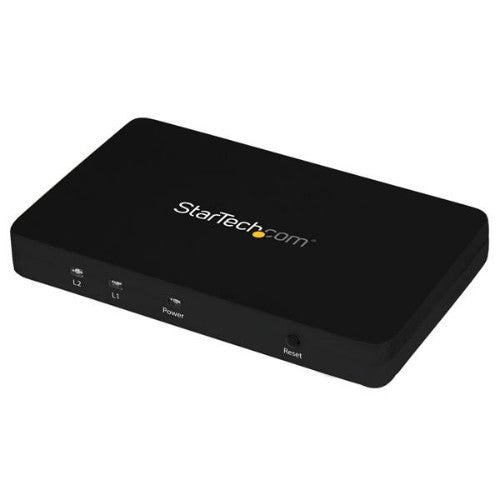

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.
The ST122HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
2 |
| Video port type |
HDMI |
| HDMI version |
1.4 |
| DC-in jack |
Yes |
| Features |
|---|
| Housing material |
Aluminium |

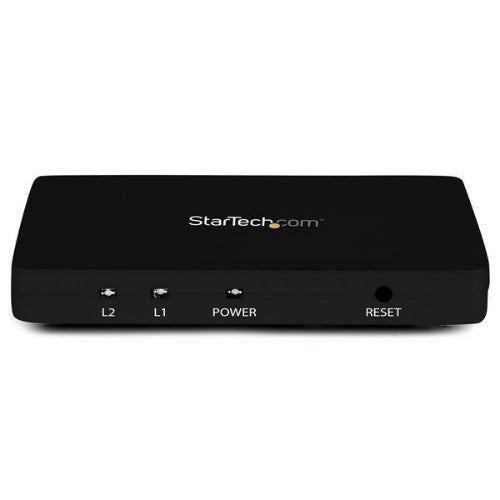

| LED indicators |
Activity, Power |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution |
4096 x 2160 pixels |
| Full HD |
Yes |
| Supported video modes |
720p, 1080p, 2160p |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS |
| Power |
|---|
| Input current |
0.35 A |
| Output current |
2 A |
| Output voltage |
5 V |
| AC input voltage |
100-240 V |
| Weight & dimensions |
|---|
| Weight |
176 g |
| Dimensions (WxDxH) |
60 x 100 x 14 mm |
| Package weight |
430 g |
| Package depth |
216 mm |
| Package width |
148 mm |
| Package height |
53 mm |
| Packaging data |
|---|
| Package weight |
430 g |
| Package depth |
216 mm |
| Package width |
148 mm |
| Package height |
53 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Video |
|---|
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution |
4096 x 2160 pixels |
| Full HD |
Yes |
| Supported video modes |
720p, 1080p, 2160p |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Indication |
|---|
| LED indicators |
Activity, Power |
| Technical details |
|---|
| Housing material |
Aluminium |
| Supported audio channels |
7.1 |
| Package width |
148 mm |
| Package height |
53 mm |
| HDMI version |
1.4 |
| Audio support |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
