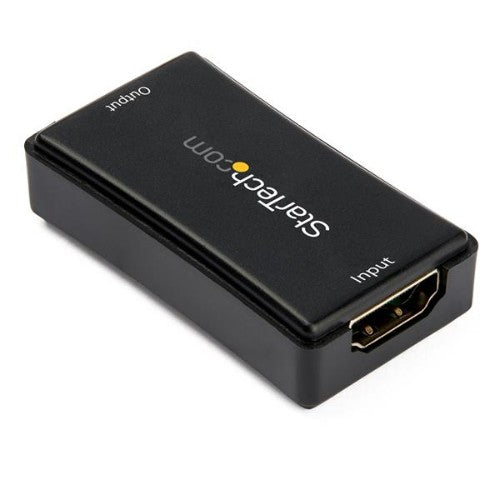

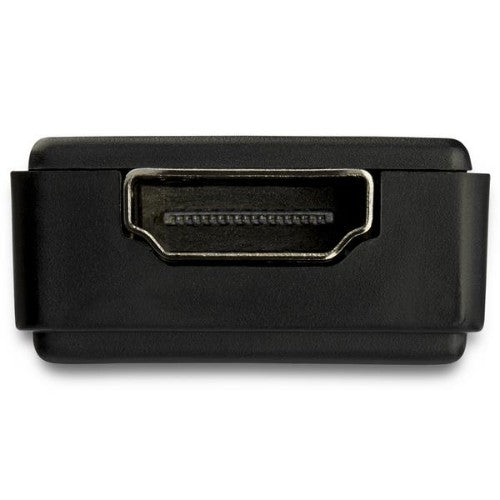

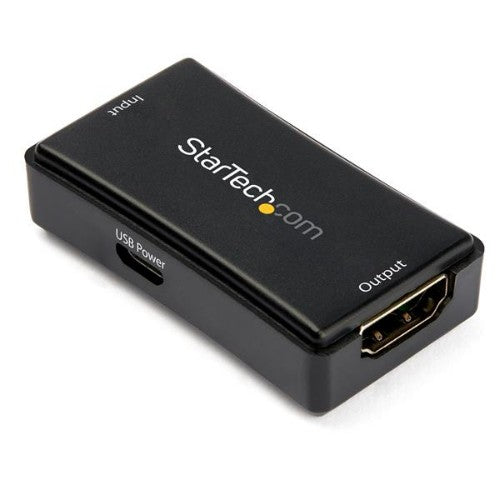

StarTech 45ft / 14m HDMI Signal Booster - 4K 60Hz - USB Powered - HDMI Inline Repeater & Amplifier - 7.1 Audio Support (HDBOOST4K2)
Key Features
- HDMI SIGNAL BOOSTER: Combine two standard-length HDMI cables into an extra-long cable supporting up to 4K 60Hz at a max total cable length of 45ft (14m), with 22.5ft (7m) from source to repeater, and 22.5ft (7m) from repeater to display
- 4K RESOLUTION SUPPORT: Enjoy astonishing picture quality with support for 4K 60Hz at up to 45 ft. away from your video source; Supports lower resolutions at greater distances such as 1080p at 164ft (50m)
- AUDIO SUPPORT: This HDMI inline repeater supports 7.1 surround sound audio for an complete AV solution
- SMALL FOOTPRINT: Designed to be compact, this HDMI amplifier is easy to setup and can be hidden away for a discreet installation, making it versatile for installation in a variety of environments
- TECHNICAL SPECIFICATIONS: HDMI 2.0 Extender, signal amplifier; Max. Resoution 4K@60Hz; HDCP 2.2; 4:4:4 Chroma subsampling; 7.1ch HDMI surround sound audio; 18Gbps Bandwidth
Description
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
Specifications
| Features |
|---|
| Material |
Plastic |
| HDCP |
Yes |
| Audio output channels |
7.1 channels |
| Rack mounting |
No |
| Daisy chain |
No |
| Maximum refresh rate |
60 Hz |
| Type |
AV repeater |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum transfer distance |
14 m |
| Bandwidth |
18 Gbit/s |
| Product colour |
Black |
| Certification |
REACH, CE, FCC |
| HDCP version |
2.2 |
| Ports & interfaces |
|---|
| USB ports quantity |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
2.0 |
| USB connector type |
Micro-USB B |
| Power |
|---|
| Power consumption (typical) |
2.5 W |

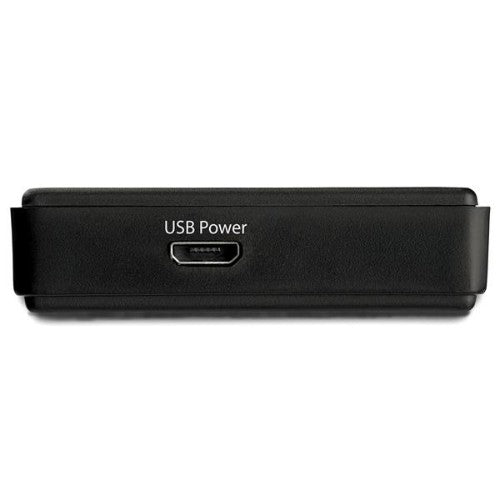

| USB powered |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
15 g |
| Width |
52 mm |
| Height |
13.7 mm |
| Depth |
28.5 mm |
| Packaging data |
|---|
| Package width |
143 mm |
| Package height |
33 mm |
| Package depth |
174 mm |
| Package weight |
113 g |

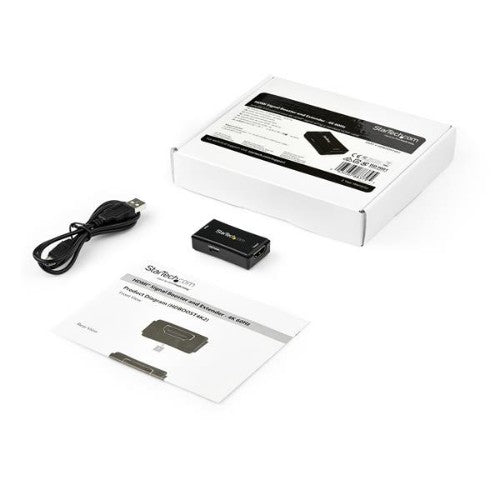

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
541 mm |
| Master (outer) case length |
550 mm |
| Master (outer) case height |
338 mm |
| Products per master (outer) case |
100 pc(s) |
