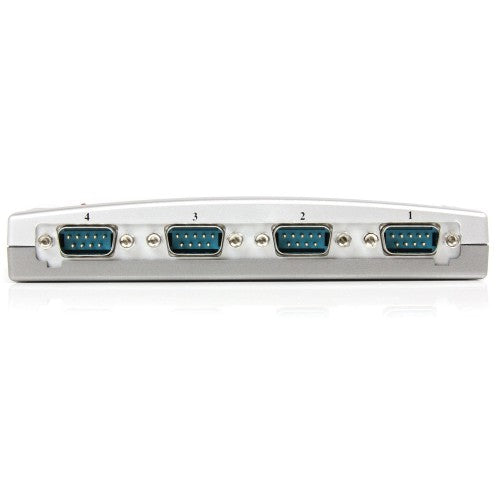

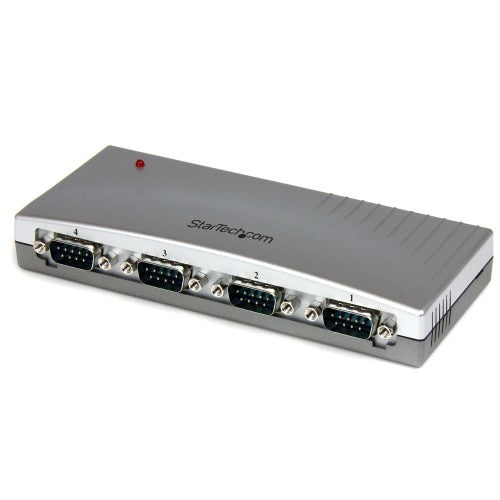

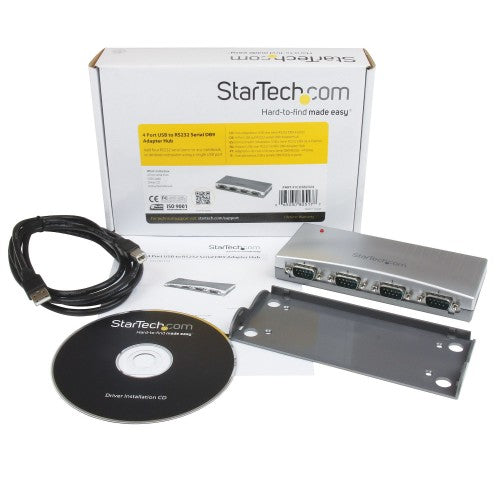

StarTech 4 Port USB to Serial RS232 Adapter - DB9M - RS232 Extension - Serial to USB , TAA (ICUSB2324)
Key Features
- Provides you with four additional RS232 serial ports
- Bus powered, no external power adapter required
- Easy Plug-and-Play installation
- Fully compliant with USB 1.1 specifications and compatible with USB 2.0
Description
Add four RS232 serial ports to any notebook or desktop computer using a single USB port
This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.
Specifications
| Ports & interfaces |
|---|
| Host interface |
USB |
| Ports quantity |
4 |
| Hub interfaces |
Serial |
| RS-232 ports |
4 |
| DC-in jack |
Yes |
| Card reader integrated |
No |
| Features |
|---|
| Product colour |
Silver |
| Plug and Play |
Yes |
| Certification |
CE, FCC, RoHS |
| Housing material |
Plastic |
| Host interface |
USB |
| Power |
|---|
| Power consumption (max) |
1.5 W |
| Power consumption (typical) |
1 W |
| Performance |
|---|
| Card reader integrated |
No |
| Certification |
CE, FCC, RoHS |
| Plug and Play |
Yes |
| Baud rate |
921.6 Kbit/s |
| Harmonized System (HS) code |
84719000 |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Windows XP Embedded |
| Weight & dimensions |
|---|
| Width |
66.5 mm |
| Depth |
150 mm |
| Height |
26 mm |
| Weight |
110 g |
| Package width |
150 mm |
| Package depth |
216 mm |
| Package height |
52 mm |
| Package weight |
378 g |
| Packaging data |
|---|
| Package width |
150 mm |
| Package depth |
216 mm |
| Package height |
52 mm |
| Package weight |
378 g |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
USB |
| Drivers included |
Yes |
| Design |
|---|
| Product colour |
Silver |
| Certification |
CE, FCC, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Master (outer) case width |
432 mm |
| Master (outer) case length |
516 mm |
| Master (outer) case height |
268 mm |
| Products per master (outer) case |
25 pc(s) |
| Harmonized System (HS) code |
84719000 |
| Technical details |
|---|
| Harmonized System (HS) code |
84719000 |
| Other features |
|---|
| Chipset |
FTDI - FT232RL |
