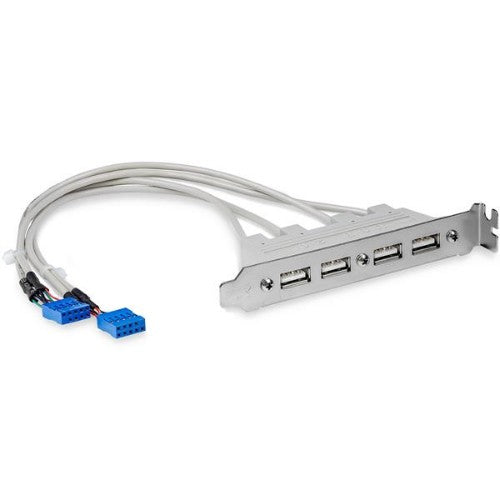

StarTech 4 Port USB A Female Slot Plate Adapter - USB panel - 4 pin USB Type A (F) (USBPLATE4)
Key Features
- 4x USB-A female ports
- 2x IDC 10-pin Female connectors
- Supports 4 or 5 pin motherboard connections
- Separate cables supports 2 rows of 4/5
Description

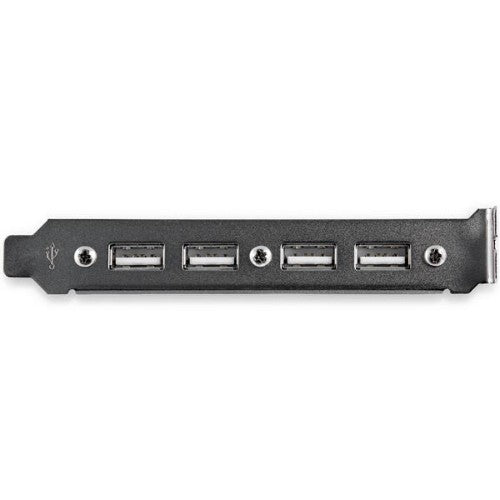

Add four USB 2.0 Ports to the back of your computer
The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.

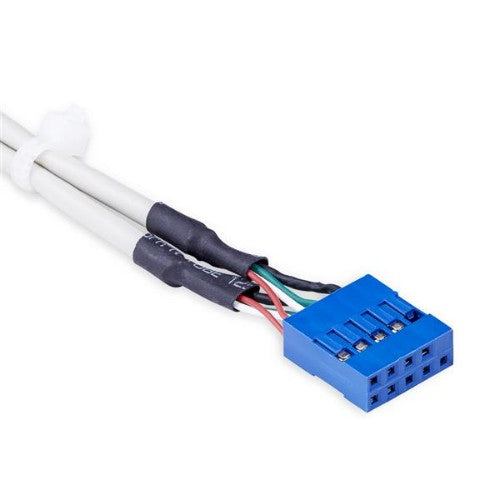

Please Note : Check your motherboard’s manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
Specifications
| Features |
|---|
| Cable length |
0.286 m |
| Certificates |
|---|
| Certification |
CE, UL, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Storage temperature (T-T) |
-5 - 80 °C |
| Operating relative humidity (H-H) |
20 - 60% |
| Weight & dimensions |
|---|
| Weight |
68 g |
| Packaging data |
|---|
| Package width |
123 mm |
| Package depth |
167 mm |
| Package height |
22 mm |
| Package weight |
73 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
