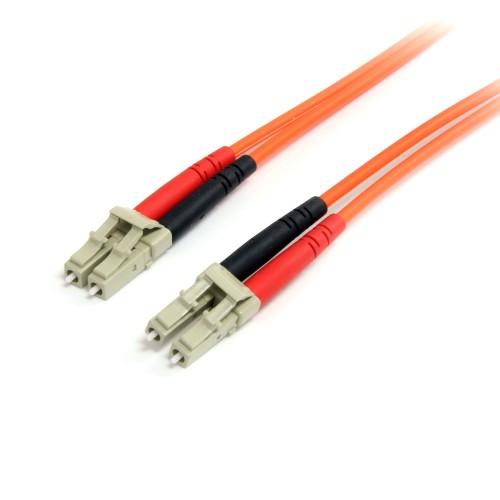

StarTech.com 3m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/LC

StarTech 3m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/LC

Key Features

• Attenuation loss meets or exceeds industry standards
• LSZH (Low-Smoke, Zero-Halogen) cable jacket
• Immune to electrical interference

Description

Connect fiber network devices for high-speed transfers with LSZH rated cable

The FIBLCLC3 3-meter (10ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with LC (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

Backed by Lifetime Warranty, our LC-LC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.

Specifications

Features
Fibre optic type	OM1
Cable length	3 m
Connector 1	LC
Connector 2	LC
Full duplex	Yes
Core diameter	62.5 µm
Cladding diameter	125 µm
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Harmonized System (HS) code	85447000
Certificates
Compliance certificates	RoHS, CE
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Weight	47 g
Cable length	3 m
Package width	198 mm
Package depth	160 mm
Package height	21 mm
Package weight	56 g
Packaging data
Package width	198 mm
Package depth	160 mm
Package height	21 mm
Package weight	56 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	85447000
Compliance certificates	RoHS, CE
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	412 mm
Master (outer) case length	436 mm
Master (outer) case height	408 mm
Products per master (outer) case	200 pc(s)
Harmonized System (HS) code	85447000
