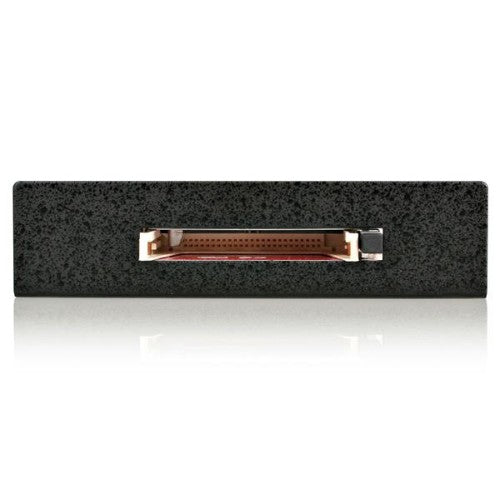

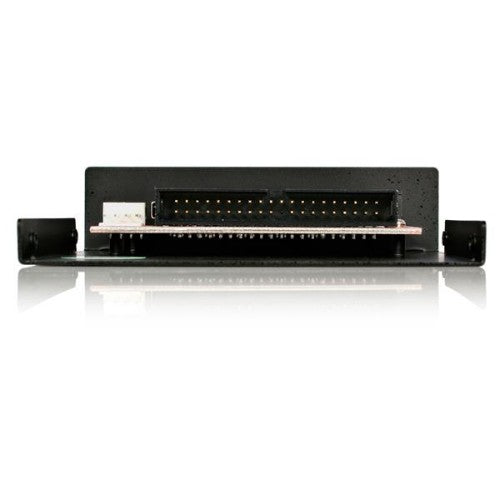

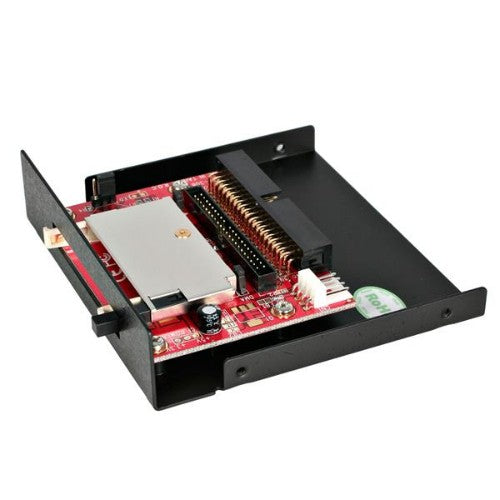

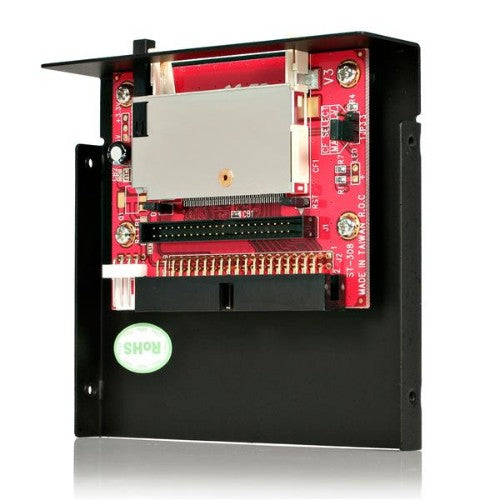

StarTech 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader , TAA (35BAYCF2IDE)
Key Features
- Quick and driver free installation into any IDE 40 pin and 44 pin slot
- Fully compatible with Compact Flash Type I/II and IBM Micro-drive
- Allows Compact flash card to be used as bootable storage
- Easy to use jumpers offer simple master/slave drive setting
- Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot
- Easily swap cards in and out with built-in push button ejector
Description
Connect a CF card to a computer through an IDE connector
This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Host interface |
IDE |
| Output interface |
CF |
| Performance |
|---|
| Data transfer rate (max) |
0.133 Gbit/s |
| Harmonized System (HS) code |
84733020 |
| Design |
|---|
| Internal |
Yes |
| Features |
|---|
| Data transfer rate (max) |
0.133 Gbit/s |
| Harmonized System (HS) code |
84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-55 - 85 °C |
| Storage temperature (T-T) |
-55 - 85 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Technical details |
|---|
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
97 mm |
| Depth |
100 mm |
| Height |
25 mm |
| Weight |
145 g |
| Package width |
143 mm |
| Package depth |
173 mm |
| Package height |
34 mm |
| Package weight |
215 g |
| Packaging data |
|---|
| User guide |
Yes |
| Package width |
143 mm |
| Package depth |
173 mm |
| Package height |
34 mm |
| Package weight |
215 g |
| Logistics data |
|---|
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case width |
360 mm |
| Master (outer) case length |
370 mm |
| Master (outer) case height |
320 mm |
| Harmonized System (HS) code |
84733020 |
| Packaging content |
|---|
| User guide |
Yes |
