StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP (MSTMDP123DP)
Key Features
- MULTI MONITOR ADAPTER FOR WINDOWS: Mini DisplayPort to Triple DisplayPort MST hub drives up to 3x DP monitors in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops / Not compatible with macOS
- DISPLAY RESOLUTION: Triple monitor mDP to DP MST hub supports resolutions up to 2x 4K 30Hz + 1x 1080p 60Hz on three screens or three ultrawide displays up to 2560x1080 60Hz
- COMPATIBILITY: 3-Port Mini DP to DisplayPort MST video splitter works with laptops, computers or desktop graphics cards /Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards
- INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office / MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
- EASY TO USE: Multiple monitor adapter natively supports 3x DP monitors; Works with Windows only and provides an easy driverless setup
- CONVENIENCE: MST (multi-stream transport) hub is equipped with a built-in 4"" (10cm) cable for video (Mini DisplayPort) and an AC power adapter / Supports LPCM digital audio
- GPU CAPABILITIES: Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)
Reasons To Buy
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use Mini DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures that your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment

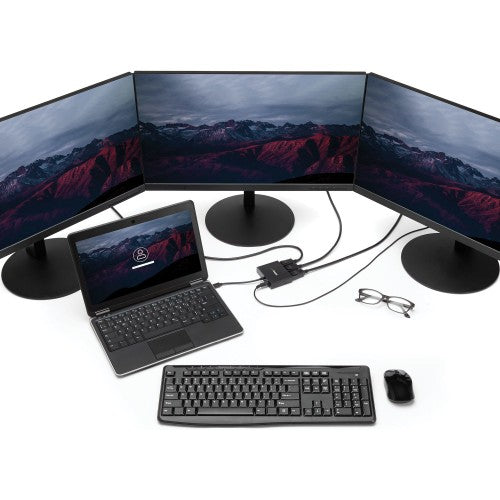

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

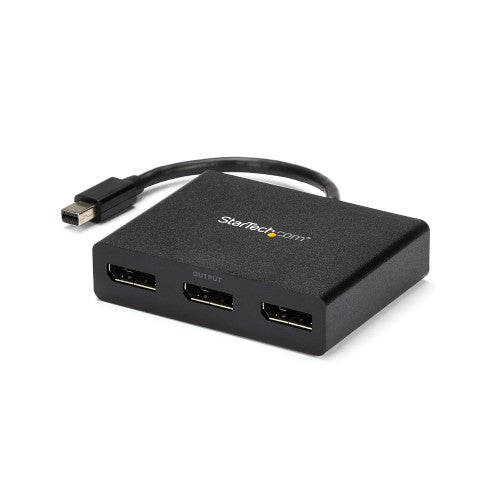

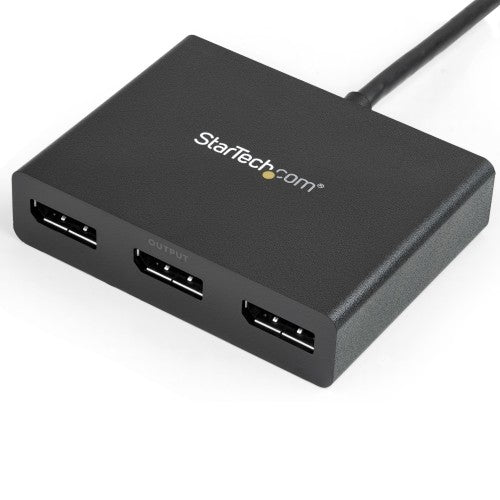

MST Hub - Mini DisplayPort to 3x DisplayPort
Use this multi-stream transport hub to connect three DP monitors to a single mDP 1.2 port
Multi Stream Transport Hub – Mini DisplayPort 1.2 naar drievoudige DisplayPort MST-hub
Connect to almost any television, monitor or projector with the support of low-cost adapters.
Description
Use this adapter to connect three independent displays to a single mDP 1.2 port
This MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
Works with any monitor, television or projector
With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
3 |
| Video port type |
Mini DisplayPort |
| Video out |
3x DisplayPort |
| Cable length |
0.19 m |
| Features |
|---|
| Housing material |
Plastic |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| Plug and Play |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS |
| Cable length |
0.19 m |
| Power |
|---|
| Input current |
0.5 A |
| Output current |
3 A |
| Power consumption (typical) |
15 W |
| Output voltage |
5 V |
| AC input voltage |
110 - 240 V |
| Weight & dimensions |
|---|
| Weight |
87 g |
| Width |
78 mm |
| Depth |
386 mm |
| Height |
20 mm |
| Package weight |
400 g |
| Package depth |
155 mm |
| Package width |
228 mm |
| Package height |
55 mm |
| Packaging data |
|---|
| Package weight |
400 g |
| Package depth |
155 mm |
| Package width |
228 mm |
| Package height |
55 mm |

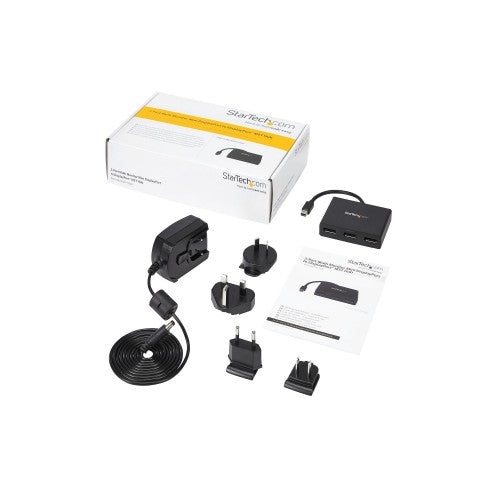

| Packaging content |
|---|
| AC adapter included |
Yes |
| Included power plug types |
AU, EU, NA, UK |
| Manual |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Video |
|---|
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Technical details |
|---|
| Housing material |
Plastic |
| Video out |
3x DisplayPort |
| Plug and Play |
Yes |
| Package width |
228 mm |
| Package height |
55 mm |
| Compliance certificates |
RoHS |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Logistics data |
|---|
| Master (outer) case width |
337 mm |
| Master (outer) case length |
496 mm |
| Master (outer) case height |
224 mm |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85176990 |
