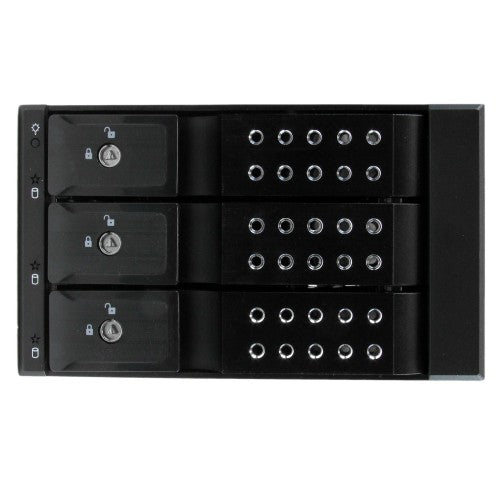

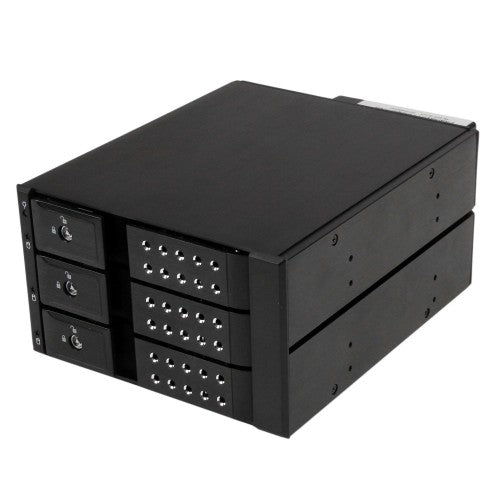

StarTech 3-Bay Hot Swap Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Aluminum Trayless Mobile Rack Backplane (HSB3SATSASBA)
Key Features
- INCREASED PRODUCTIVITY: The 3-drive hot swap backplane lets you turn two 5.25in bays into a hot-swappable interface for you to connect up to three 3.5in SATA or SAS hard drives (HDD)
- MAXIMUM COMPATIBILITY: For added versatility, the hard mobile rack backplane can interface with SATA I/II/III and SAS I/II hard drives; An ideal accommodation for enterprise system applications; Power and status LEDs for each bay

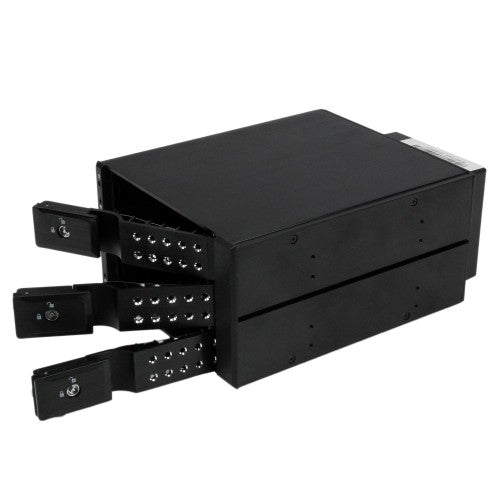

- QUICK SETUP: For a quick and secure method of installing and removing drives, this trayless SATA hot swap backplane features individual ejection levers for each bay with a key-lock design for optional added security (includes two keys)
- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 3-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this 3-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Storage |
|---|
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Number of storage drives installed |
0 |
| Supported storage drive types |
HDD |
| Number of storage drives supported |
3 |
| Maximum supported storage capacity |
12 TB |
| Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size |
3.5" |
| Hot-swap drive bays |
Yes |
| Data transfer rate |
6 Gbit/s |
| Ports & interfaces |
|---|
| Number of SATA power connectors |
2 |
| SATA power connector type |
SATA 15-pin |
| SATA host port |
Yes |
| Host ports |
3 |
| Design |
|---|
| Internal |
No |
| Product colour |
Black |
| LED indicators |
Activity, Power |
| Number of fans |
1 fan(s) |
| Performance |
|---|
| Backplanes support |
Yes |
| Weight & dimensions |
|---|
| Width |
145 mm |
| Depth |
194.1 mm |
| Height |
110 mm |
| Weight |
1.2 kg |
| Package width |
253 mm |
| Package depth |
184 mm |
| Package height |
126 mm |
| Package weight |
1.2 kg |
| Packaging data |
|---|
| Package width |
253 mm |
| Package depth |
184 mm |
| Package height |
126 mm |
| Package weight |
1.2 kg |

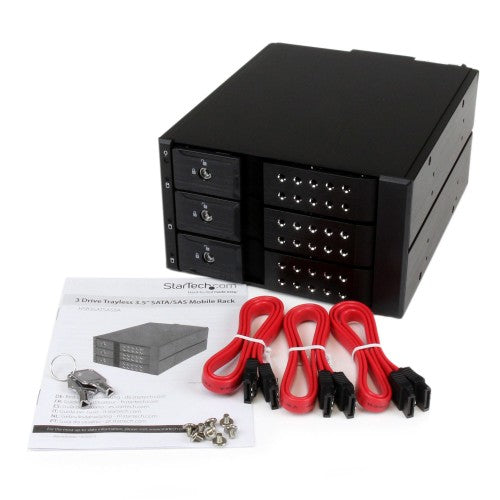

| Packaging content |
|---|
| Cables included |
SATA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Technical details |
|---|
| Harmonized System (HS) code |
84717020 |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
8 pc(s) |
| Master (outer) case width |
541 mm |
| Master (outer) case length |
391 mm |
| Master (outer) case height |
287 mm |
| Harmonized System (HS) code |
84717020 |
