StarTech 2x1 VGA + HDMI to HDMI Switch / Selector Box - 1080p Multi Video Input Automatic Switcher - 2 Computers In 1 Monitor Out , TAA (VS221VGA2HD)
Key Features
- Accommodates both VGA and HDMI input devices in a single switch with HDMI output, saving hassle and expense by reducing the need for adapters
- Effortless control with automatic and priority port selection
- Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices
- Supports video resolutions up to 1920x1200 / 1080p

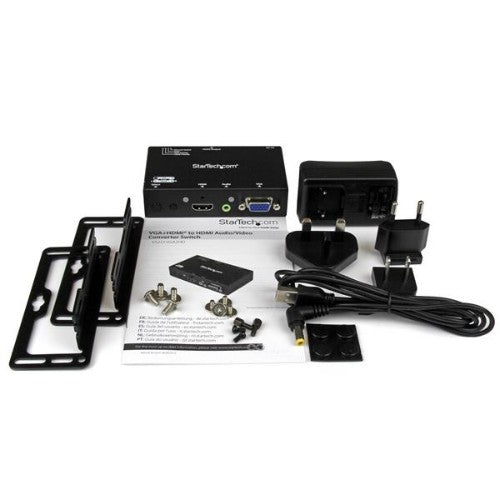

- Mounting hardware included
Description

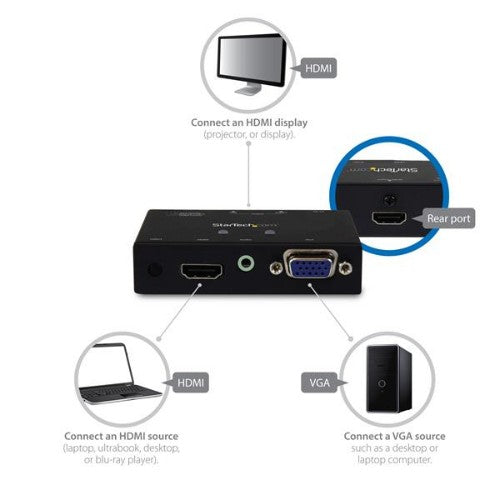

Share an HDMI display/projector between a VGA and HDMI audio/video source, with automatic and priority switching
The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.
One Switch for VGA and HDMI
The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.
Effortless Control
The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.
Focus on the Presentation, Not Boardroom Connections
This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.
If you are looking for a similar device with VGA output, please see our VS221HD2VGA.
The VS221VGA2HD is TAA compliant and backed by a StarTech.com 2-year warranty, and free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Video port type |
HDMI/VGA |
| VGA (D-Sub) ports quantity |
1 |
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
| DC-in jack |
Yes |
| Features |
|---|
| Audio output channels |
7.1 channels |
| Product colour |
Black |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Rack mounting |
Yes |
| Maximum resolution |
1290 x 1200 pixels |
| LED indicators |
Yes |
| External power adapter |
Yes |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| AC adapter input current |
0.4 A |
| AC adapter output voltage |
5 V |
| AC adapter output current |
1 A |
| Power requirements |
100 - 240 VAC, 0.4 A / 5 VDC, 2 A |
| Certificates |
|---|
| Certification |
CE, FCC |
| Weight & dimensions |
|---|
| Weight |
225 g |
| Dimensions (WxDxH) |
54 x 102 x 29 mm |
| Packaging data |
|---|
| Package width |
157 mm |
| Package height |
66 mm |
| Package depth |
239 mm |
| Package weight |
657 g |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Technical details |
|---|
| Audio support |
Yes |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
12 pc(s) |
| Master (outer) case width |
324 mm |
| Master (outer) case length |
408 mm |
| Master (outer) case height |
266 mm |
| Harmonized System (HS) code |
85176990 |
