StarTech 2U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" Network Equipment Rack & Cabinet - Heavy Duty Steel – Weight Capacity 125lb/56kg - 18" Deep Tray, Black (CABSHELFHD)
Key Features
- UNIVERSAL 19" FIT: This 2U server rack shelf is designed to fit any 19” wide server rack or enclosure including major brands like APC, Dell, Lenovo, HPE and can accommodate your data, IT, networking or other equipment up to 18” (46cm) deep
- HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy front mounted cabinet shelf ensures long term durability and supports a total weight of 125lbs/56kg making it the perfect rack shelf solution for any environment
- THOUGHTFUL DESIGN: Constructed with upward facing front and rear lips for increased structural integrity and to protect equipment from sliding off the shelf, the lip does not interfere with installation or removal of rack equipment below the shelf
- VERSATILE FUNCTIONALITY: At 18in deep, this fixed rackmount shelf is designed to work with any 19 inch cabinet or equipment rack; it provides additional storage space for mission critical hardware, and can even store your tools or audio/video accessories
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2U server rack shelf is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Add a high-capacity fixed shelf into almost any server rack or cabinet
The CABSHELFHD 2U 18in Depth Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity 2U shelf to virtually any standard 19-inch server rack or cabinet with front mount options.
This high-capacity server rack shelf is constructed using SPCC commercial grade cold-rolled steel, providing the additional strength required to hold up to 56kg (125lbs) of equipment - a perfect solution for storing larger, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
Specifications
| Features |
|---|
| Type |
Shelf |
| Rack capacity |
2U |
| Maximum weight capacity |
56.6 kg |
| Product colour |
Black |
| Certification |
CE, TAA, REACH |
| Harmonized System (HS) code |
85389099 |
| Housing material |
Steel |
| Weight & dimensions |
|---|
| Package width |
542 mm |
| Package depth |
528 mm |
| Package height |
130 mm |
| Package weight |
6.3 kg |
| Material thickness |
2.3 mm |
| Weight |
5.2 kg |
| Depth |
457.2 mm |
| Packaging data |
|---|
| Package width |
542 mm |
| Package depth |
528 mm |
| Package height |
130 mm |
| Package weight |
6.3 kg |

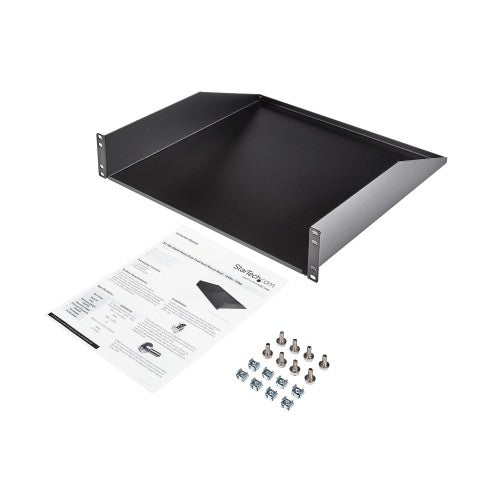

| Packaging content |
|---|

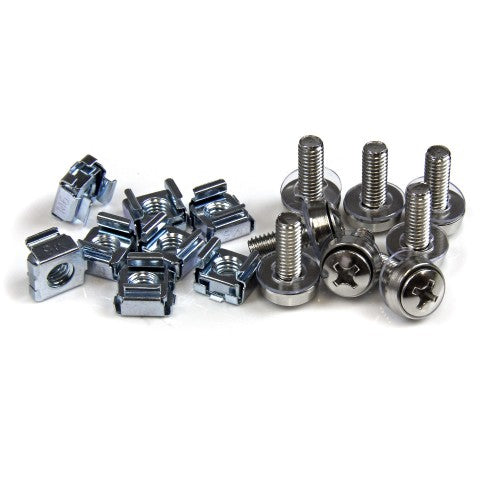

| Screws included |
Yes |
| Nuts included |
Yes |
| Number of screws |
8 |
| Number of nuts |
8 |
| Quick installation guide |
Yes |
| Screw type |
M6 |
| Technical details |
|---|
| Harmonized System (HS) code |
85389099 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
550 mm |
| Master (outer) case length |
620 mm |
| Master (outer) case height |
540 mm |
| Products per master (outer) case |
5 pc(s) |
| Harmonized System (HS) code |
85389099 |
