StarTech.com 2U DIN Rail Kit for Standard 19" Rack - Adjustable Depth Rackmount DIN Rail with Top Hat, Mini, G Rails, 27lbs/12.5kg Weight Capacity

StarTech 2U DIN Rail Kit for Standard 19" Rack - Adjustable Depth Rackmount DIN Rail with Top Hat, Mini, G Rails, 27lbs/12.5kg Weight Capacity (ADJDINKIT)

Key Features

• STANDARD COMPATIBILITY: With its universal design, this DIN rail mount fits standard 19in wide server racks or cabinets and takes up 2U of space; Max weight capacity is 27.5lb (12.5kg)
• HEAVY DUTY CONSTRUCTION: The DIN rail kit is constructed using solid cold-press steel, keeping your valuable equipment securely mounted
• VERSATILE USE: This DIN rail kit offers adjustable DIN-rail depth to accommodate a wide range of products, including DIN-rail media converters, industrial PoE switches, audio and AV equipment
• WIDE COMPATIBILITY: This rackmount rail kit includes three types of DIN rails (top-hat, miniature top-hat, and g-type), making it compatible with nearly all DIN rail equipment
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this DIN rail mounting kit is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

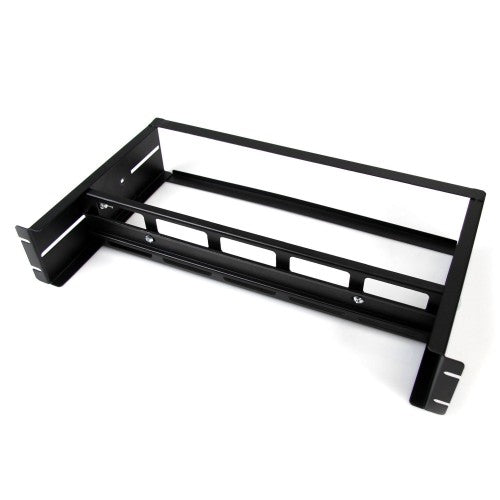

Easily mount any DIN Rail equipment in a standard 19" rack

The ADJDINKIT Adjustable Rack Mount DIN Rail Kit with Top Hat/Mini/G Rails makes mounting your DIN-rail equipment in a 19-inch server rack/cabinet or wall plate simple, without wasting space due to special bracket requirements for each piece of equipment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

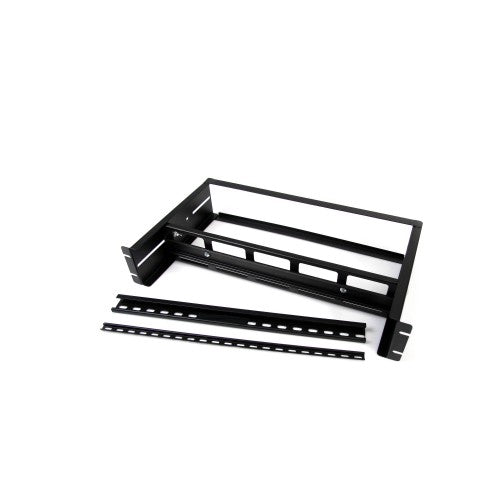

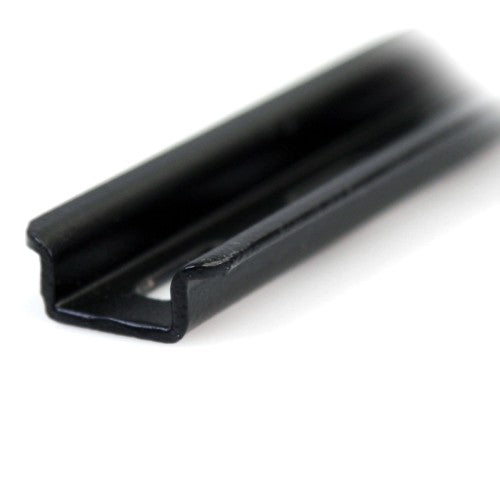

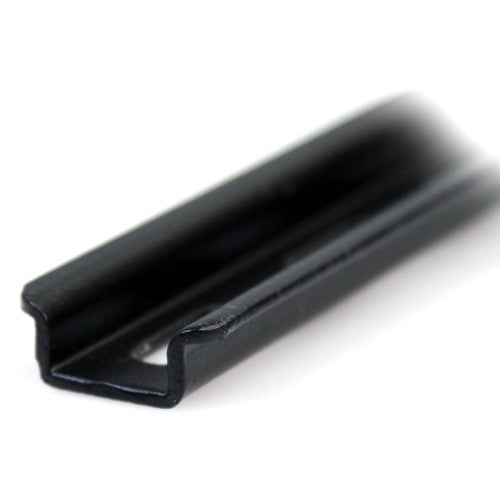

This 19-inch DIN Rail Mounting Kit includes the three most commonly used DIN rail systems: Top-Hat, Miniature Top-Hat, and G-Type.

Backed by a StarTech.com Lifetime Warranty.

Specifications

Features
Type	Rack rail
Rack capacity	2U
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	325 mm
Package depth	560 mm
Package height	135 mm
Package weight	2.6 kg
Width	482.6 mm
Weight	1.7 kg
Mounting depth (max)	22.2 cm
Height	88.9 mm
Depth	358.4 mm
Packaging data
Package width	325 mm
Package depth	560 mm
Package height	135 mm
Package weight	2.6 kg
Packaging content

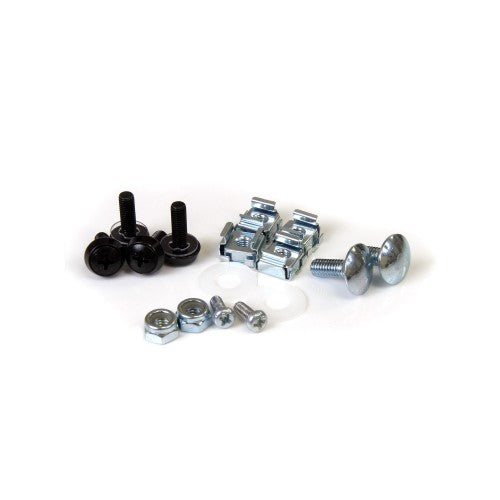

Screws included	Yes
Mounting kit	Yes
Technical details
Harmonized System (HS) code	85389099
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	325 mm
Master (outer) case length	560 mm
Master (outer) case height	135 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85389099
