StarTech 2m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/SC
Key Features
- Attenuation loss meets or exceeds industry standards
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Immune to electrical interference
Description
Connect fiber network devices for high-speed transfers with LSZH rated cable

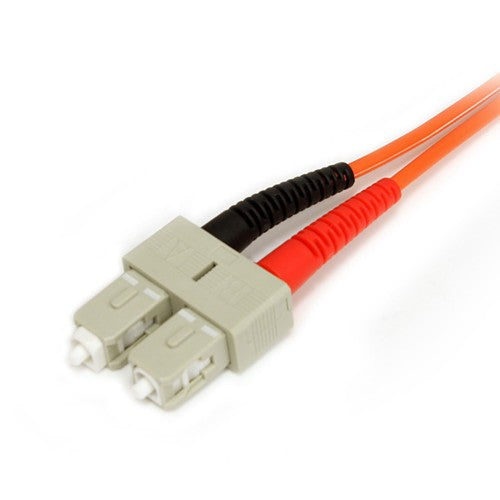

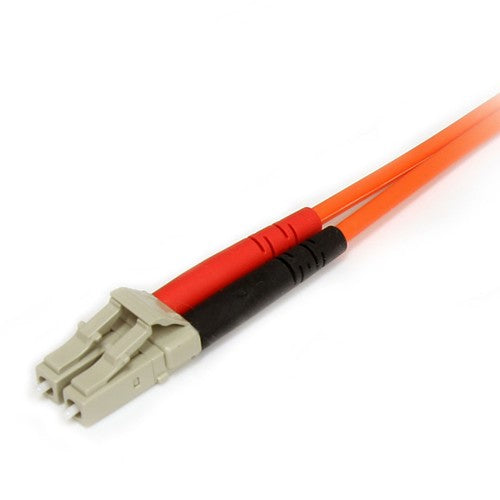

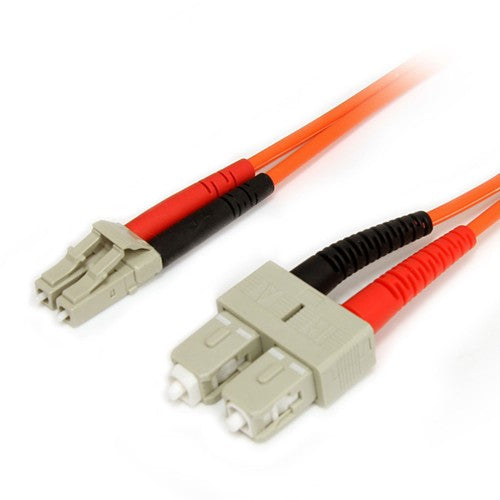

The FIBLCSC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
Specifications
| Features |
|---|
| Fibre optic type |
OM1 |
| Cable length |
2 m |
| Connector 1 |
LC |
| Connector 2 |
SC |
| Full duplex |
Yes |
| Core diameter |
62.5 µm |
| Cladding diameter |
125 µm |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Data transfer rate |
10 Gbit/s |
| Product colour |
Orange |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Harmonized System (HS) code |
85447000 |
| Certificates |
|---|
| Compliance certificates |
RoHS, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
39 g |
| Cable length |
2 m |
| Package width |
197 mm |
| Package depth |
160 mm |
| Package height |
27 mm |
| Package weight |
48 g |
| Packaging data |
|---|
| Package width |
197 mm |
| Package depth |
160 mm |
| Package height |
27 mm |
| Package weight |
48 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85447000 |
| Compliance certificates |
RoHS, CE |
| Logistics data |
|---|
| Master (outer) case width |
409 mm |
| Master (outer) case length |
410 mm |
| Master (outer) case height |
415 mm |
| Products per master (outer) case |
240 pc(s) |
| Harmonized System (HS) code |
85447000 |
